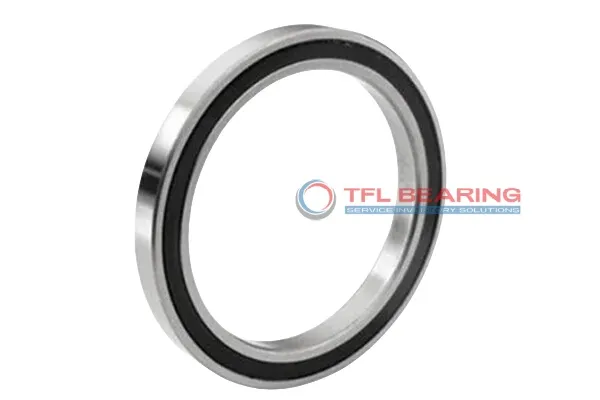

The JU090XP0 is a sealed, thin-section ball bearing with a 9-inch bore and 9.75-inch outer diameter, made from durable chrome steel. It handles radial loads up to 2226 lbf and thrust loads up to 3670 lbf, with a compact width of just 0.5 inches.
Its brass cage and sealed design ensure smooth operation and protect against contaminants. The bearing is pre-lubricated for easy maintenance and performs well in temperatures from -30°C to 110°C.
This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications like robotics or medical equipment where space is limited but performance is key.
Weighing 1.18 lbs, it’s lightweight yet robust. Compliant with RoHS standards for safe use.
"*" indicates required fields
Performance Features of JU090XP0 Bearing
JU090XP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 2226 lbf, ensuring reliable performance in various applications.
The brass cage keeps the balls aligned, reducing wear and extending service life.
With a static thrust load of 11270 lbf, it handles demanding conditions with ease.
How Does JU090XP0 Bearing Resist Wear?
JU090XP0 Bearing features a sealed design, protecting it from dust and moisture in harsh environments.
The chrome steel construction enhances durability, making it suitable for long-term use.
Its brass cage ensures smooth operation, minimising friction and wear.
With a temperature range of -30°C to 110°C, it performs reliably in varying conditions.
Engineered for Precision: JU090XP0 Bearing
JU090XP0 Bearing is precision-crafted with a thin section design, ideal for space-constrained applications.
Its ABEC-1 tolerance class ensures consistent performance in precision tasks.
The lubricated design reduces maintenance needs while enhancing smooth operation.
With a static moment load of 21130 lbf, it excels in high-stress scenarios.
Industrial Uses of JU090XP0 Bearing
JU090XP0 Bearing is commonly used in robotics, especially for joints requiring precise movement and compact design. Its thin section and sealed construction help maintain performance in tight spaces.
In automation systems, JU090XP0 Bearing supports rotary tables and indexing mechanisms, where its four-point contact design handles combined loads efficiently. The brass cage adds durability for continuous operation.
For medical imaging devices, JU090XP0 Bearing’s chrome steel rings ensure smooth rotation under moderate loads. The ABEC-1 tolerance makes it suitable for applications needing reliable but not ultra-high precision.
Where Is JU090XP0 Bearing Used?
You’ll often find JU090XP0 Bearing in packaging machinery, where its thin profile fits into conveyor rollers. The sealed design keeps contaminants out, extending service life.
In aerospace applications, JU090XP0 Bearing works well in control mechanisms due to its lightweight and moment load capacity. The inch sizing simplifies integration with US-made components.
Built for Heavy-Duty Use: JU090XP0 Bearing
JU090XP0 Bearing handles moderate radial and thrust loads in construction equipment like small cranes. Its brass cage withstands vibration better than plastic alternatives.
For stage lighting systems, JU090XP0 Bearing enables smooth pan-and-tilt movements. The lubricated seals reduce maintenance needs in vertical or overhead installations.
Automotive vs Aerospace: Applications of JU090XP0 Bearing
In automotive test rigs, JU090XP0 Bearing supports rotating sensors with minimal space requirements. The 9-inch bore accommodates various shaft sizes easily.
For satellite antenna mechanisms, JU090XP0 Bearing’s moment load rating helps maintain alignment. The temperature range covers most orbital conditions without special modifications.
