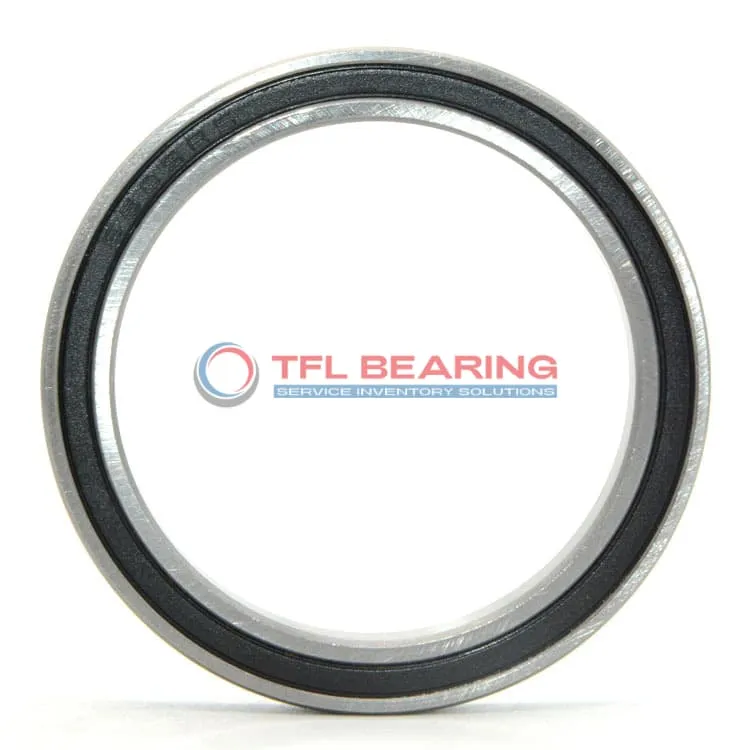

The JU055XP0 is a sealed, thin-section ball bearing measuring 5.5″ in bore and 6.25″ in outer diameter, with a slim 0.5″ width. Made from chrome steel with a brass cage, it’s built for durability and smooth operation.
This four-point contact bearing handles radial loads up to 1687 lbf and thrust loads up to 2690 lbf, making it versatile for various applications. Its sealed design keeps lubrication in and contaminants out, reducing maintenance needs.
Ideal for compact spaces, it suits robotics, medical equipment, or precision machinery where slim profiles are essential. The bearing works in temperatures from -30°C to 110°C and meets RoHS standards.
Weighing just 0.74 lbs, it’s lightweight yet robust. Interchangeable with KAYDON models, it offers a reliable replacement option. The ABEC-1 tolerance ensures consistent performance for most industrial needs.
"*" indicates required fields
How Does JU055XP0 Bearing Handle Heavy Loads?
JU055XP0 Bearing is crafted with chrome steel rings and balls, offering robust resistance to heavy loads.
Its dynamic radial load capacity reaches 1687 lbf, while the static thrust load goes up to 7060 lbf.
The brass cage ensures smooth ball alignment, reducing friction and wear.
With a sealed design, JU055XP0 Bearing maintains performance in various conditions.
It operates efficiently within a temperature range of -30°C to 110°C.
The thin-section design makes it suitable for space-constrained applications.
Common Applications of JU055XP0 Bearing
JU055XP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring longevity in dusty environments.
Where Is JU055XP0 Bearing Used?
In aerospace applications, JU055XP0 Bearing provides reliable support for control systems and actuators, thanks to its high static load capacity. Its brass cage also reduces friction, making it ideal for smooth, low-maintenance operation.
Optimized for Performance: JU055XP0 Bearing
For medical imaging devices, JU055XP0 Bearing’s chrome steel rings offer durability and precision, critical for accurate diagnostics. The ABEC-1 tolerance ensures consistent performance in sensitive equipment.
Automotive vs Aerospace: Applications of JU055XP0 Bearing
In automotive steering systems, JU055XP0 Bearing handles high thrust loads with ease, while in aerospace, its lightweight design is perfect for flight control mechanisms. The inch sizing makes it versatile for various global standards.
Practical Applications of JU055XP0 Bearing
JU055XP0 Bearing is a go-to choice for 3D printers, where its slim profile and sealed design prevent dust buildup. The dynamic radial load capacity ensures smooth movement even during prolonged use.
