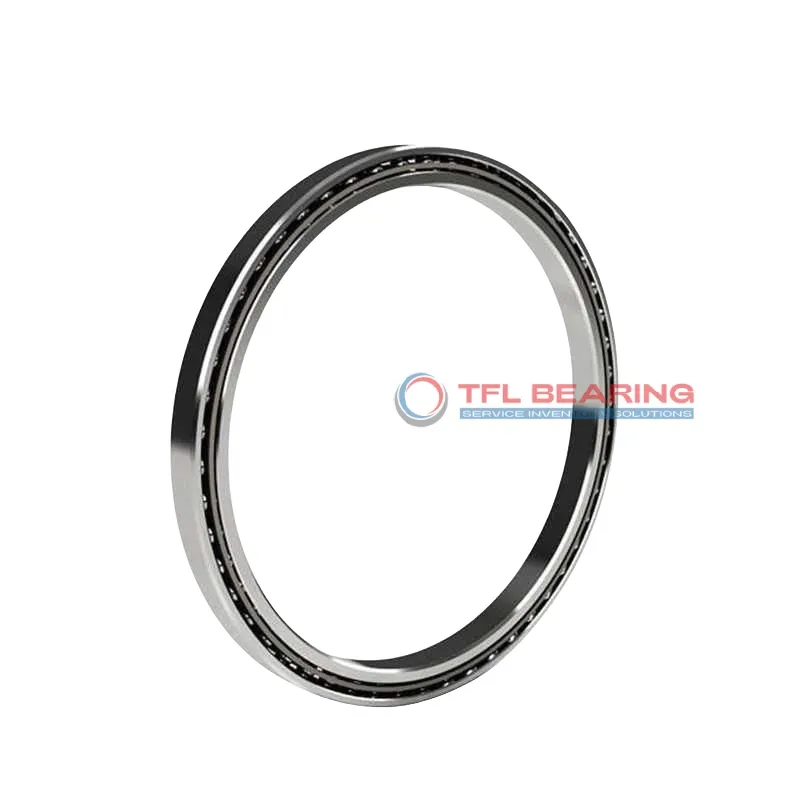

The JU050XP0K is a sealed, thin-section ball bearing with a 5″ bore and 5.75″ outer diameter, designed for four-point contact. Made from chrome steel with a brass cage, it handles radial loads up to 1600 lbf and thrust loads up to 2540 lbf.
Its compact 0.5″ width makes it ideal for space-constrained applications, while the sealed design keeps lubrication in and contaminants out. The bearing operates smoothly in temperatures from -30°C to 110°C.
This model is interchangeable with KAYDON bearings, offering a reliable alternative. Perfect for use in robotics or precision machinery where slim profiles and consistent performance are needed.
Weighing just 0.68 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards for safe use in various industries.
"*" indicates required fields
How Does JU050XP0K Bearing Handle Heavy Loads?
JU050XP0K Bearing features chrome steel rings and balls, offering robust resistance to heavy loads.
Its static thrust load capacity reaches 6460 lbf, ensuring dependable performance in demanding conditions.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a temperature range of -30°C to 110°C, it performs reliably in various environments.
Why Choose JU050XP0K Bearing for Precision Tasks?
JU050XP0K Bearing is designed with ABEC-1 tolerance, ensuring precise operation for critical applications.
The sealed construction protects against contaminants, maintaining smooth performance over time.
Its thin-section design saves space while delivering strong load-bearing capabilities.
The chrome steel construction provides durability and consistent performance under stress.
Built for Reliability: JU050XP0K Bearing
JU050XP0K Bearing’s four-point contact design distributes loads evenly, enhancing durability.
The brass cage reduces wear, ensuring long service life even in high-stress conditions.
With a dynamic radial load capacity of 1600 lbf, it handles varied operational demands.
Its sealed design keeps lubrication intact, reducing maintenance needs.
Steel vs Ceramic Bearings: Strengths of JU050XP0K Bearing
JU050XP0K Bearing’s chrome steel construction offers excellent strength and wear resistance.
The brass cage ensures smooth operation, making it suitable for precision applications.
Its static moment rating of 6950 lbf highlights its ability to handle complex loads.
The sealed design provides added protection in harsh or dusty environments.
Performance Features of JU050XP0K Bearing
JU050XP0K Bearing’s thin-section design optimises space without compromising load capacity.
The chrome steel components resist wear, ensuring consistent performance over time.
With a static radial load of 2590 lbf, it supports heavy-duty applications reliably.
Its temperature tolerance makes it versatile for both industrial and commercial uses.
Key Fields for JU050XP0K Bearing
JU050XP0K Bearing is commonly used in robotics, especially for articulated arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.
In aerospace applications, JU050XP0K Bearing provides reliable performance in control mechanisms due to its precise ABEC-1 tolerance. The brass cage reduces friction, making it suitable for high-precision movements.
For packaging machinery, JU050XP0K Bearing handles moderate radial and thrust loads efficiently. Its chrome steel rings offer durability in continuous operation, while the lubricated design minimises maintenance needs.
JU050XP0K Bearing fits well in medical imaging devices where smooth rotation is essential. The compact dimensions allow integration into tight spaces without sacrificing performance.
In conveyor systems, JU050XP0K Bearing supports guide rollers with its balanced load distribution. The inch sizing ensures compatibility with North American industrial equipment standards.
