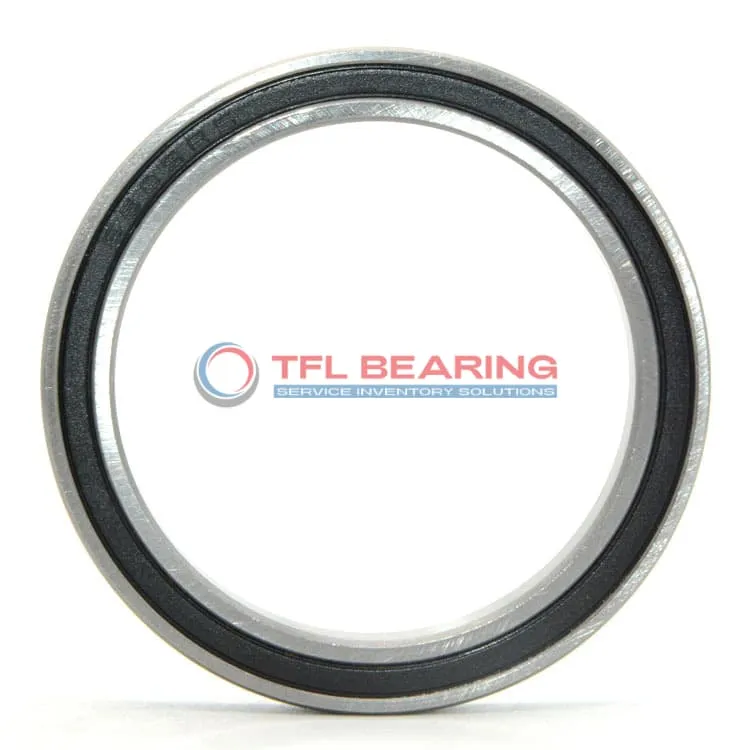

The JU047XP0 is a sealed thin-section bearing measuring 4.75″×5.5″×0.5″, made from durable chrome steel with a brass cage. It handles radial loads up to 1556 lbf and thrust loads up to 2460 lbf, suitable for moderate-speed applications.
Its compact 0.5″ width and sealed design make it ideal for space-constrained setups, while the ABEC-1 tolerance ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C.
This model is interchangeable with KAYDON bearings, offering a practical replacement option. Perfect for applications like robotics or precision machinery where slim profiles and sealed protection are needed.
Weighing just 0.65 lbs, it’s lightweight yet sturdy, with RoHS compliance for safe use. The brass cage adds durability, making it a dependable choice for long-term use.
"*" indicates required fields
Performance Features of JU047XP0 Bearing
JU047XP0 Bearing is built with chrome steel rings and balls, offering strong resistance to various loads.
Its dynamic radial load capacity reaches 1556 lbf, ensuring reliable performance in demanding conditions.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.
How Is JU047XP0 Bearing Engineered for Reliability?
JU047XP0 Bearing features a sealed design, protecting against dust and moisture.
The chrome steel construction provides durability, even under high static thrust loads of 6160 lbf.
Its ABEC-1 tolerance ensures consistent performance for precision applications.
The brass cage enhances smooth operation, making it suitable for various industrial uses.
Designed for Durability: JU047XP0 Bearing
JU047XP0 Bearing’s thin section design saves space without compromising strength.
It handles dynamic moment loads up to 2991 lbf, making it versatile for different applications.
The sealed construction minimises maintenance needs, reducing downtime.
With a static moment capacity of 6320 lbf, it excels in demanding scenarios.
Steel vs Ceramic Bearings: Strengths of JU047XP0 Bearing
JU047XP0 Bearing uses chrome steel for rings and balls, balancing cost and performance.
Its dynamic thrust load rating of 2460 lbf ensures reliable operation under stress.
The brass cage provides stability, reducing wear over time.
Lubricated for smooth performance, it is ready to use straight out of the box.
Where Is JU047XP0 Bearing Used?
JU047XP0 Bearing is commonly seen in robotics, especially in articulated arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ideal for dusty or humid environments.
In aerospace applications, JU047XP0 Bearing handles precise movements in control systems, thanks to its ABEC-1 tolerance. The brass cage ensures smooth rotation even under varying temperatures.
For packaging machinery, JU047XP0 Bearing’s four-point contact design manages both radial and thrust loads efficiently. Its chrome steel rings offer durability in high-speed production lines.
Medical imaging devices benefit from JU047XP0 Bearing’s low friction and consistent performance. The lubricated seals reduce maintenance needs in sensitive clinical settings.
