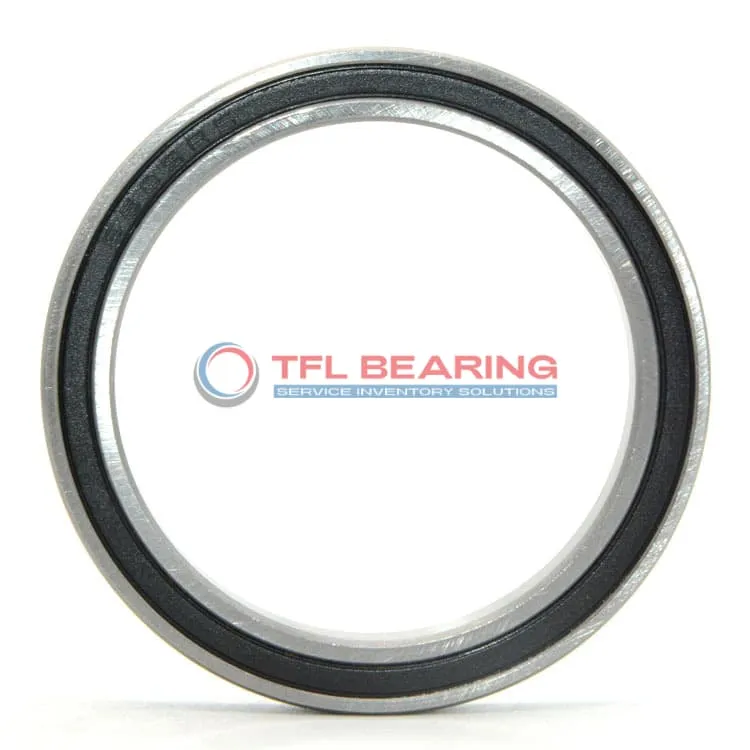

The JU045XP0 is a sealed, thin-section ball bearing measuring 4.5″ in bore and 5.25″ in outer diameter, with a slim width of just 0.5″. Made from chrome steel with a brass cage, it offers durability in a compact design.
This four-point contact bearing handles radial loads up to 1510 lbf and thrust loads up to 2380 lbf, suitable for moderate-speed applications. Its sealed design keeps lubrication in and contaminants out for reliable performance.
The bearing is interchangeable with KAYDON models, making it a practical choice for replacements. Ideal for robotics or precision machinery where space is limited but performance is key.
With a temperature range of -30°C to 110°C and RoHS compliance, it’s versatile for various industrial uses. Weighing only 0.61 lbs, it’s lightweight yet robust for its size.
"*" indicates required fields
How Does JU045XP0 Bearing Handle Heavy Loads?
JU045XP0 Bearing is built with chrome steel rings and balls, offering robust performance under heavy loads.
Its dynamic radial load capacity reaches 1510 lbf, while static thrust load goes up to 5860 lbf for reliable operation.
The brass cage ensures smooth ball alignment, reducing friction and extending bearing life.
With a sealed design, it maintains lubrication and resists contaminants in harsh environments.
What Makes JU045XP0 Bearing Suitable for Precision Tasks?
JU045XP0 Bearing features ABEC-1 tolerance class, ensuring precise and consistent performance.
The four-point contact design allows it to handle both radial and thrust loads efficiently.
Its thin-section construction saves space without compromising strength or durability.
The sealed design keeps lubrication intact, reducing maintenance needs over time.
Engineered for Reliability: JU045XP0 Bearing
JU045XP0 Bearing’s chrome steel construction provides excellent resistance to wear and corrosion.
It operates smoothly within a temperature range of -30°C to 110°C, adapting to various conditions.
The brass cage enhances stability, ensuring quiet and efficient performance.
With a static moment rating of 5710 lbf, it handles demanding applications with ease.
Why Choose JU045XP0 Bearing for Four-Point Contact?
JU045XP0 Bearing’s four-point contact design distributes loads evenly, reducing stress on components.
Its dynamic thrust load capacity of 2380 lbf ensures reliable performance in heavy-duty applications.
The sealed construction protects against dust and moisture, extending service life.
Precision-machined to inch measurements, it fits seamlessly into compatible systems.
Optimized for Efficiency: JU045XP0 Bearing
JU045XP0 Bearing’s thin-section design minimizes weight while maintaining strength.
The lubricated sealed construction ensures smooth operation with minimal maintenance.
Its brass cage reduces friction, enhancing efficiency and longevity.
With a static radial load of 2340 lbf, it delivers consistent performance under pressure.
Common Applications of JU045XP0 Bearing
JU045XP0 Bearing is widely used in robotics, particularly in articulated arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.
In aerospace applications, JU045XP0 Bearing provides reliable performance in control mechanisms due to its precise ABEC-1 tolerance. The brass cage reduces friction, making it suitable for high-precision movements.
For packaging machinery, JU045XP0 Bearing handles moderate radial and thrust loads efficiently. Its chrome steel rings offer durability in continuous operation, while the inch sizing simplifies replacement in North American equipment.
Medical imaging devices benefit from JU045XP0 Bearing’s smooth rotation and consistent torque. The lubricated design ensures quiet operation, critical for sensitive diagnostic equipment.
In semiconductor manufacturing, JU045XP0 Bearing’s minimal cross-section fits neatly into wafer handling systems. The four-point contact design accommodates combined loads common in precision positioning stages.
