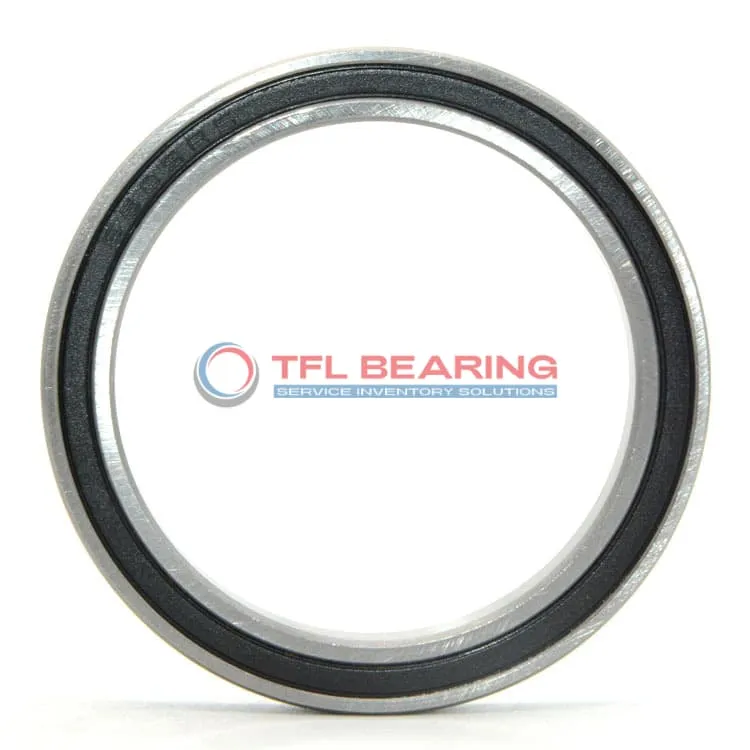

The JU040XP0 is a sealed, thin-section ball bearing measuring 4″ in bore diameter and 4.75″ in outer diameter, with a slim 0.5″ width. Made from chrome steel with a brass cage, it handles radial loads up to 1417 lbf and thrust loads up to 2210 lbf.
Its four-point contact design ensures smooth operation, while the sealed construction keeps dirt out and lubrication in. The bearing works in temperatures from -30°C to 110°C, making it suitable for various environments.
This model is interchangeable with KAYDON bearings, offering a reliable alternative for replacements. Ideal for applications requiring compact, lightweight bearings like robotics or medical equipment.
Weighing just 0.55 lbs, it’s easy to handle and install. Compliant with RoHS standards for safe use.
"*" indicates required fields
Why Choose JU040XP0 Bearing for Precision Tasks?
JU040XP0 Bearing features a four-point contact design, ensuring smooth operation under radial and thrust loads.
Its chrome steel construction provides durability, while the brass cage maintains ball alignment for consistent performance.
With a static thrust load capacity of 5260 lbf, JU040XP0 Bearing handles demanding applications effortlessly.
The sealed design protects against contaminants, making it suitable for various environments.
JU040XP0 Bearing operates within a temperature range of -30°C to 110°C, ensuring reliability in diverse conditions.
Its ABEC-1 tolerance class guarantees precision, ideal for tasks requiring accurate movement.
Common Applications of JU040XP0 Bearing
JU040XP0 Bearing works well in robotics, especially for compact joints where space is limited but smooth rotation is needed. Its thin section design fits neatly into tight spots without sacrificing performance.
In automation systems, JU040XP0 Bearing helps with precise movements in conveyor belts and assembly lines. The sealed construction keeps out dust, making it reliable for long-term use.
For medical imaging devices, JU040XP0 Bearing’s brass cage reduces friction, ensuring quiet operation during scans. The chrome steel rings also handle moderate loads without wearing out quickly.
Around the home, JU040XP0 Bearing can be found in small appliances like blenders, where its durability keeps things running smoothly. The inch sizing makes it easy to replace in older models.
