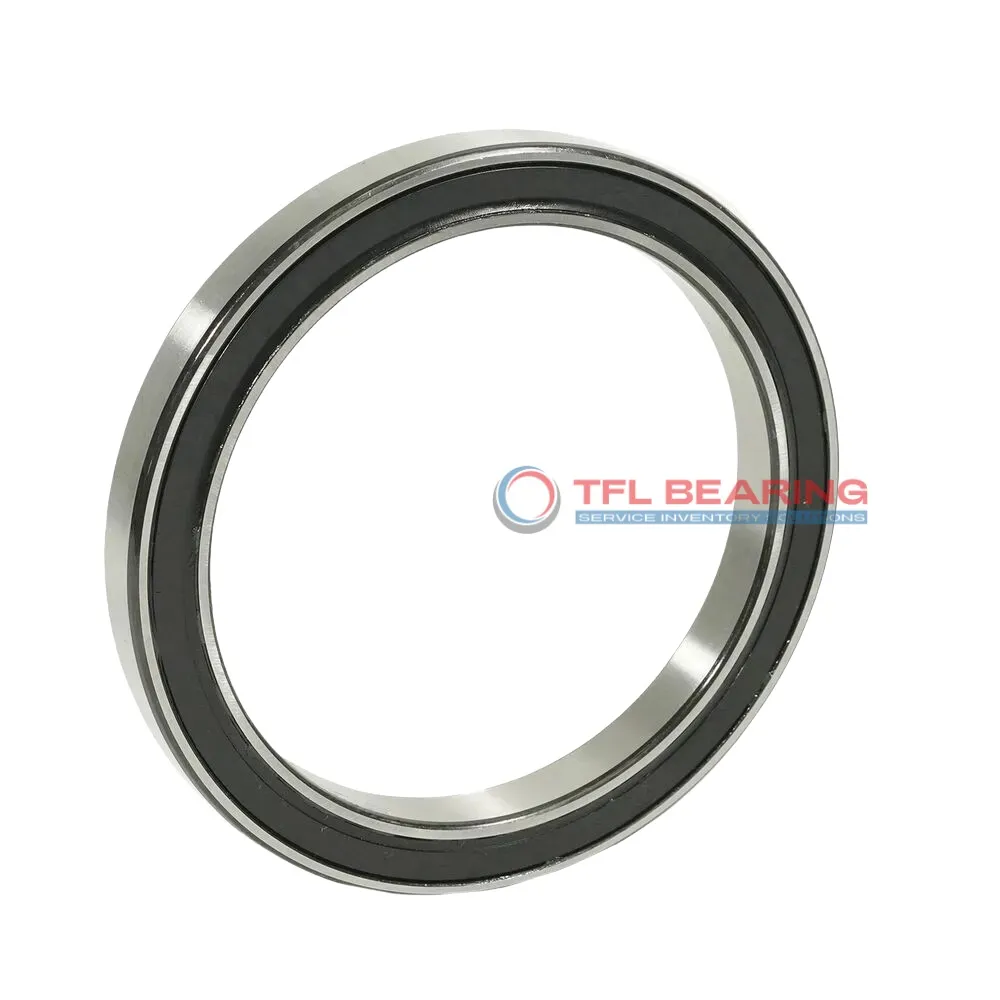

The JG200XP0 is a sealed, thin-section ball bearing with a 20″ bore and 22″ outer diameter, designed for four-point contact loads. Made from chrome steel with a brass cage, it handles dynamic radial loads up to 17293 lbf and static thrust loads up to 86180 lbf.
Its slim 1″ width makes it ideal for space-constrained applications, while the sealed design keeps lubrication in and contaminants out. The bearing operates smoothly in temperatures from -30°C to 110°C.
This model is interchangeable with KAYDON bearings, offering a reliable alternative for replacements. Suitable for use in robotics, medical equipment, or other precision machinery where moment loads are present.
Weighing 15.8 lbs, it’s robust yet compact, complying with RoHS standards for safe use.
"*" indicates required fields
How Is JG200XP0 Bearing Engineered for Reliability?
JG200XP0 Bearing features chrome steel rings and balls, ensuring durability and resistance to wear.
Its brass cage maintains precise ball alignment, enhancing performance under heavy loads.
With a dynamic radial load capacity of 17293 lbf, it handles demanding applications effortlessly.
The sealed design protects against contaminants, extending service life in harsh environments.
JG200XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.
Key Fields for JG200XP0 Bearing
JG200XP0 Bearing is commonly used in industrial robotics, where its slim design and four-point contact handle complex loads efficiently. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.
In aerospace applications, JG200XP0 Bearing supports satellite mechanisms and antenna positioning systems due to its precise inch measurements. The brass cage adds durability, making it reliable for critical operations.
For medical imaging devices, JG200XP0 Bearing’s chrome steel rings provide smooth rotation under heavy static loads. Its ABEC-1 tolerance ensures consistent performance in high-precision equipment.
Automotive steering systems benefit from JG200XP0 Bearing’s ability to manage radial and thrust loads simultaneously. The lubricated design reduces friction, enhancing driver comfort and control.
In packaging machinery, JG200XP0 Bearing’s thin section profile saves space while handling dynamic moment loads. Its compatibility with KAYDON models makes it a versatile choice for retrofitting older equipment.
