-Bearings-JG160XP0-Dimensions.webp)

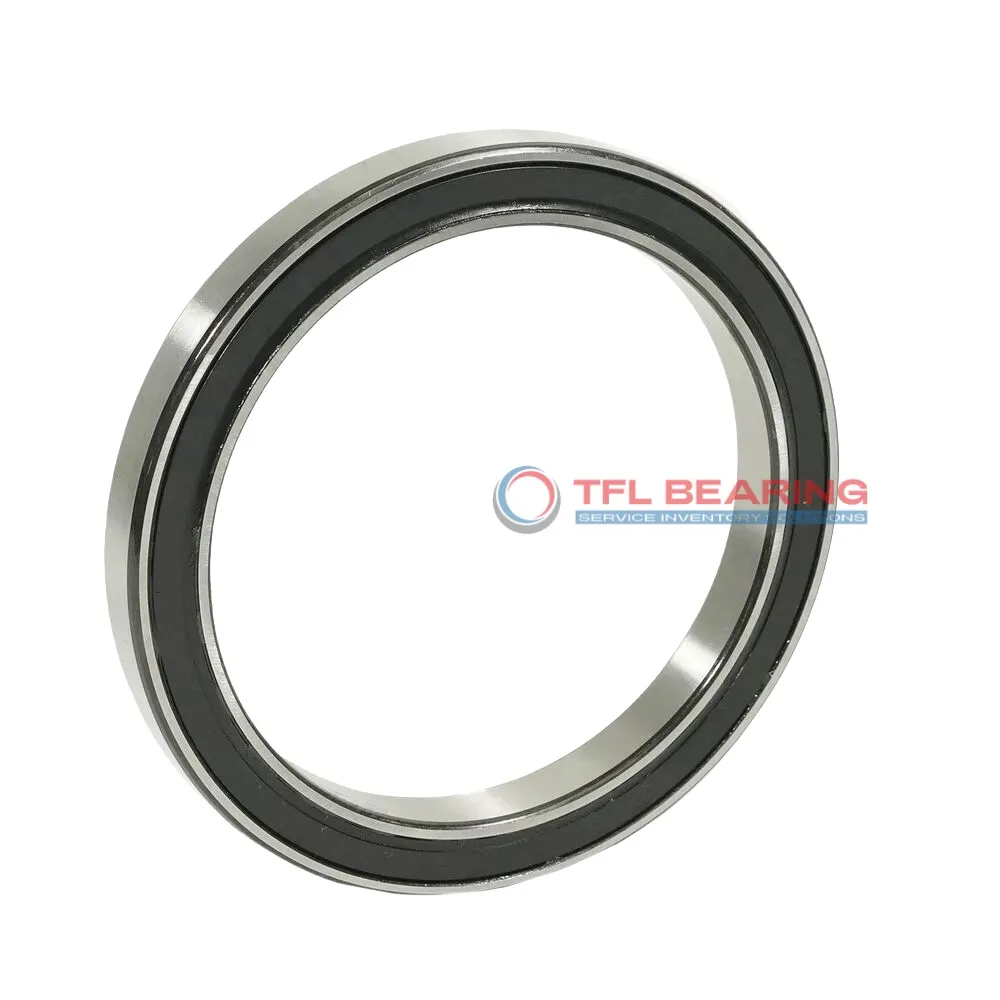

The JG160XP0 is a sealed, thin-section ball bearing with a 16″ bore and 18″ outer diameter, designed for four-point contact loads. Made from chrome steel with a brass cage, it handles dynamic radial loads up to 15425 lbf and static thrust loads up to 69770 lbf.
Its compact 1″ width and sealed design make it ideal for space-constrained applications while keeping dirt out. The bearing operates smoothly in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.
This model is interchangeable with KAYDON bearings, offering a reliable alternative. Perfect for rotary tables or robotic arms where moment loads up to 98 ft-lbf are present.
Weighing 12.3 lbs, it meets RoHS standards for safe use in various industrial settings.
"*" indicates required fields
Why Choose JG160XP0 Bearing for Precision Tasks?
JG160XP0 Bearing features a four-point contact design, ensuring high precision and smooth operation.
Its chrome steel rings and balls provide excellent durability and resistance to wear.
The brass cage maintains ball alignment, enhancing performance under heavy loads.
With a static radial load capacity of 27,910 lbf, it handles demanding applications with ease.
The sealed design protects against contaminants, extending its service life.
Operating within a temperature range of -30°C to 110°C, it suits various industrial environments.
Its compact 1″ width makes it ideal for space-constrained installations.
The ABEC-1 tolerance class ensures reliable performance in precision tasks.
Key Fields for JG160XP0 Bearing
JG160XP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life.
In aerospace applications, JG160XP0 Bearing handles moment loads in control systems and landing gear mechanisms. Its brass cage and chrome steel components provide reliable performance under varying temperatures and stresses.
For medical imaging devices, JG160XP0 Bearing’s smooth operation and low friction make it ideal for rotating components. The ABEC-1 tolerance ensures consistent accuracy in sensitive diagnostic equipment.
Automotive steering systems benefit from JG160XP0 Bearing’s ability to manage radial and thrust loads simultaneously. Its inch sizing simplifies integration with North American vehicle designs.
In packaging machinery, JG160XP0 Bearing supports high-speed conveyor rollers, where its durability reduces downtime. The lubricated design minimises maintenance needs in continuous operation environments.
