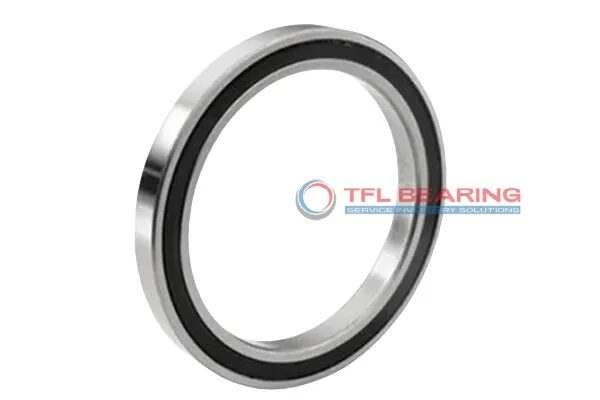

The JG110XP0 is a sealed thin-section bearing with an 11″ bore and 13″ outer diameter, built from sturdy chrome steel. It handles radial loads up to 12739 lbf and thrust loads up to 20180 lbf, making it versatile for various applications.
Its brass cage and sealed design ensure smooth operation and protection against contaminants. The bearing works reliably in temperatures from -30°C to 110°C.
With a slim 1″ width, it fits neatly into compact spaces without sacrificing strength. Ideal for machinery requiring precise movement and durability, such as robotics or medical equipment.
Weighing 8.6 lbs, it’s lightweight for its size and complies with RoHS standards for safe use. Interchangeable with KAYDON bearings for easy replacement.
"*" indicates required fields
Performance Features of JG110XP0 Bearing
JG110XP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 12739 lbf, ensuring reliable performance in demanding applications.
The brass cage keeps the balls aligned, reducing wear and extending service life.
With a maximum temperature range of -30°C to 110°C, it performs well in various environments.
How Is JG110XP0 Bearing Engineered for Reliability?
JG110XP0 Bearing features a sealed design, protecting it from dust and moisture.
The chrome steel construction provides excellent durability and corrosion resistance.
Its static thrust load capacity of 49250 lbf makes it suitable for high-load applications.
The ABEC-1 tolerance class ensures consistent performance and precision.
Built for Durability: JG110XP0 Bearing
JG110XP0 Bearing is crafted for long-lasting performance with its chrome steel components.
The brass cage enhances stability and reduces friction during operation.
It can handle dynamic moment loads up to 57347 lbf, making it versatile for various uses.
The sealed design ensures minimal maintenance and reliable operation in harsh conditions.
Steel vs Ceramic Bearings: Strengths of JG110XP0 Bearing
JG110XP0 Bearing uses chrome steel for rings and balls, providing excellent strength and wear resistance.
Its static radial load capacity of 19700 lbf ensures stability under heavy loads.
The brass cage offers smooth operation and reduces noise.
With a weight of 8.6 lbs, it balances durability and ease of use in industrial applications.
Common Applications of JG110XP0 Bearing
JG110XP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.
In aerospace applications, JG110XP0 Bearing provides reliable performance in control systems and actuators, thanks to its high dynamic load rating. The brass cage adds durability, making it suitable for frequent movement and vibration.
For medical imaging devices, JG110XP0 Bearing’s smooth operation and precise tolerances help maintain accuracy in critical components. Its chrome steel rings and balls offer consistent performance under repeated use.
In packaging machinery, JG110XP0 Bearing handles both radial and moment loads efficiently, ensuring smooth conveyor operation. The inch sizing makes it easy to integrate into existing North American equipment.
Consumer electronics like high-end printers benefit from JG110XP0 Bearing’s quiet and reliable motion control. The sealed design also prevents lubricant leakage, keeping sensitive components clean.
