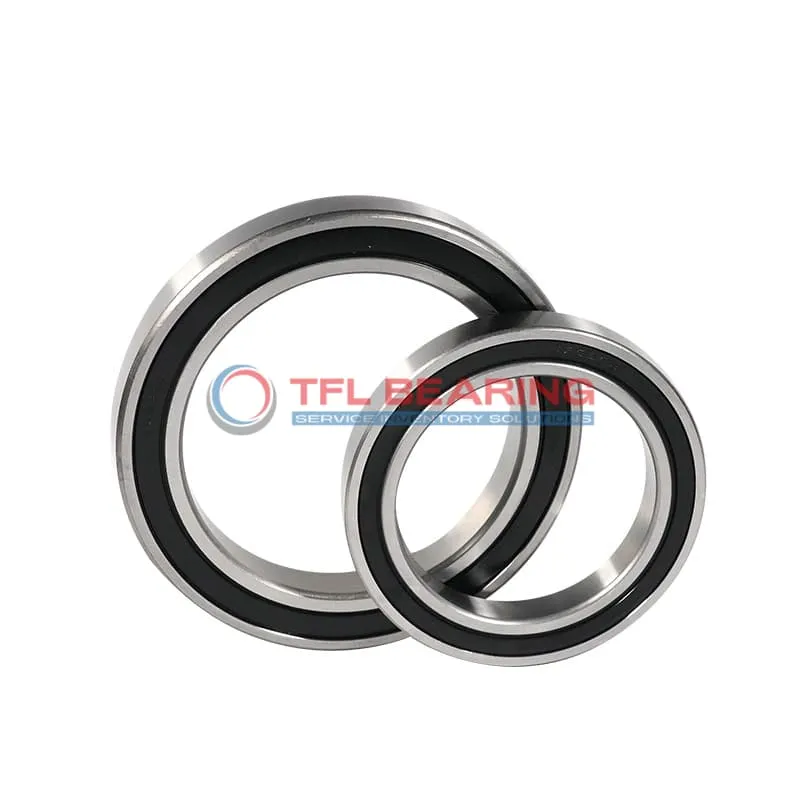

The JG070XP0 is a sealed, thin-section ball bearing measuring 7″×9″×1″, designed for four-point contact loads. Made from chrome steel with a brass cage, it handles dynamic radial loads up to 10208 lbf and static thrust loads up to 32830 lbf.
Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial environments.
This model is interchangeable with KAYDON bearings, offering a reliable alternative. Ideal for applications requiring precise motion control, such as robotics or medical equipment, where space is limited but performance is critical.
Weighing 5.8 lbs, it’s robust yet compact, meeting ABEC-1 tolerance standards. Compliant with RoHS regulations for safe use in multiple industries.
"*" indicates required fields
Performance Features of JG070XP0 Bearing
JG070XP0 Bearing is built with chrome steel rings and balls, offering robust performance in four-point contact applications.
Its dynamic radial load capacity of 10,208 lbf ensures reliable operation under demanding conditions.
The brass cage maintains ball alignment, reducing friction and wear for extended service life.
With a temperature range of -30°C to 110°C, it performs consistently in various environments.
Essential Roles of JG070XP0 Bearing
JG070XP0 Bearing is commonly used in robotics, especially in robotic arms where its four-point contact design ensures smooth movement and precise positioning. The sealed construction keeps contaminants out, making it ideal for dusty or humid environments.
In aerospace applications, JG070XP0 Bearing supports components like satellite mechanisms, where its thin section design saves space without compromising load capacity. The brass cage adds durability, even under constant motion and vibration.
For industrial automation, JG070XP0 Bearing fits well in conveyor systems and packaging machines, handling both radial and thrust loads efficiently. Its inch sizing makes it a practical choice for equipment designed to US standards.
Medical imaging devices also benefit from JG070XP0 Bearing’s reliable performance, thanks to its chrome steel construction and consistent operation. The lubricated design ensures quiet running, which is crucial in sensitive environments.
