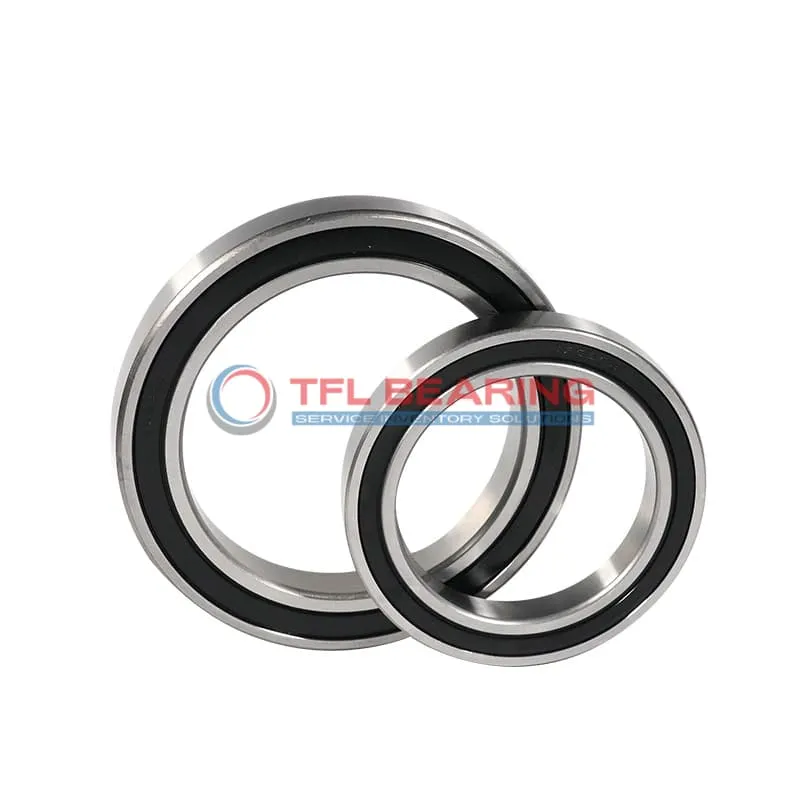

The JB045XP0 is a slim sealed ball bearing with a 4.5″ bore and 5.125″ outer diameter, made from sturdy chrome steel. It handles radial loads up to 1165 lbf and thrust loads up to 1850 lbf, suitable for moderate-speed applications.
Its sealed design keeps lubrication in and contaminants out, while the brass cage ensures smooth operation. The bearing works in temperatures from -30°C to 110°C, making it versatile for various environments.
This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications like robotics or precision machinery where space is limited but performance is key.
Weighing just 0.34 lbs, it’s lightweight yet durable. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does JB045XP0 Bearing Handle Heavy Loads?
JB045XP0 Bearing is built with chrome steel rings and balls, ensuring strength under heavy loads.
Its dynamic radial load capacity reaches 1165 lbf, while static thrust load goes up to 4880 lbf.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a temperature range of -30°C to 110°C, it performs reliably in various conditions.
Why Choose JB045XP0 Bearing for Precision Tasks?
JB045XP0 Bearing features a thin-section design, ideal for space-constrained applications.
The sealed construction protects against contaminants, ensuring smooth operation.
Its ABEC-1 tolerance class provides consistent performance for precision tasks.
The chrome steel construction offers durability without compromising on precision.
Engineered for Reliability: JB045XP0 Bearing
JB045XP0 Bearing’s single-row construction ensures stability under moment loads.
The brass cage reduces wear, enhancing the bearing’s overall reliability.
With a static moment rating of 4690 lbf, it handles demanding applications.
Its sealed design minimises maintenance, making it a practical choice.
Material Composition of JB045XP0 Bearing
JB045XP0 Bearing uses chrome steel for rings and balls, ensuring durability.
The brass cage provides smooth operation and reduces friction.
This material combination enhances performance in various load conditions.
The bearing’s design ensures long service life with minimal maintenance.
Optimized for Efficiency: JB045XP0 Bearing
JB045XP0 Bearing’s thin-section design saves space without sacrificing performance.
Its sealed construction keeps lubrication in and contaminants out.
The bearing handles dynamic thrust loads up to 1850 lbf efficiently.
With a weight of just 0.34 lbs, it offers a balance of strength and lightness.
Key Fields for JB045XP0 Bearing
JB045XP0 Bearing is commonly used in robotics, particularly for robotic arms and automation systems where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long-term reliability.
In aerospace applications, JB045XP0 Bearing provides precise movement in control systems and actuators. Its brass cage and chrome steel components offer a good balance of strength and corrosion resistance.
For medical imaging devices, JB045XP0 Bearing’s smooth operation and low friction are ideal. The ABEC-1 tolerance ensures consistent performance in sensitive equipment where precision matters.
JB045XP0 Bearing also fits well in packaging machinery, handling moderate radial and thrust loads efficiently. Its inch sizing makes it compatible with many North American industrial systems.
