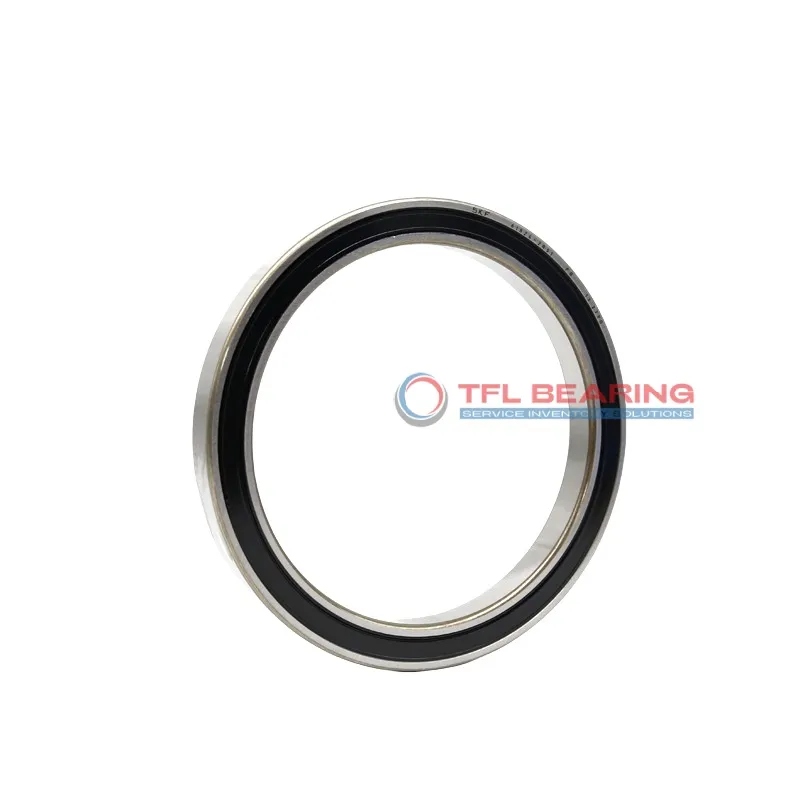

The JB035XP0 is a sealed, thin-section ball bearing with a 3.5″ bore and 4.125″ outer diameter, designed for four-point contact loads. Its compact width of 0.3125″ makes it ideal for space-constrained applications.
Made from chrome steel with a brass cage, it handles radial loads up to 1014 lbf and thrust loads up to 1590 lbf. The sealed design keeps lubrication in and contaminants out, ensuring smooth operation.
This bearing is interchangeable with KAYDON models, offering a reliable replacement option. It works well in temperatures from -30°C to 110°C, suitable for industrial machinery or robotics.
Weighing just 0.27 lbs, it’s lightweight yet durable, complying with RoHS standards for safe use.
"*" indicates required fields
How Is JB035XP0 Bearing Engineered for Reliability?
JB035XP0 Bearing features a sealed design with chrome steel rings and balls, ensuring durability in various applications.
Its brass cage maintains ball alignment, reducing friction and enhancing performance under dynamic loads.
The bearing handles static thrust loads up to 3860 lbf, making it suitable for demanding environments.
With a temperature range of -30°C to 110°C, it performs reliably in both cold and warm conditions.
Key Fields for JB035XP0 Bearing
JB035XP0 Bearing is commonly used in robotics, especially for robotic arms that require precise movement and compact design. Its thin section construction saves space without compromising on load capacity.
In aerospace applications, JB035XP0 Bearing handles moderate radial and thrust loads in control systems. The sealed design helps keep contaminants out, ensuring reliable performance in demanding environments.
For medical imaging devices, JB035XP0 Bearing’s brass cage and chrome steel construction offer smooth operation. Its ABEC-1 tolerance makes it suitable for applications where precision is key.
Automotive steering systems benefit from JB035XP0 Bearing’s ability to manage both radial and moment loads. The inch sizing ensures compatibility with many North American vehicle designs.
In packaging machinery, JB035XP0 Bearing provides durability for high-speed conveyor belts. The lubricated seals reduce maintenance needs, making it a cost-effective choice for continuous operation.
