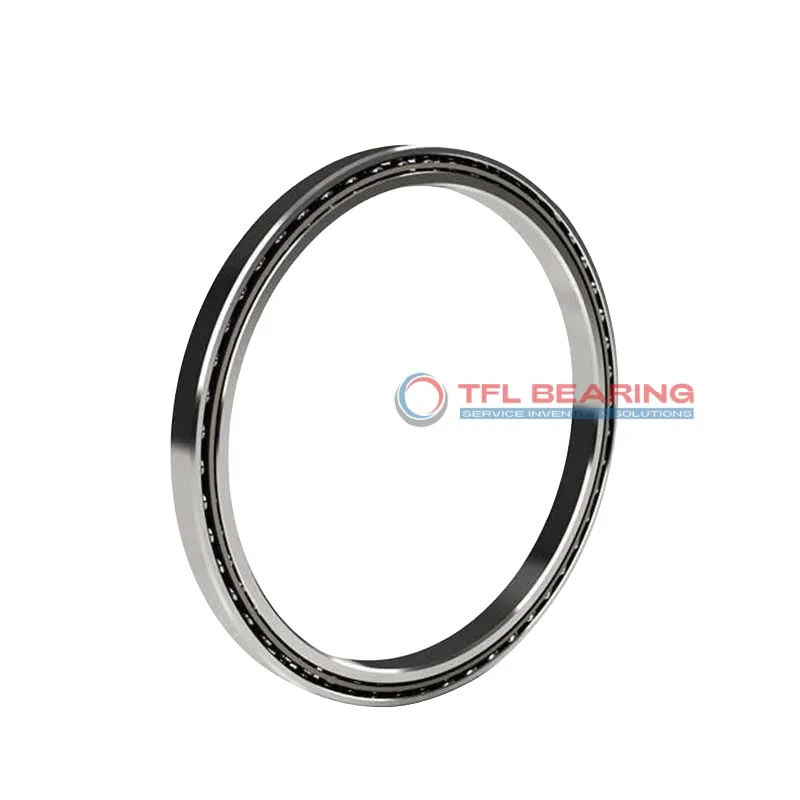

The JA070XP0 is a slim, sealed ball bearing with a 7-inch bore and 7.5-inch outer diameter, crafted from durable chrome steel. Its compact 0.25-inch width makes it ideal for space-sensitive applications, while handling radial loads up to 1046 lbf and thrust loads up to 1730 lbf.
The sealed design keeps contaminants out and lubrication in, ensuring smooth operation. The brass cage adds durability, and it performs reliably in temperatures from -30°C to 110°C.
This bearing is interchangeable with KAYDON models, offering a practical replacement option. Perfect for machinery where slim profiles and reliable performance are key, such as robotics or precision equipment.
Weighing just 0.31 lbs, it’s lightweight yet robust. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Is JA070XP0 Bearing Engineered for Reliability?
JA070XP0 Bearing features a four-point contact design, ensuring stable performance under various load conditions.
Its chrome steel rings and balls provide excellent durability and resistance to wear.
The brass cage maintains proper ball alignment, reducing friction and extending the bearing’s lifespan.
With a static thrust load capacity of 5500 lbf, it handles demanding applications with ease.
JA070XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its sealed construction keeps contaminants out, ensuring reliable performance in different environments.
Essential Roles of JA070XP0 Bearing
JA070XP0 Bearing is commonly used in robotics, particularly in articulated arms where its slim profile and sealed design help maintain precision. The brass cage ensures smooth movement, even during rapid directional changes.
Where Is JA070XP0 Bearing Used?
In aerospace applications, JA070XP0 Bearing provides reliable support for control mechanisms due to its high static load capacity. Its inch sizing makes it a natural fit for American-designed aircraft components.
Perfect Fit for Automation: JA070XP0 Bearing
JA070XP0 Bearing works well in packaging machinery, where its four-point contact design handles combined loads efficiently. The sealed construction keeps contaminants out, extending service life in dusty environments.
Light-Duty vs Heavy-Duty: Best Uses for JA070XP0 Bearing
For medical imaging tables, JA070XP0 Bearing offers quiet operation thanks to its chrome steel balls. In industrial settings, it withstands moderate moment loads in conveyor pivot points without compromising space constraints.
How Does JA070XP0 Bearing Support High-Speed Operations?
JA070XP0 Bearing is ideal for rotary stages in optical equipment, where its ABEC-1 tolerance ensures consistent positioning. The lubricated design minimises friction during continuous use.
