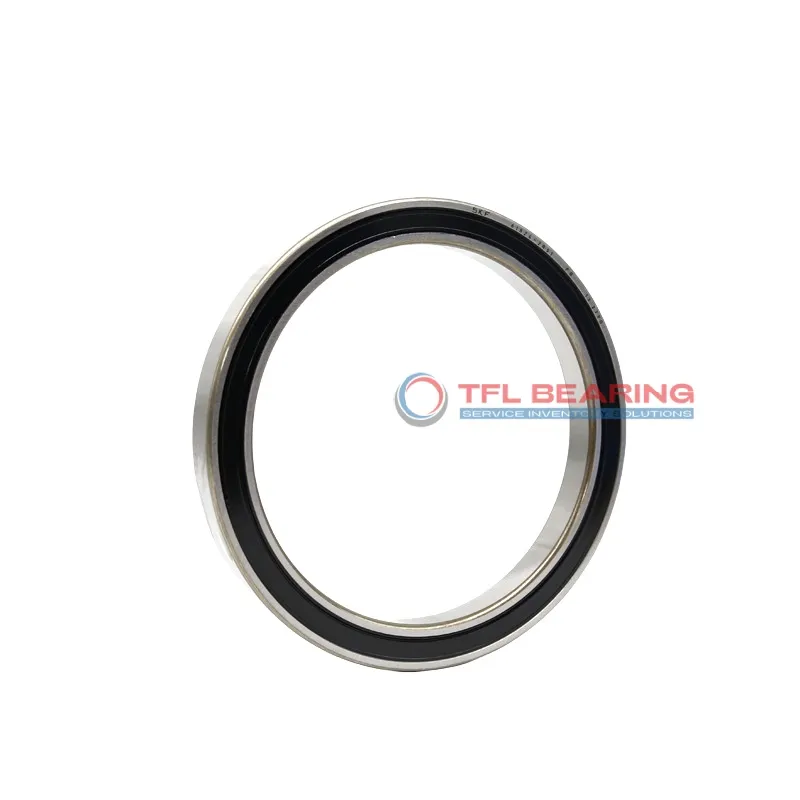

Constant Section (CS) Bearings JA035XP0

The JA035XP0 is a slim, sealed ball bearing measuring 3.5″ in bore and 4″ in outer diameter, with a compact width of just 0.25″. Made from chrome steel with a brass cage, it’s built for durability and smooth operation.

This four-point contact bearing handles radial loads up to 701 lbf and thrust loads up to 1110 lbf, making it versatile for various applications. Its sealed design keeps lubrication in and contaminants out, ensuring reliable performance.

With a temperature range of -30°C to 110°C, it’s suitable for both industrial and precision equipment. The bearing is interchangeable with KAYDON models, offering a practical replacement option.

Ideal for applications requiring thin-section bearings, such as robotics or medical devices, where space is limited but performance is critical. Weighing only 0.17 lbs, it’s lightweight yet robust.

Get A Free Quote

"*" indicates required fields

Description

Features

Application

Q&A

Product Parameters

Part Number JA035XP0
Brand TFL
Interchangeable KAYDON
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Sealed
Bore Dia 3.5"
Bore Dia Tolerance -0.0008"– 0"
Outer Dia 4"
Outer Dia Tolerance -0.0006"– 0"
Width 0.25"
Width Tolerance +.000 –.005"
Thin Section Bearings Type Reali-Slim Sealed Bearings
Series JA 1/4" x 1/4"
Tolerance Class ABEC-1
Radial Clearance 0.0000 – 0.0005"
External Diameter On Inner Ring 3.648"
Internal Diameter On Outer Ring (Small Side Face) 3.856"
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 701 lbf
Static Radial Load 1140 lbf
Static Thrust Load 2850 lbf
Static Moment 2130 lbf
Temperature Range -30°C to 110 °C
Moment Load Rating 986 lbf
Dynamic Thrust Load 1110 lbf
Lubrication Lubricated
RoHS Compliant
Weight 0.17 lbs
price（$） 102.66

Constant Section (CS) Bearings JA035XP0 Drawing.dwg

Download DWG Download PDF

Features

How Does JA035XP0 Bearing Handle Heavy Loads?

JA035XP0 Bearing features a four-point contact design, making it suitable for handling both radial and thrust loads.
Its chrome steel construction ensures durability, with a static thrust load capacity of 2850 lbf.
The brass cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
With a temperature range of -30°C to 110°C, it performs reliably in various conditions.

Application

How Does JA035XP0 Bearing Improve Performance?
JA035XP0 Bearing is commonly used in robotics, where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring smooth operation in automated systems.

In aerospace applications, JA035XP0 Bearing handles precise movements in control mechanisms due to its ABEC-1 tolerance. The brass cage reduces friction, making it reliable for high-performance environments.

For medical imaging devices, JA035XP0 Bearing’s chrome steel rings provide durability under constant use. Its compact size and sealed design make it ideal for sensitive equipment requiring minimal maintenance.

In packaging machinery, JA035XP0 Bearing supports high-speed conveyor belts with consistent radial load handling. The lubricated design ensures long service life even in demanding production lines.
