-Bearings-JA030XP0-Dimensions.webp)

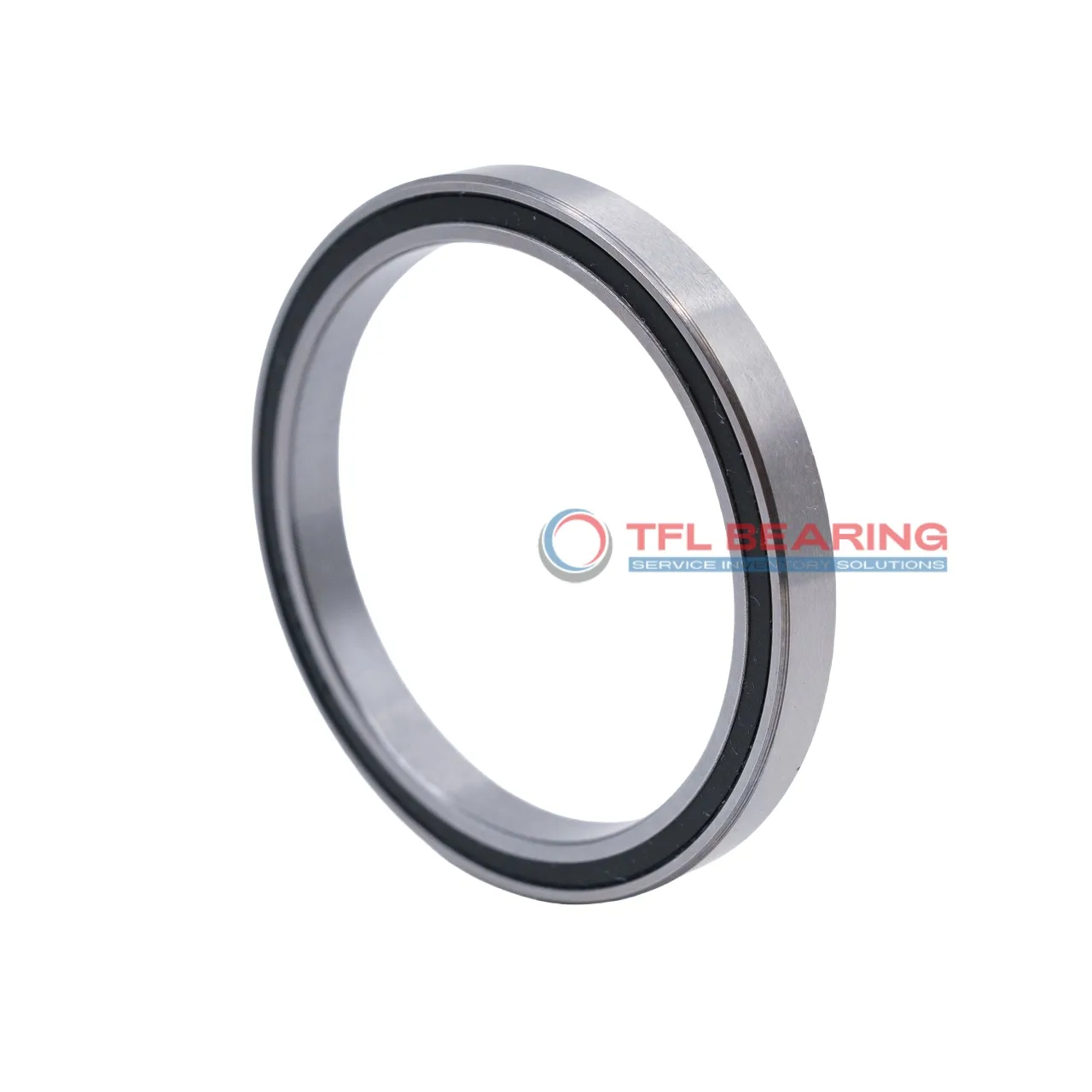

The JA030XP0 is a slim sealed bearing with a 3-inch bore and 3.5-inch outer diameter, designed for four-point contact loads. Its compact 0.25-inch width makes it ideal for tight spaces, while the chrome steel construction ensures durability.
This bearing handles dynamic radial loads up to 643 lbf and static thrust loads up to 2470 lbf, suitable for moderate-speed applications. The brass cage and sealed design provide smooth operation and reduce maintenance needs.
Its ABEC-1 tolerance and precise fit make it a reliable choice for machinery requiring accuracy. The bearing works well in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.
Interchangeable with KAYDON models, it’s a practical option for replacements in robotics or precision equipment. Weighing just 0.14 lbs, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does JA030XP0 Bearing Handle Heavy Loads?
JA030XP0 Bearing is constructed with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 643 lbf, ensuring reliable performance in demanding applications.
The brass cage maintains ball alignment, reducing wear and extending the bearing’s service life.
With a static thrust load of 2470 lbf, it provides stability under high-pressure conditions.
Why Choose JA030XP0 Bearing for Precision Tasks?
JA030XP0 Bearing features a sealed design, protecting it from contaminants in precision environments.
Its ABEC-1 tolerance class ensures consistent performance in applications requiring high accuracy.
The thin section design saves space while maintaining strength and durability.
With a temperature range of -30°C to 110°C, it performs reliably in various conditions.
Engineered for Precision: JA030XP0 Bearing
JA030XP0 Bearing’s four-point contact design distributes loads evenly, enhancing precision and stability.
The chrome steel construction provides excellent wear resistance, ensuring long-term reliability.
Its sealed design keeps lubrication in and contaminants out, reducing maintenance needs.
With a static moment rating of 1600 lbf, it handles complex load combinations effectively.
Industrial Uses of JA030XP0 Bearing
JA030XP0 Bearing is commonly used in robotics, particularly in robotic arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring smooth movement in dusty environments.
What Makes JA030XP0 Bearing a Preferred Choice?
In automation systems, JA030XP0 Bearing excels in conveyor belt mechanisms due to its four-point contact design, which handles both radial and thrust loads efficiently. Its brass cage adds durability, making it suitable for continuous operation.
Perfect Fit for Automation: JA030XP0 Bearing
JA030XP0 Bearing works well in 3D printers, where precision and minimal friction are key. The chrome steel rings and balls provide reliable performance, even during high-speed printing tasks.
Medical vs Industrial: Where JA030XP0 Bearing Excels
JA030XP0 Bearing is ideal for medical imaging devices, offering quiet operation and low maintenance. In industrial settings, it supports light-duty machinery where space constraints are a concern.
Built for Heavy-Duty Use: JA030XP0 Bearing
JA030XP0 Bearing handles moment loads in packaging equipment, ensuring stability during rapid movements. Its ABEC-1 tolerance class balances cost and performance for general industrial applications.
