-Bearings-JA020XP0-Dimensions.webp)

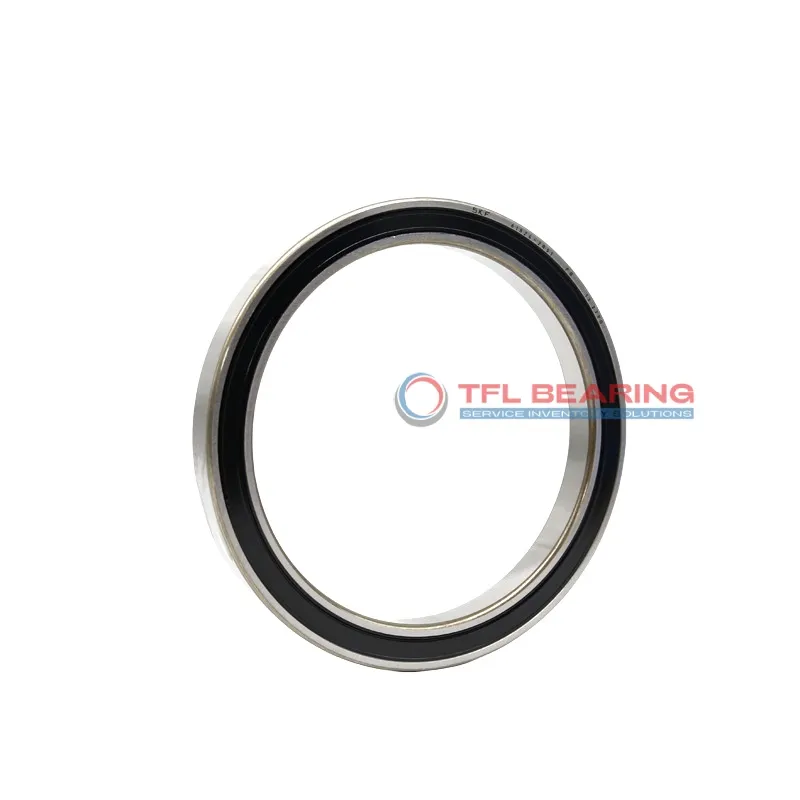

The JA020XP0 is a compact sealed bearing with a 2″ bore and 2.5″ outer diameter, featuring a slim 0.25″ width. Made from chrome steel with a brass cage, it offers reliable performance in tight spaces.
This four-point contact bearing handles radial loads up to 514 lbf and thrust loads to 790 lbf, suitable for moderate-speed applications. Its sealed design keeps lubrication in and contaminants out.
The thin-section construction makes it ideal for space-constrained applications like robotics or medical equipment. It’s interchangeable with KAYDON bearings for easy replacement.
With a temperature range of -30°C to 110°C and ABEC-1 precision, it balances performance and affordability. The lightweight design (0.1 lbs) reduces overall system weight while maintaining strength.
The JA020XP0’s sealed construction protects against dust and moisture, extending service life in challenging environments. Its brass cage provides smooth operation and reduces friction.
This bearing excels in applications requiring precise motion control, such as rotary tables or scanning equipment. The four-point contact design handles combined loads efficiently.
Compliant with RoHS standards, it’s a safe choice for various industries. The pre-lubricated design simplifies maintenance while ensuring smooth operation from installation.
With a moment load rating of 434 ft-lbf, this bearing stabilises rotating components effectively. The chrome steel construction offers good wear resistance for long-term use.
Its slim profile (1/4″ cross-section) fits where standard bearings can’t, making it perfect for compact machinery. The sealed design is particularly useful in cleanroom applications.
The bearing maintains performance across a wide temperature range, suitable for both indoor and outdoor equipment. Interchangeability with KAYDON models provides flexible sourcing options.
The JA020XP0’s precision engineering ensures smooth rotation with minimal vibration. Its static moment capacity of 770 lbf makes it robust against off-centre loads.
Ideal for applications requiring both radial and thrust load capacity, like camera gimbals or small turntables. The brass cage dampens vibration for quieter operation.
Weighing just 0.1 lbs, it reduces rotational mass in sensitive equipment. The bearing comes pre-lubricated for immediate use, simplifying installation procedures.
This bearing’s thin-section design maximises space efficiency without sacrificing load capacity. The sealed construction is maintenance-free in many applications.
Suitable for oscillating motions in instrumentation or aerospace components. The chrome steel balls provide smooth rolling action with consistent performance.
With clearances tightly controlled (0-0.0005″), it offers precise movement for critical applications. The ABEC-1 tolerance class ensures reliable performance for most industrial needs.
"*" indicates required fields
Performance Features of JA020XP0 Bearing
JA020XP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 514 lbf, making it suitable for various industrial applications.
The brass cage ensures smooth operation by keeping the balls aligned and reducing friction.
With a width of just 0.25″, it fits into compact spaces without compromising performance.
JA020XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its sealed design protects against contaminants, ensuring long-lasting reliability.
The bearing’s ABEC-1 tolerance class provides consistent precision for smooth motion.
It is pre-lubricated, reducing the need for frequent maintenance.
Key Fields for JA020XP0 Bearing
JA020XP0 Bearing is commonly used in robotics, especially for compact joints in robotic arms where space is limited but precision is key. Its thin-section design fits neatly into tight spaces without sacrificing load capacity.
In automation systems, JA020XP0 Bearing helps maintain smooth motion in conveyor belts and assembly line equipment. The sealed construction keeps out dust and debris, reducing maintenance needs in busy industrial settings.
For medical imaging devices, JA020XP0 Bearing’s chrome steel rings and brass cage offer reliable performance in high-precision applications. Its ABEC-1 tolerance ensures consistent operation in sensitive equipment.
In consumer electronics like printers, JA020XP0 Bearing supports moving parts with minimal friction. The inch sizing makes it compatible with many North American-designed devices.
