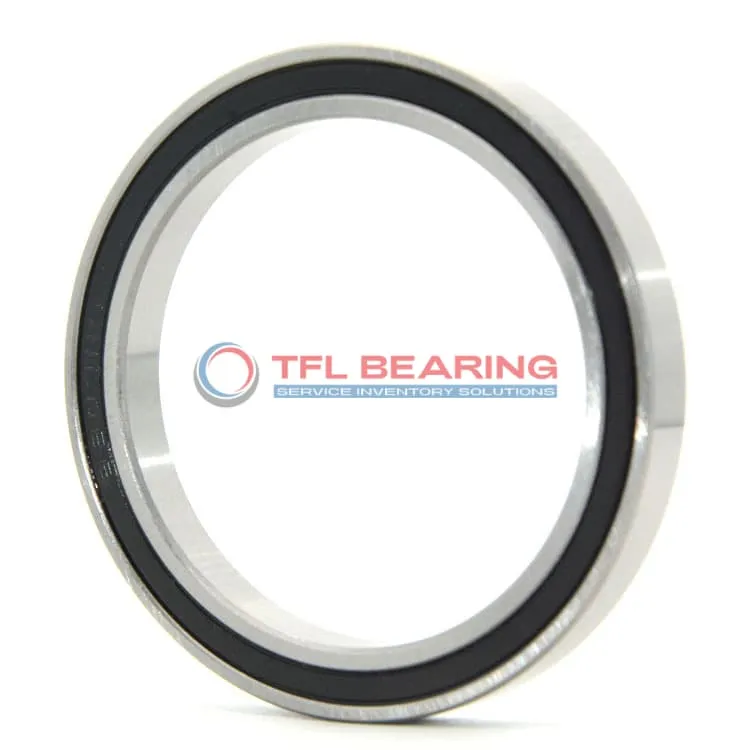

Constant Section (CS) Bearings J11008CP0

The J11008CP0 is a slim, sealed ball bearing with a 110mm bore and 126mm outer diameter, crafted from durable chrome steel. Its compact 8mm width makes it ideal for space-constrained applications.

Designed for radial loads up to 1177 lbf, it features a brass cage for smooth operation and long service life. The sealed design keeps lubrication in and contaminants out.

This bearing is interchangeable with KAYDON models, offering a reliable replacement option. It performs well in temperatures from -30°C to 110°C.

Suitable for precision equipment where slim profiles are needed, such as robotics or medical devices. Compliant with RoHS standards, it weighs just 0.15kg for easy handling.

SEND INQUIRY

"*" indicates required fields

Description

Features

Application

Q&A

Product Parameters

Part Number J11008CP0
Brand TFL
Interchangeable KAYDON
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Bore Dia 110 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 126 mm
Outer Dia Tolerance -0.018mm to 0
Width 8 mm
Width Tolerance +.000 –.127mm
Thin Section Bearings Type Reali-Slim mm Metric Bearings
Series 8 mm
Tolerance Class ABEC-1
Radial Clearance 0.0000 – 0.0005"
External Diameter On Inner Ring 116.55 mm
Internal Diameter On Outer Ring (Small Side Face) 119.42 mm
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 1177 lbf
Static Radial Load 2562 lbf
Temperature Range -30°C to 110 °C
ISO Radial 1870 lbf
Lubrication Lubricated
RoHS Compliant
Weight 0.15 Kg
price（$） 98.3

Constant Section (CS) Bearings J11008CP0 Drawing.dwg

Download DWG Download PDF

Features

Performance Features of J11008CP0 Bearing

J11008CP0 Bearing is crafted with chrome steel rings and balls, offering reliable radial load capacity up to 1177 lbf.

Its brass cage ensures smooth ball movement, enhancing durability and reducing friction.

The sealed design protects against contaminants, making it suitable for various environments.

With a temperature range of -30°C to 110°C, it performs well in diverse conditions.

Application

Essential Roles of J11008CP0 Bearing
J11008CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The sealed construction helps keep out contaminants, ensuring long service life.

In medical imaging devices, J11008CP0 Bearing provides smooth rotation for components like CT scanner gantries, thanks to its chrome steel rings and brass cage. Its ABEC-1 tolerance ensures reliable operation in sensitive environments.

For consumer electronics, J11008CP0 Bearing fits well in compact devices like high-end printers, where low friction and quiet operation are key. The metric sizing makes it easy to integrate into various European and Asian designs.

Automotive applications include electric vehicle components, where J11008CP0 Bearing handles radial loads in small motors and actuators. Its lubricated design reduces maintenance needs, making it a practical choice for long-term use.
