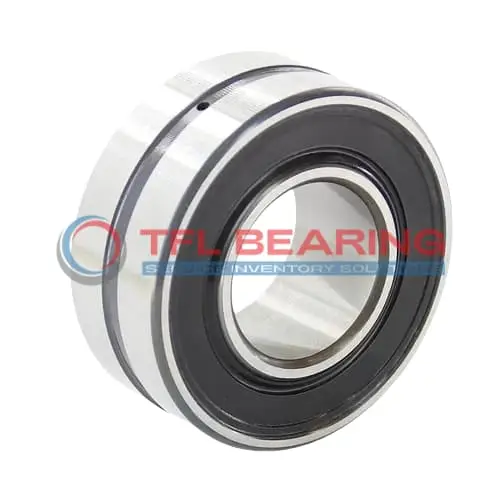

The BS2-2216-2CS2/C4GEM9 is a double-row spherical roller bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 54629 lbf and operates smoothly at speeds up to 2100 RPM.
Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and performs well in temperatures from -30°C to 200°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where reliability is key.
Weighing 2.4kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of BS2-2216-2CS2/C4GEM9 Bearing
BS2-2216-2CS2/C4GEM9 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 54629 lbf, making it suitable for heavy-duty applications.
The double seal design protects BS2-2216-2CS2/C4GEM9 Bearing from contaminants, ensuring smooth operation in harsh environments.
With a maximum speed of 2100 rpm, it balances efficiency and durability.
BS2-2216-2CS2/C4GEM9 Bearing’s C4 radial clearance allows for thermal expansion, maintaining performance in high-temperature conditions.
The steel cage keeps the rollers aligned, reducing wear and extending service life.
BS2-2216-2CS2/C4GEM9 Bearing operates in temperatures from -30° to 200°C, making it versatile for various industrial uses.
Its lubrication groove and holes ensure consistent lubrication, reducing maintenance needs.
Industrial Uses of BS2-2216-2CS2/C4GEM9 Bearing
BS2-2216-2CS2/C4GEM9 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The spherical roller type adapts well to misalignment, ensuring smooth operation in rugged conditions.
In automotive applications, BS2-2216-2CS2/C4GEM9 Bearing supports drivetrain components, offering durability under high radial and axial forces. Its double seal design helps keep contaminants out, extending service life in demanding environments.
For automation systems, BS2-2216-2CS2/C4GEM9 Bearing provides reliable performance in robotic arms and conveyor belts. The C4 radial clearance allows for thermal expansion, making it suitable for high-speed operations.
In wind turbines, BS2-2216-2CS2/C4GEM9 Bearing’s chrome steel construction withstands variable loads and harsh weather. The lubrication groove ensures consistent performance, even in remote or hard-to-access locations.
