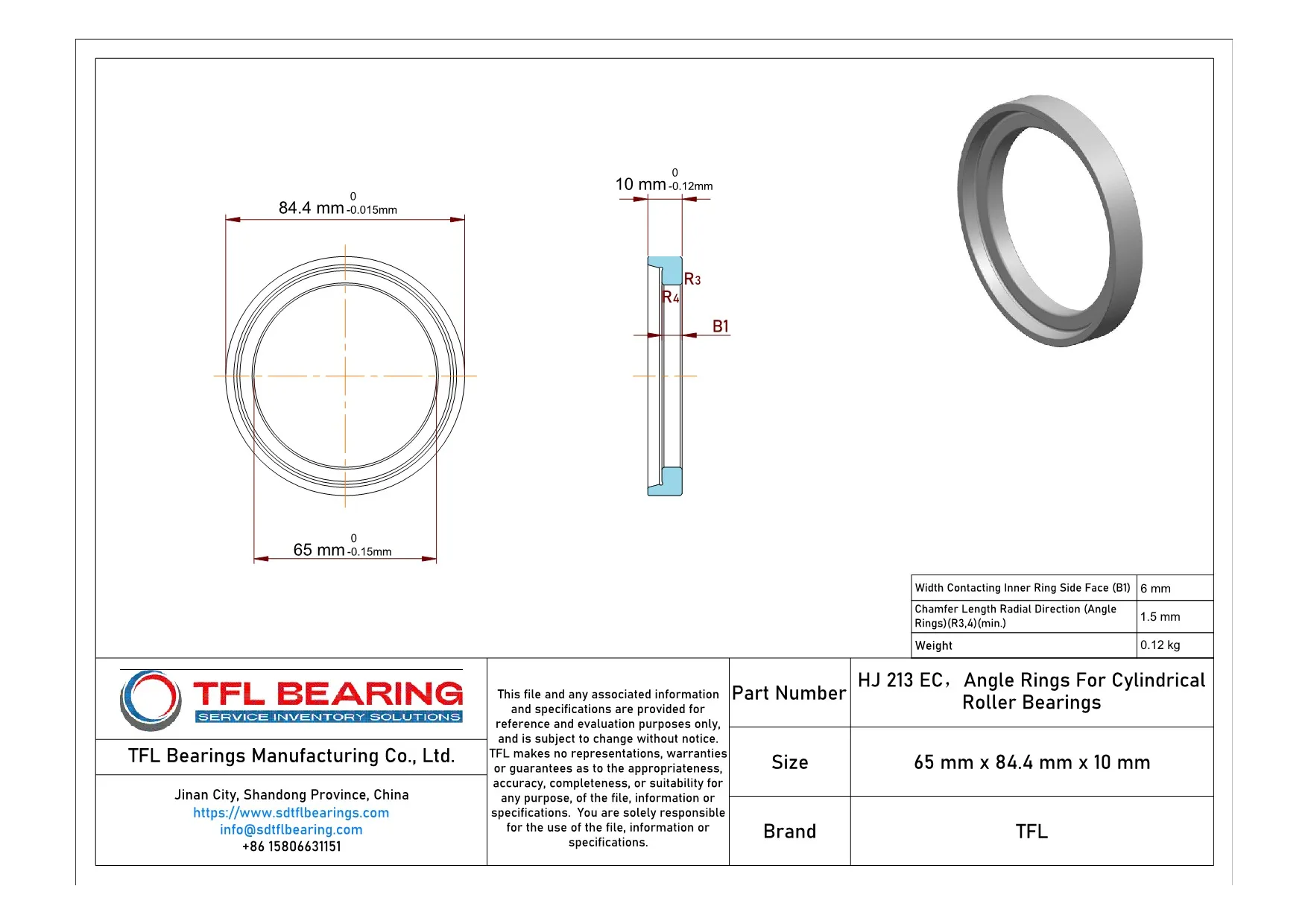

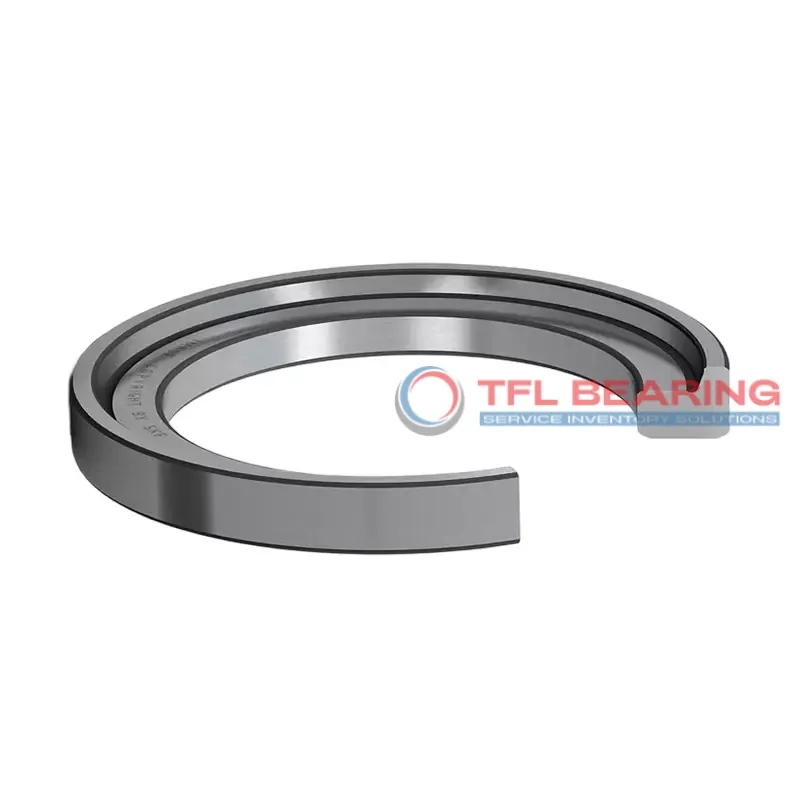

The HJ 213 EC angle ring is designed for cylindrical roller bearings, with a 65mm bore and 84.4mm outer diameter. Made from sturdy chrome steel, it fits snugly with a width of 10mm and a 6mm contact side for the inner ring.
Its precise tolerances ensure a secure fit, while the 1.5mm chamfer length helps with easy installation. The ring operates reliably in temperatures ranging from -30°C to 110°C.
This angle ring is interchangeable with SKF models, making it a practical choice for replacements. It’s ideal for use in machinery where cylindrical roller bearings need extra support.
Weighing just 0.12kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.
"*" indicates required fields
How Is HJ 213 EC Bearing Engineered for Reliability?
HJ 213 EC Bearing is crafted from durable chrome steel, ensuring strength and resistance to wear.
Its precise dimensions, with a bore diameter of 65 mm, provide a secure fit for cylindrical roller bearings.
The temperature range of -30° to 110 °C allows HJ 213 EC Bearing to perform reliably in varied conditions.
With a weight of just 0.12 kg, it offers a balance of durability and ease of handling.
The chamfer length of 1.5 mm ensures smooth installation, reducing the risk of damage during setup.
Its compliance with RoHS and REACH standards highlights its environmental and safety credentials.
Industrial Uses of HJ 213 EC Bearing
HJ 213 EC Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its cylindrical roller design handles high radial loads effectively. The chrome steel material ensures durability even in demanding environments.
In automotive applications, HJ 213 EC Bearing fits well in transmission systems and wheel hubs, providing reliable performance under constant stress. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, HJ 213 EC Bearing supports precise movement in robotic arms and assembly lines. The tight tolerances and robust construction help maintain accuracy over long periods of use.
Medical imaging devices also benefit from HJ 213 EC Bearing’s smooth operation and resistance to wear. Its compliance with RoHS and REACH standards makes it suitable for sensitive healthcare environments.
