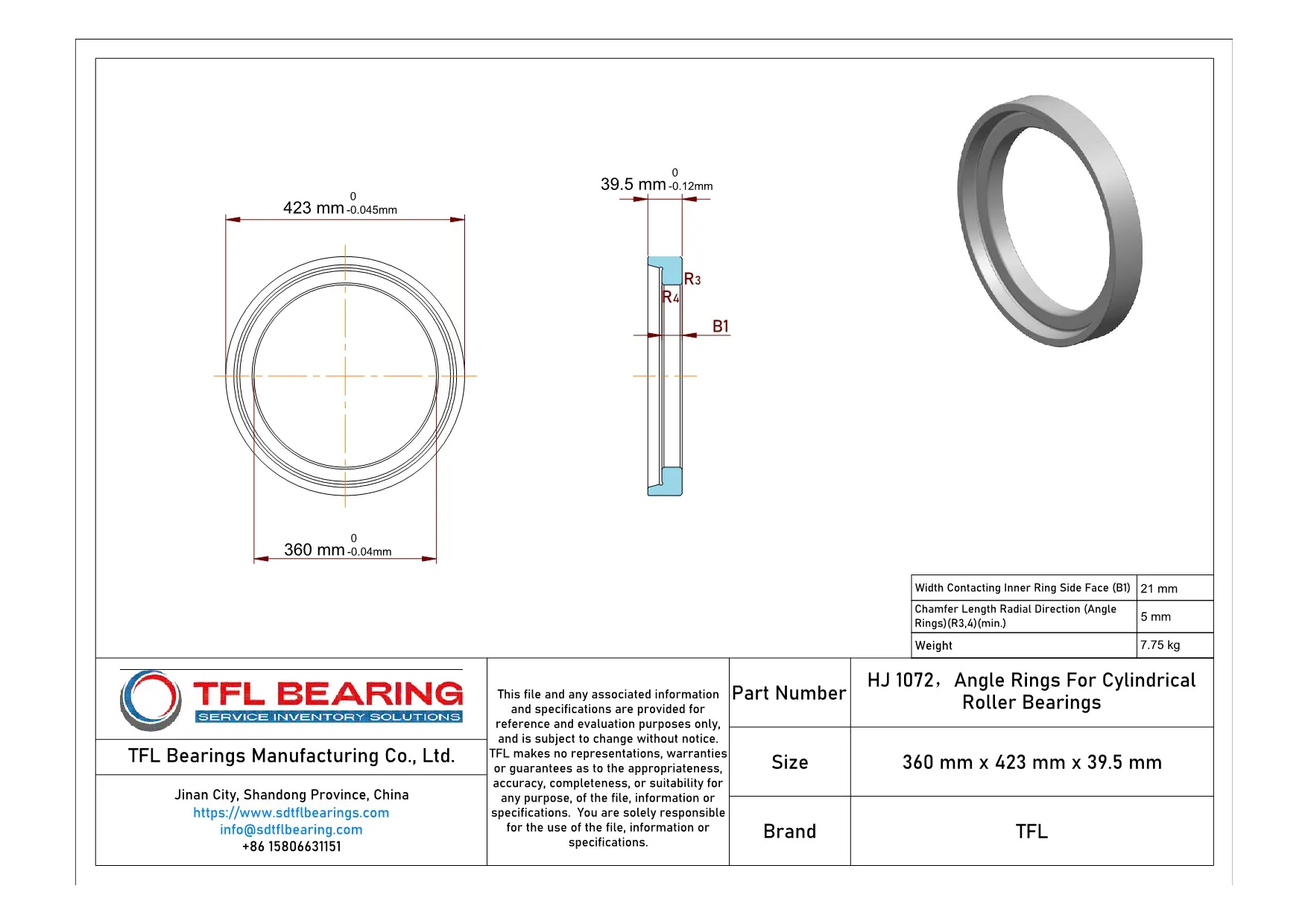

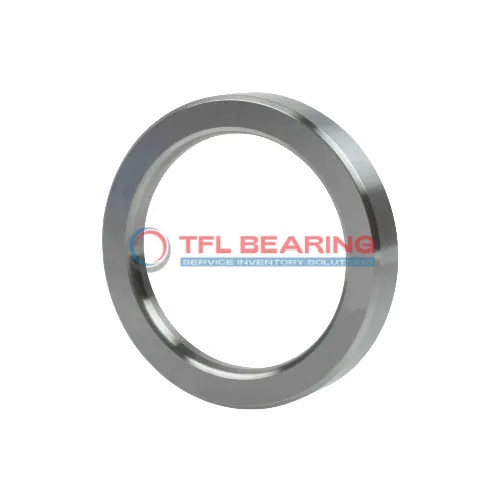

The HJ 1072 angle ring is designed for cylindrical roller bearings, with a 360mm bore and 423mm outer diameter. Made from sturdy chrome steel, it suits temperatures from -30°C to 110°C.
Its 39.5mm width and precise tolerances ensure a secure fit, while the 21mm contacting side face provides stability. The chamfered edges (5mm radial direction) make installation smoother.
This model is interchangeable with SKF rings, offering a reliable alternative for replacements. Ideal for heavy-duty machinery where cylindrical roller bearings are used.
Weighing 7.75kg, it’s robust yet manageable. Compliant with RoHS and REACH standards for safe industrial use.
"*" indicates required fields
Why Choose HJ 1072 Angle Ring for Cylindrical Roller Bearings?
HJ 1072 Angle Ring is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise dimensions, with a bore diameter of 360 mm and outer diameter of 423 mm, ensure a perfect fit for cylindrical roller bearings.
The angle ring’s design includes a chamfer length of 5 mm, facilitating easier installation and alignment.
With a temperature range of -30° to 110°C, HJ 1072 Angle Ring performs reliably in varied environments.
Its robust construction and compliance with RoHS and REACH standards make it a dependable choice for industrial applications.
Industrial Uses of HJ 1072 Bearing
HJ 1072 Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial presses, where its robust design handles significant radial loads. The chrome steel material ensures long-lasting performance even in demanding conditions.
In the automotive sector, HJ 1072 Bearing fits well in large vehicle components like truck axles, providing stability under heavy loads. Its precise metric dimensions make it interchangeable with major brands, simplifying replacements.
For wind turbine applications, HJ 1072 Bearing’s durability and temperature tolerance make it suitable for gearbox systems. The wide operating range ensures reliability in varying weather conditions.
Where Is HJ 1072 Bearing Used?
HJ 1072 Bearing finds its place in construction equipment, such as cranes and excavators, where its strength supports high-load operations. The tolerance specifications ensure smooth rotation under stress.
In mining machinery, HJ 1072 Bearing’s design withstands harsh environments, reducing downtime. Its interchangeability with SKF products offers flexibility in maintenance.
Built for Heavy-Duty Use: HJ 1072 Bearing
HJ 1072 Bearing excels in steel mills, where it manages extreme loads in rolling mills. The chrome steel construction resists wear, extending service life.
For marine applications, HJ 1072 Bearing’s corrosion-resistant properties make it ideal for ship propulsion systems. The wide temperature range accommodates varying sea conditions.
