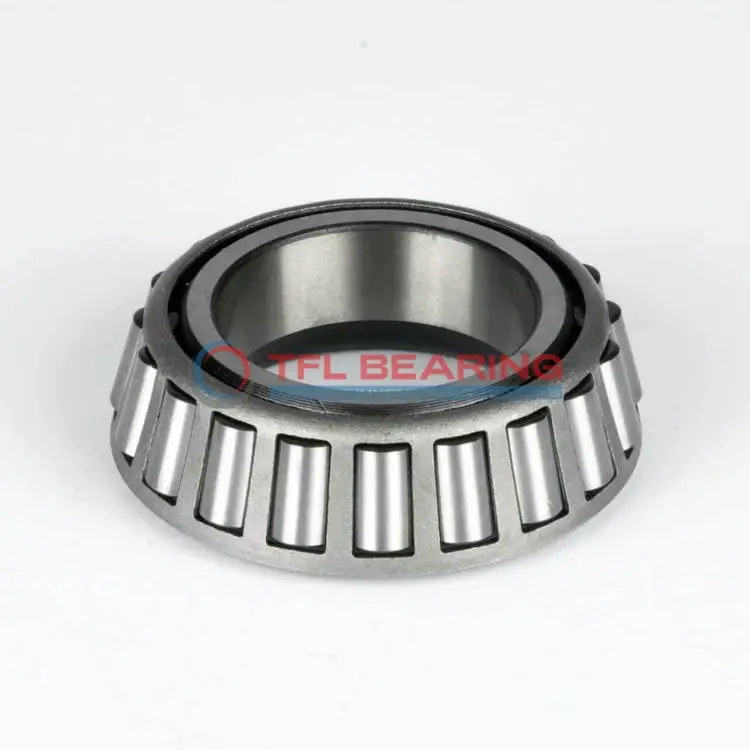

The 869 single cones are tapered roller bearings designed for combined loads, with a 3.4375″ bore and made from durable chrome steel. They handle dynamic radial loads up to 103,000 lbf and operate smoothly in temperatures from -30°C to 110°C.
Their single-row construction and open design make them easy to maintain, while the steel cage ensures reliable performance. The bearings are interchangeable with Timken models, offering flexibility for replacements.
Ideal for heavy-duty applications like industrial gearboxes or axle systems, where combined loads are common. They come in standard radial clearance but are also available in C3, C4, or C5 options for specific needs.
Compliant with RoHS and REACH standards, these cones are a practical choice for engineers and maintenance teams. Their robust design balances strength and longevity in demanding environments.
"*" indicates required fields
Performance Features of 869 Bearing
869 Bearing is built with chrome steel rings and a steel cage, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 103,000 lbf, ensuring reliable performance in tough conditions.
The tapered roller design provides smooth operation and reduces friction under heavy loads.
With a temperature range of -30° to 110°C, it performs well in various environments.
Why Choose 869 Bearing for Precision Tasks?
869 Bearing’s precise cone width tolerance of +0.003″ to -0.01″ ensures accurate alignment in applications.
The open seal design allows for easy inspection and maintenance, reducing downtime.
Its effective center location of -0.6″ enhances stability and load distribution.
The ABEC-1 rating confirms its suitability for precision engineering tasks.
Engineered for Reliability: 869 Bearing
869 Bearing’s single-row construction simplifies installation while maintaining high load capacity.
The steel cage keeps rollers in place, minimising wear and extending service life.
With a static radial load of 142,000 lbf, it handles demanding industrial applications.
Standard radial clearance options (C3/C4/C5) provide flexibility for different operational needs.
How Does 869 Bearing Resist Wear?
869 Bearing’s chrome steel construction offers excellent resistance to wear and fatigue.
The tapered roller design distributes loads evenly, reducing stress on individual components.
Cage clearances of 0.06″ (front) and 0.15″ (back) prevent unnecessary contact and friction.
Its dynamic radial rating of 26700 lbf (C90) ensures long-lasting performance under continuous use.
Steel vs Ceramic Bearings: Strengths of 869 Bearing
869 Bearing’s chrome steel rings provide durability at a lower cost than ceramic alternatives.
The steel cage maintains structural integrity under high temperatures up to 110°C.
With a dynamic thrust rating (Ca90) of 15300 lbf, it outperforms many standard bearings.
The inch measurement system makes it compatible with imperial machinery without conversion.
Industrial Uses of 869 Bearing
869 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.
Where Is 869 Bearing Used?
869 Bearing is often found in agricultural machinery, supporting components like tractor axles and harvesters. Its inch sizing makes it a good fit for older equipment still using imperial measurements.
Built for Heavy-Duty Use: 869 Bearing
869 Bearing excels in industrial gearboxes, providing reliable performance under high radial and thrust loads. The open design allows for easy lubrication, extending its service life.
Automotive vs Aerospace: Applications of 869 Bearing
In automotive applications, 869 Bearing is used in truck wheel hubs, offering stability under heavy loads. While not common in aerospace, its robust design suits ground support equipment.
Key Fields for 869 Bearing
869 Bearing is ideal for railway applications, such as freight car axles, where its tapered rollers manage dynamic loads. The steel cage adds strength, making it suitable for long-haul transport.
