/683XA-Single-Cones-(Imperial)-Dimensions.webp)

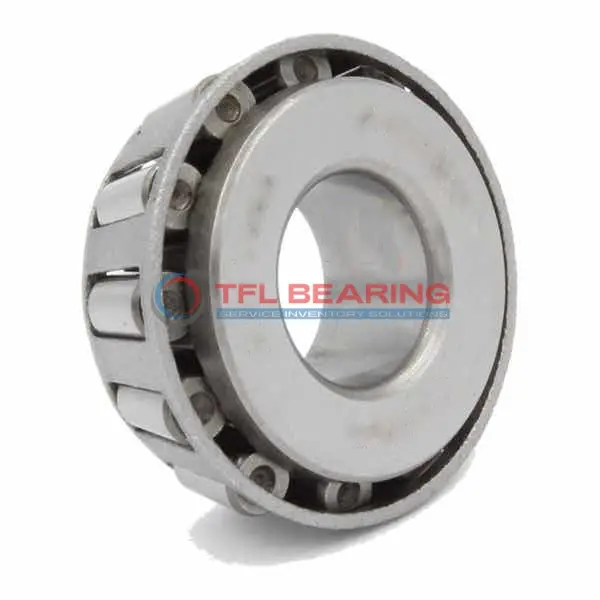

The 683XA is a single-row tapered roller bearing with a 3.75-inch bore, designed for combined loads. Made from durable chrome steel, it handles radial loads up to 59,500 lbf and thrust loads up to 12,400 lbf.
Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.
This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.
Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs.
"*" indicates required fields
How Does 683XA Bearing Handle Combined Loads?
683XA Bearing is designed with chrome steel rings, providing strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 59,500 lbf, ensuring reliable performance in demanding applications.
The steel cage keeps the tapered rollers aligned, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.
What Makes 683XA Bearing Suitable for Heavy-Duty Applications?
683XA Bearing’s tapered roller design efficiently manages combined loads, making it ideal for heavy-duty use.
The chrome steel construction enhances durability, while the steel cage ensures smooth operation.
Its dynamic radial rating of 104,000 lbf for two-row configurations highlights its robust performance.
The standard radial clearance allows for flexibility in different applications.
Engineered for Reliability: 683XA Bearing
683XA Bearing features a single-row construction, optimised for consistent performance under combined loads.
The precise cone width tolerance of +0.003″ to -0.01″ ensures a secure fit in various assemblies.
With an ABEC-1 rating, it balances precision and cost-effectiveness for industrial use.
Its compliance with RoHS and REACH standards makes it an environmentally friendly choice.
Steel vs Chrome Steel Bearings: Strengths of 683XA Bearing
683XA Bearing uses chrome steel rings for enhanced strength and resistance to wear.
The steel cage provides reliable support, ensuring the tapered rollers function smoothly.
Its dynamic thrust rating of 12,400 lbf demonstrates its capability in thrust load scenarios.
The effective center location of -0.11″ ensures proper alignment in mounted applications.
Industrial Uses of 683XA Bearing
The 683XA Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.
Where Is 683XA Bearing Used?
You’ll find 683XA Bearing in automotive applications such as truck wheel hubs, where its high dynamic radial load capacity keeps things running smoothly. The inch sizing makes it a go-to choice for older or custom-built vehicles.
Built for Heavy-Duty Use: 683XA Bearing
683XA Bearing excels in industrial settings like conveyor systems, thanks to its robust steel cage and open design. It’s also a reliable pick for mining equipment, where consistent performance under stress is key.
Automotive vs Aerospace: Applications of 683XA Bearing
In automotive uses, 683XA Bearing supports heavy axles and drivetrains, while in aerospace, it’s trusted for landing gear components. The ABEC-1 rating ensures precision without over-engineering for less critical roles.
Key Fields for 683XA Bearing
683XA Bearing is a staple in railway applications, particularly for freight car axles, due to its static radial load capacity. Its temperature range also makes it suitable for outdoor use in varying climates.
