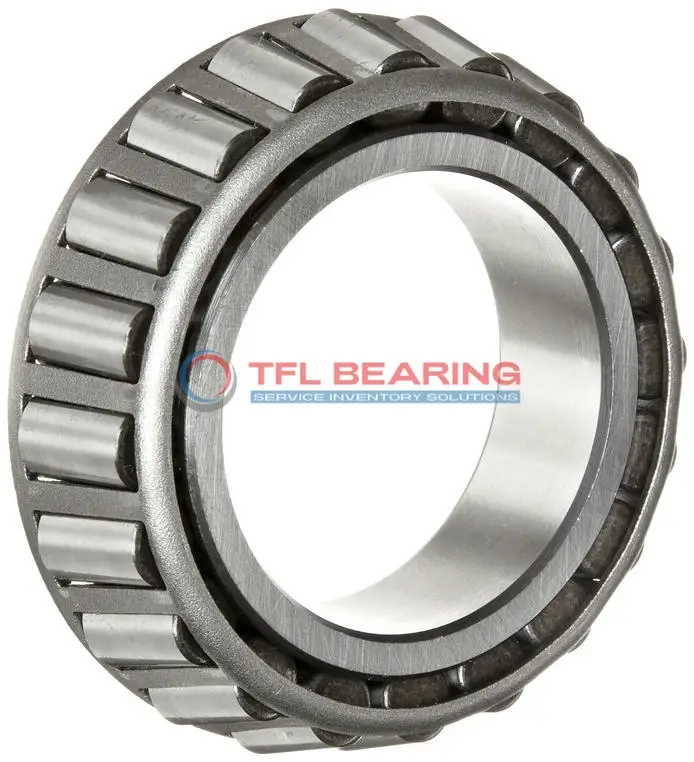

The 396 single cones are tapered roller bearings with a 1.9685″ bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 22200 lbf and static loads up to 28100 lbf.
Their single-row construction and open design make them easy to maintain, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures from -30°C to 110°C.
These cones are interchangeable with Timken models, offering flexibility for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.
With standard radial clearance and ABEC-1 rating, they balance precision and durability. Compliant with RoHS and REACH standards for safe use in various environments.
"*" indicates required fields
How Does 396 Bearing Handle Combined Loads?
396 Bearing is built with chrome steel rings and a steel cage, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 22,200 lbf, ensuring reliable performance in demanding conditions.
The tapered roller design provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs well in various environments.
Why Choose 396 Bearing for Heavy-Duty Applications?
396 Bearing’s single-row construction and chrome steel materials enhance durability under heavy loads.
The standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.
Its dynamic thrust rating of 3,970 lbf ensures stability in combined load scenarios.
The steel cage maintains roller alignment, reducing wear and extending service life.
Engineered for Precision: 396 Bearing
396 Bearing features precise cone width and backface tolerances for consistent performance.
The tapered roller design minimises friction, ensuring smooth operation even at high speeds.
With an ABEC-1 rating, it meets standard precision requirements for industrial use.
Its effective center location of -0.03″ enhances load distribution and stability.
Material Composition of 396 Bearing
396 Bearing uses high-quality chrome steel for its rings, providing strength and corrosion resistance.
The steel cage ensures durability and maintains roller alignment under heavy loads.
This material combination extends the bearing’s service life in tough conditions.
It complies with RoHS and REACH standards, making it suitable for various industries.
Performance Features of 396 Bearing
396 Bearing’s dynamic radial rating of 38,700 lbf (two-row) ensures reliability in heavy-duty applications.
The tapered roller design efficiently handles combined loads, reducing stress on components.
Its temperature range allows operation in both cold and moderately hot environments.
Standard radial clearance options provide versatility for different installation needs.
Industrial Uses of 396 Single Cones
The 396 Single Cones are commonly used in heavy machinery like construction equipment and agricultural vehicles, where their tapered roller design handles combined loads effectively.
Their open construction allows for easy lubrication, making them suitable for dusty or high-load environments.
Why Is 396 Single Cones Essential in Machinery?
In automotive applications, 396 Single Cones provide reliable support for wheel hubs and differential systems, ensuring smooth operation under varying loads.
The inch sizing makes them a preferred choice for older or imperial-standard machinery.
Built for Heavy-Duty Use: 396 Single Cones
These bearings excel in industrial gearboxes and conveyor systems, where their chrome steel construction offers long-lasting performance.
The steel cage adds durability, making them ideal for high-stress scenarios.
Automotive vs Aerospace: Applications of 396 Single Cones
While 396 Single Cones are widely used in truck axles and heavy vehicles, they also find niche roles in aerospace landing gear components.
Their ability to handle both radial and thrust loads makes them versatile across industries.
Perfect Fit for Automation: 396 Single Cones
In automated production lines, 396 Single Cones ensure precise movement in robotic arms and assembly systems.
Their standard radial clearance options allow for fine-tuning based on specific operational needs.
