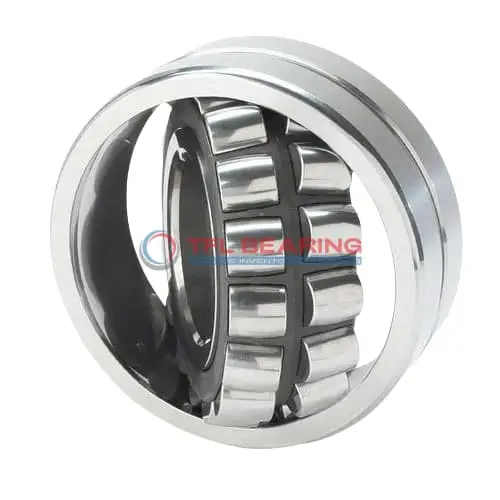

The 23024 is a double-row spherical roller bearing with a 120mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 82505 lbf and runs smoothly at speeds up to 1400 RPM.
Its open design and steel cage ensure durability, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.
With a lubrication groove and hole, maintenance is straightforward. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.
Weighing 4.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.
"*" indicates required fields
How Does 23024 Bearing Handle Combined Loads?
23024 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 82505 lbf, ensuring reliable performance in heavy-duty applications.
The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 1400 rpm, it balances durability and efficiency in demanding conditions.
What Makes 23024 Bearing Suitable for High-Temperature Applications?
23024 Bearing operates effectively in temperatures ranging from -30° to 200°C, making it ideal for harsh environments.
The chrome steel construction provides excellent heat resistance, maintaining performance under thermal stress.
Its steel cage ensures stability, even at high speeds and temperatures.
Regular lubrication further enhances its ability to withstand extreme conditions.
Engineered for Precision: 23024 Bearing
23024 Bearing features a double-row spherical roller design, enabling precise alignment under combined loads.
The cylindrical bore ensures a secure fit, reducing vibration and improving accuracy.
With a radial run-out standard, it delivers consistent performance in precision applications.
Its 120 mm bore diameter accommodates various shaft sizes, offering versatility.
Structural Advantages of 23024 Bearing
23024 Bearing’s double-row construction distributes loads evenly, enhancing durability and reducing wear.
The lubrication groove and holes ensure smooth operation, even under heavy radial loads.
Its chamfer dimensions of at least 2 mm facilitate easier installation and alignment.
Weighing 4.2 kg, it provides a robust solution without excessive bulk.
Why Choose 23024 Bearing for Heavy-Duty Applications?
23024 Bearing’s static radial load capacity of 112404 lbf makes it suitable for demanding industrial uses.
The spherical roller design compensates for misalignment, prolonging service life.
Its open seal type allows for easy lubrication, ensuring optimal performance.
Compliant with RoHS and REACH, it meets stringent environmental and safety standards.
Industrial Uses of 23024 Bearing
23024 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction allows for slight misalignment, reducing wear in demanding conditions.
Where Is 23024 Bearing Used?
In mining equipment, 23024 Bearing supports large loads in conveyor systems and pulverisers, thanks to its high dynamic radial load capacity. Its chrome steel rollers ensure long service life even in abrasive environments.
Built for Heavy-Duty Use: 23024 Bearing
For wind turbines, 23024 Bearing provides reliable performance in gearboxes and yaw systems, where consistent operation under varying loads is essential. The wide temperature range makes it suitable for outdoor applications.
Automotive vs Aerospace: Applications of 23024 Bearing
In heavy trucks, 23024 Bearing is found in wheel hubs and transmissions, offering durability under combined loads. While not typically used in aerospace, its precision makes it a fit for industrial turbines and generators.
Essential Roles of 23024 Bearing
23024 Bearing is a go-to choice for paper mill machinery, where its open design simplifies lubrication and maintenance. The steel cage and rollers ensure stability in high-speed, high-load scenarios.
