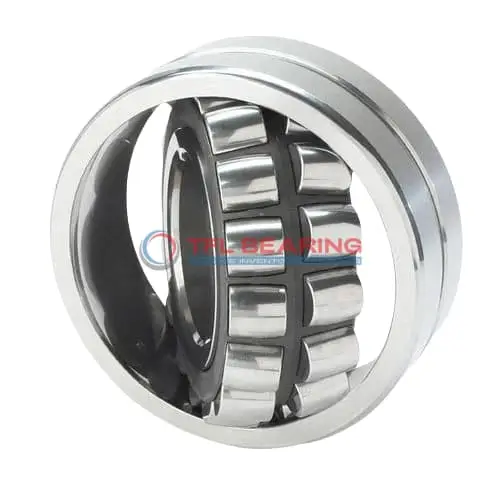

The 23024-2RS5/VT143B is a double-row spherical roller bearing with a 120mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 82505 lbf and operates smoothly at speeds up to 1400 RPM.
Its double-seal design keeps contaminants out while retaining lubrication, and the steel cage ensures durability. The bearing performs reliably in temperatures from -30°C to 200°C.
With a lubrication groove and hole, maintenance is straightforward. This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where robust performance is needed.
Weighing 4.2kg, it’s built to last while meeting RoHS and REACH standards for safety and compliance.
"*" indicates required fields
How Does 23024-2RS5/VT143B Bearing Handle Combined Loads?
23024-2RS5/VT143B Bearing features double-row spherical rollers, designed to manage both radial and axial loads efficiently.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 82505 lbf.
The double-seal design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 1400 rpm, it maintains reliable performance under demanding conditions.
23024-2RS5/VT143B Bearing’s lubrication groove and holes ensure consistent grease distribution, reducing wear.
Its temperature range of -30° to 200°C allows operation in varied climates.
The steel cage keeps rollers aligned, enhancing stability and extending service life.
This bearing is ideal for heavy-duty applications requiring robust load handling.
Industrial Uses of 23024-2RS5/VT143B Bearing
23024-2RS5/VT143B Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease. The spherical roller type ensures reliable performance even in misaligned conditions.
Where Is 23024-2RS5/VT143B Bearing Used?
In mining equipment, 23024-2RS5/VT143B Bearing provides robust support for conveyor systems, thanks to its high dynamic radial load capacity. The double seals also protect against dust and debris in harsh environments.
Built for Heavy-Duty Use: 23024-2RS5/VT143B Bearing
23024-2RS5/VT143B Bearing excels in paper mills, where its chrome steel construction withstands constant moisture and high temperatures. The lubrication groove ensures smooth operation over long periods.
Automotive vs Aerospace: Applications of 23024-2RS5/VT143B Bearing
In automotive applications, 23024-2RS5/VT143B Bearing supports heavy axles and gearboxes, while in aerospace, its precision fits auxiliary systems. The wide temperature range makes it versatile for both industries.
Essential Roles of 23024-2RS5/VT143B Bearing
23024-2RS5/VT143B Bearing is vital in wind turbines, where its spherical rollers accommodate shaft deflections. The steel cage adds durability, making it a long-lasting choice for renewable energy systems.
