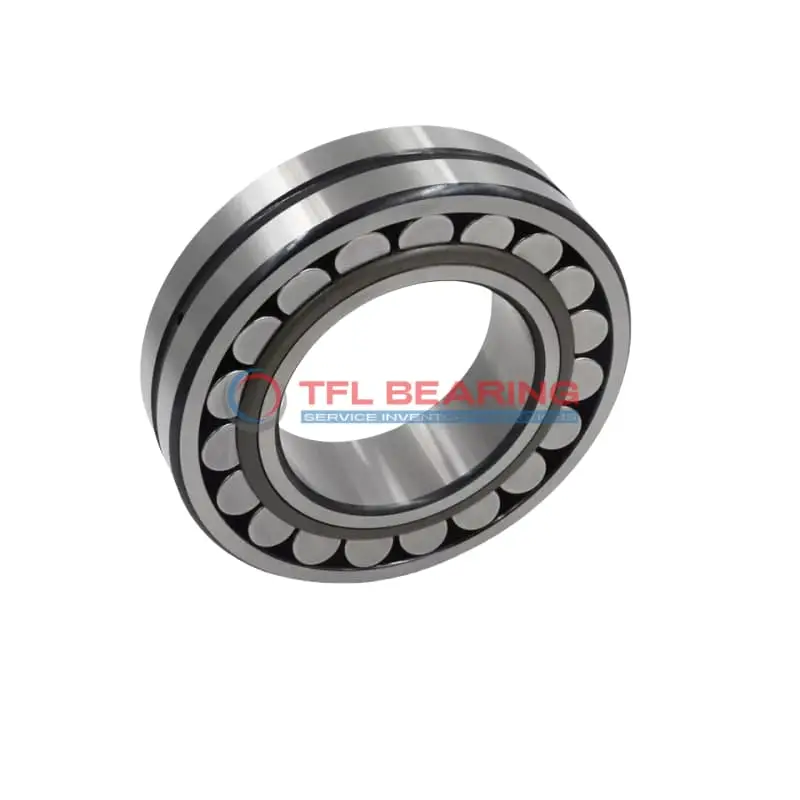

The 22311 CJ C4 W33 is a double-row spherical roller bearing with a 55mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 62947 lbf and operates smoothly at speeds up to 5600 RPM.
Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.
With a C4 radial clearance, it accommodates thermal expansion, making it suitable for high-heat environments. This model is interchangeable with SKF bearings, offering a dependable replacement option.
Ideal for heavy-duty applications like industrial gearboxes or mining equipment, where robust performance is essential. Weighing 2.35kg, it balances strength and manageability for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Core Advantages of 22311 CJ C4 W33 Bearing
22311 CJ C4 W33 Bearing features a double-row spherical roller design, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding conditions.
With a dynamic radial load capacity of 62,947 lbf, it performs reliably under heavy loads.
The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature applications up to 200°C.
How Is 22311 CJ C4 W33 Bearing Engineered for Reliability?
22311 CJ C4 W33 Bearing includes a steel cage that maintains roller alignment, reducing friction and wear.
The lubrication groove and holes ensure consistent oil flow, enhancing performance and longevity.
Its spherical roller design compensates for misalignment, ensuring smooth operation.
With a maximum speed of 5,600 rpm, it balances high performance and durability.
Designed for Durability: 22311 CJ C4 W33 Bearing
22311 CJ C4 W33 Bearing’s chrome steel rollers and rings provide excellent resistance to heavy loads.
The double-row construction distributes loads evenly, reducing stress on individual components.
It operates efficiently in temperatures ranging from -30°C to 200°C, suitable for varied environments.
The open design simplifies lubrication, ensuring consistent performance over time.
Steel vs Ceramic Bearings: Strengths of 22311 CJ C4 W33 Bearing
22311 CJ C4 W33 Bearing uses chrome steel for both rollers and rings, offering high strength and durability.
This material choice ensures reliable performance under heavy loads and high temperatures.
The steel cage further enhances stability, keeping rollers aligned during operation.
Its design is optimised for industrial applications where robustness is essential.
What Makes 22311 CJ C4 W33 Bearing Suitable for High-Temperature Applications?
22311 CJ C4 W33 Bearing operates effectively in temperatures up to 200°C, thanks to its chrome steel construction.
The C4 radial clearance accommodates thermal expansion, preventing performance issues.
Its lubrication system ensures smooth operation even in demanding conditions.
This makes it a reliable choice for machinery exposed to high heat.
Industrial Uses of 22311 CJ C4 W33 Bearing
22311 CJ C4 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads effortlessly. The spherical roller construction also compensates for misalignment, ensuring smooth operation in tough conditions.
Where Is 22311 CJ C4 W33 Bearing Used?
You’ll often spot 22311 CJ C4 W33 Bearing in conveyor systems and industrial fans, thanks to its ability to manage combined loads. Its C4 radial clearance makes it ideal for applications with thermal expansion concerns.
Built for Heavy-Duty Use: 22311 CJ C4 W33 Bearing
22311 CJ C4 W33 Bearing excels in mining equipment, where its chrome steel rollers withstand abrasive environments. The lubrication groove design ensures consistent performance even under continuous operation.
Automotive vs Aerospace: Applications of 22311 CJ C4 W33 Bearing
In automotive gearboxes, 22311 CJ C4 W33 Bearing provides reliable support for high-torque scenarios. Meanwhile, its temperature range makes it suitable for aerospace auxiliary systems, though primary flight controls often require specialised alternatives.
Practical Applications of 22311 CJ C4 W33 Bearing
22311 CJ C4 W33 Bearing works well in paper mill machinery, where its steel cage handles humid conditions. The W33 lubrication feature simplifies maintenance in hard-to-reach industrial setups.
