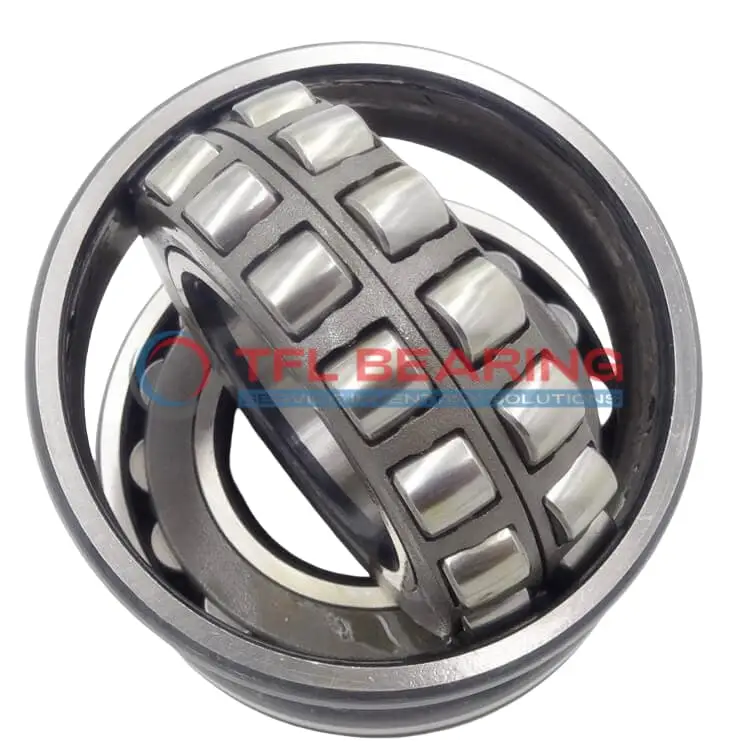

The 22310 CC W33 A15 is a double-row spherical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 51256 lbf and operates smoothly at speeds up to 6300 RPM.
Its open design and lubrication groove (6mm wide) make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.
Weighing 1.85kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe usage.
"*" indicates required fields
Performance Features of 22310 CC W33 A15 Bearing
22310 CC W33 A15 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 51256 lbf, ensuring reliable performance in heavy-duty applications.
The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.
22310 CC W33 A15 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, ensuring smooth operation at speeds up to 6300 rpm.
The lubrication groove and holes in 22310 CC W33 A15 Bearing facilitate easy maintenance.
This design ensures consistent performance while reducing downtime for servicing.
Industrial Uses of 22310 CC W33 A15 Bearing
22310 CC W33 A15 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged conditions.
Where Is 22310 CC W33 A15 Bearing Used?
In mining equipment, 22310 CC W33 A15 Bearing supports conveyor systems and gearboxes, thanks to its robust chrome steel construction. The lubrication groove and holes make maintenance easier, even in dusty environments.
Built for Heavy-Duty Use: 22310 CC W33 A15 Bearing
22310 CC W33 A15 Bearing excels in paper mill machinery, where its high dynamic load capacity ensures reliable performance. The steel cage adds durability, making it suitable for continuous operation.
Automotive vs Aerospace: Applications of 22310 CC W33 A15 Bearing
In automotive applications, 22310 CC W33 A15 Bearing is found in truck wheel hubs, handling combined loads effectively. For aerospace, its temperature range and precision make it useful in auxiliary equipment.
Practical Applications of 22310 CC W33 A15 Bearing
22310 CC W33 A15 Bearing is ideal for wind turbines, where its spherical rollers accommodate shaft deflections. The open design allows for easy relubrication, extending service life in harsh conditions.
