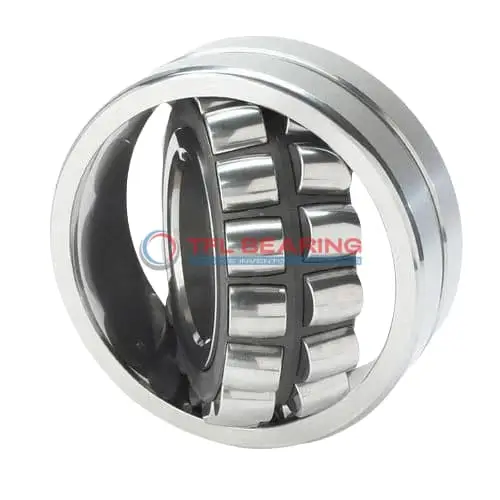

The 22226 CKY C2 is a double-row spherical roller bearing with a 130mm bore and 230mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 170405 lbf and operates smoothly at speeds up to 3600 RPM.
Its brass cage and open design ensure durability and easy lubrication, while the tapered bore provides a secure fit. The bearing performs reliably in temperatures ranging from -30°C to 200°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.
Weighing 11.5kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 22226 CKY C2 Bearing
22226 CKY C2 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 170405 lbf, making it suitable for heavy-duty applications.
The brass cage ensures smooth operation by keeping the rollers aligned, reducing friction and wear.
With a maximum speed of 3600 rpm, it delivers reliable performance under demanding conditions.
22226 CKY C2 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reducing maintenance needs.
Industrial Uses of 22226 CKY C2 Bearing
22226 CKY C2 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.
Where Is 22226 CKY C2 Bearing Used?
You’ll often find 22226 CKY C2 Bearing in mining equipment, where its robust construction withstands harsh conditions. Its tapered bore also simplifies installation in large shafts.
Built for Heavy-Duty Use: 22226 CKY C2 Bearing
22226 CKY C2 Bearing excels in paper mills and steel plants, thanks to its high dynamic load capacity. The open design allows for easy relubrication, extending service life.
Automotive vs Aerospace: Applications of 22226 CKY C2 Bearing
In automotive applications, 22226 CKY C2 Bearing supports large drivetrains, while in aerospace, it’s used in auxiliary systems. Its temperature range suits both environments.
Practical Applications of 22226 CKY C2 Bearing
22226 CKY C2 Bearing is ideal for wind turbines, where its spherical rollers accommodate shaft deflection. The chrome steel construction ensures durability in outdoor conditions.
