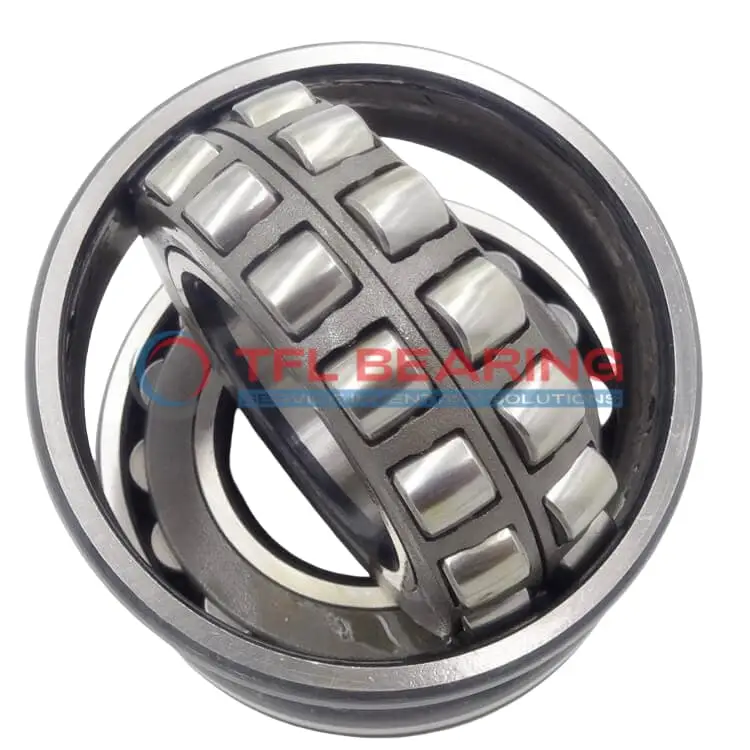

The 22210 CCK C4 W33 is a double-row spherical roller bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24055 lbf and can spin at speeds up to 9500 RPM.
Its open design and tapered bore ensure easy installation, while the steel cage and lubrication groove enhance durability. The bearing operates smoothly in temperatures from -30°C to 200°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.
Weighing 0.62kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
Performance Features of 22210 CCK C4 W33 Bearing
22210 CCK C4 W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24055 lbf, ensuring reliable performance in heavy-duty applications.
The double-row spherical roller design allows for slight misalignment, reducing stress and wear.
With a maximum speed of 9500 rpm, it maintains efficiency even under high-speed conditions.
22210 CCK C4 W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The lubrication groove and holes ensure consistent oil distribution, enhancing durability.
Its C4 radial clearance provides flexibility, accommodating thermal expansion in demanding settings.
The steel cage keeps rollers aligned, contributing to smooth operation and extended service life.
Industrial Uses of 22210 CCK C4 W33 Bearing
22210 CCK C4 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged environments.
Where Is 22210 CCK C4 W33 Bearing Used?
In mining equipment, 22210 CCK C4 W33 Bearing supports rotating components like conveyor pulleys, thanks to its high dynamic radial load capacity. The C4 radial clearance further enhances performance in high-temperature applications.
Built for Heavy-Duty Use: 22210 CCK C4 W33 Bearing
22210 CCK C4 W33 Bearing excels in paper mill machinery, where its chrome steel rollers withstand constant friction and moisture. The lubrication groove design ensures consistent oil flow, extending bearing life.
Automotive vs Aerospace: Applications of 22210 CCK C4 W33 Bearing
In automotive drivetrains, 22210 CCK C4 W33 Bearing manages heavy loads in differential systems, while its aerospace applications include auxiliary gearboxes. The metric taper bore simplifies installation in precision assemblies.
Key Fields for 22210 CCK C4 W33 Bearing
Wind turbine yaw systems rely on 22210 CCK C4 W33 Bearing for its ability to handle fluctuating radial and axial forces. The steel cage provides durability in variable weather conditions.
