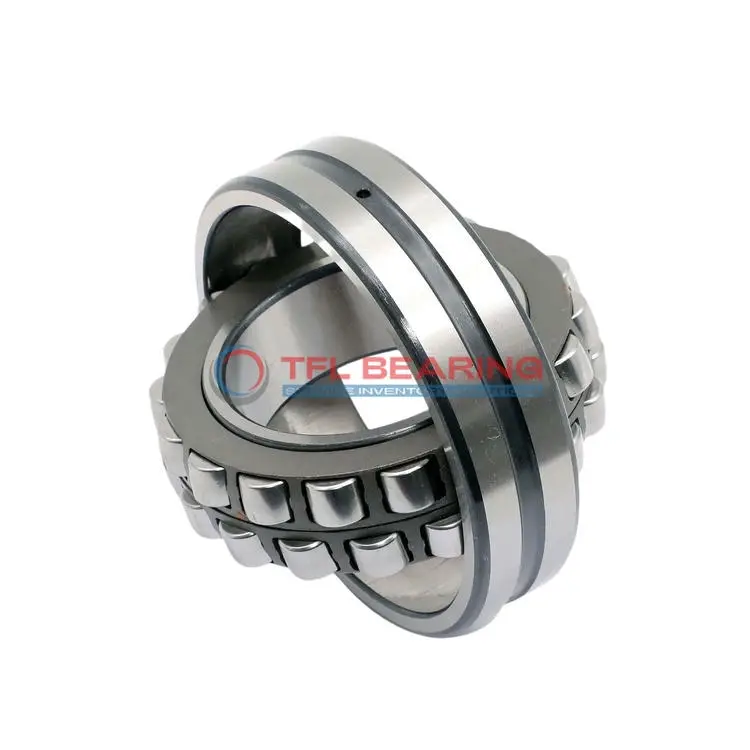

The 22208 CJ W33 C5 is a double-row spherical roller bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22144 lbf and operates smoothly at speeds up to 11000 RPM.
Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are prevalent.
Weighing 0.53kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 22208 CJ W33 C5 Bearing
22208 CJ W33 C5 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22144 lbf, ensuring reliable performance in demanding conditions.
The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life of the bearing.
With a maximum speed of 11,000 rpm, 22208 CJ W33 C5 Bearing balances high performance and efficiency.
The C5 radial clearance provides optimal operation under varying thermal conditions.
22208 CJ W33 C5 Bearing operates in temperatures from -30° to 200°C, making it suitable for diverse environments.
Its steel cage ensures proper roller alignment, minimising wear and maintenance needs.
The lubrication groove and holes in 22208 CJ W33 C5 Bearing facilitate easy maintenance.
This design helps maintain smooth operation even under heavy loads and high speeds.
Industrial Uses of 22208 CJ W33 C5 Bearing
22208 CJ W33 C5 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The spherical roller construction also compensates for misalignment, ensuring smooth operation in tough conditions.
Where Is 22208 CJ W33 C5 Bearing Used?
In mining equipment, 22208 CJ W33 C5 Bearing supports rotating shafts in conveyors and separators, thanks to its robust chrome steel build. The C5 clearance allows for thermal expansion, making it reliable in fluctuating temperatures.
Built for Heavy-Duty Use: 22208 CJ W33 C5 Bearing
This bearing excels in paper mills, where its steel cage and lubrication grooves reduce friction in high-speed rollers. The W33 suffix indicates a lubrication hole, simplifying maintenance in hard-to-reach areas.
Automotive vs Aerospace: Applications of 22208 CJ W33 C5 Bearing
In trucks, 22208 CJ W33 C5 Bearing is ideal for axles and transmissions, handling combined loads effortlessly. While not typically used in aerospace, its precision makes it suitable for industrial fans and pumps.
Perfect Fit for Automation: 22208 CJ W33 C5 Bearing
For robotic arms in assembly lines, 22208 CJ W33 C5 Bearing offers stability and durability under continuous motion. The metric sizing ensures compatibility with European and Asian automation systems.
