TFL solves the problem of mud and water intrusion in large tractors, saving $5,000 per unit annually
Read More
"My biggest fear was getting that call about a tractor down in the middle of planting season. Since switching to TFL's wheel end bearings, we've had three straight harvest seasons with zero unexpected failures. That's the kind of reliability we need to run a modern, large-scale farm."
TFL bearings help agricultural company save $5,000 per large tractor annually

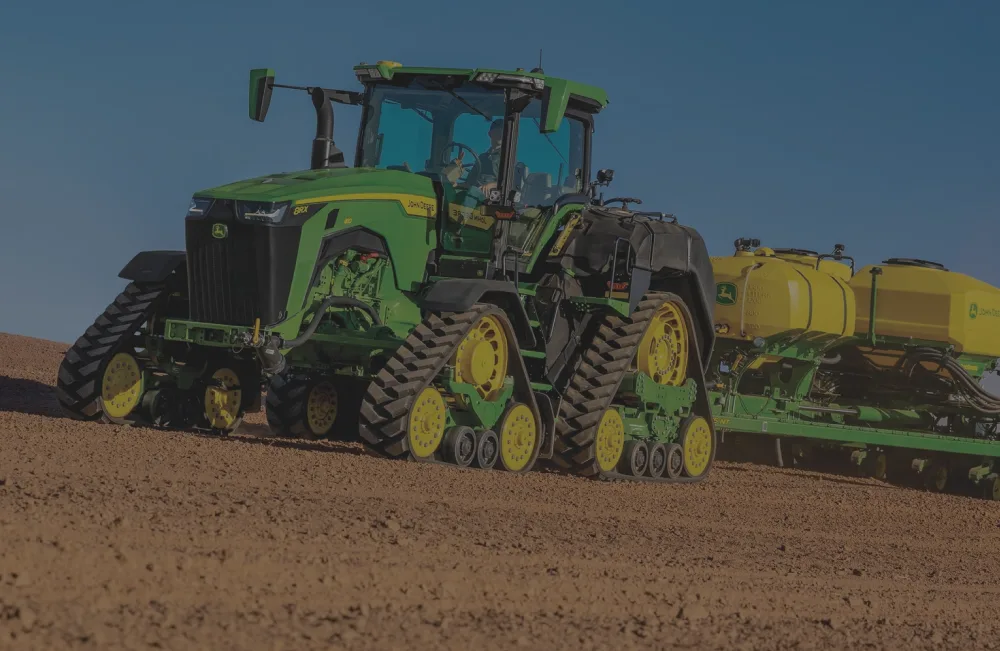

large tractors
Cost Savings: $5,000

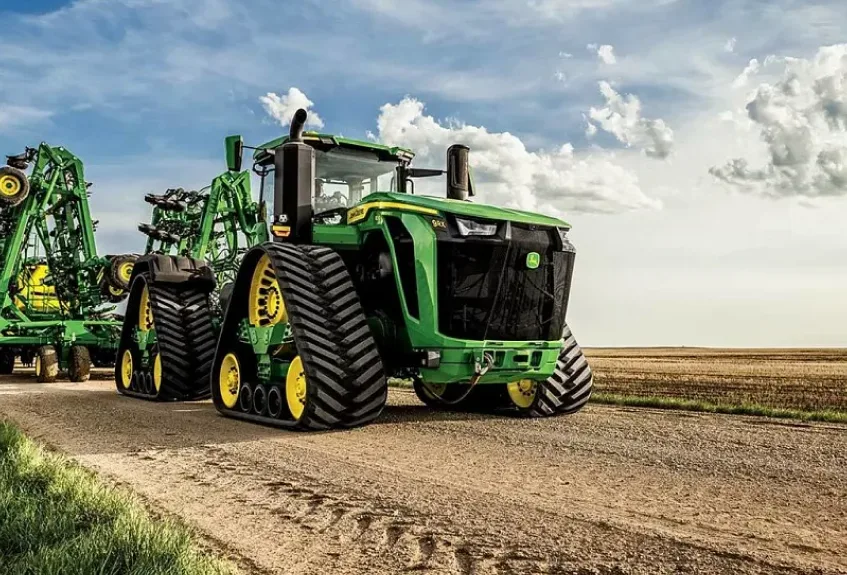

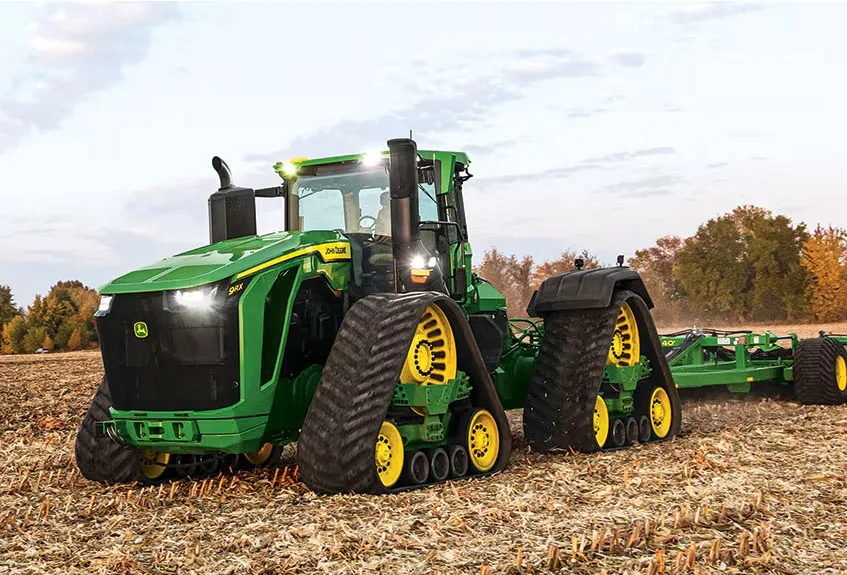

A modern agricultural company in North America with 20,000 acres of farmland has as its core equipment heavy-duty four-track tractors, mainly used for large-scale plowing, sowing and deep loosening operations. The wheel-end drive assembly is the final link in power transmission, responsible for transmitting the powerful torque of the engine to the tracks and bearing the entire vehicle’s weight of over 25 tons as well as the dynamic impact during operation. It is the key to ensuring the continuous and reliable operation of the tractor in harsh field conditions.
Read More
"My biggest fear was getting that call about a tractor down in the middle of planting season. Since switching to TFL's wheel end bearings, we've had three straight harvest seasons with zero unexpected failures. That's the kind of reliability we need to run a modern, large-scale farm."
Key Facts
- Relentless Ingress of Mud, Water, and Grit
- The Root Cause: Tractors operate in extremely demanding environments, frequently churning through muddy, waterlogged fields. High-pressure washing for cleaning also directs powerful water jets directly at the wheel end seals.
- The Failure Mechanism: The standard-issue oil seals would quickly have their sealing lips worn down and degraded by the constant barrage of abrasive mud and grit. This created micro-gaps, allowing a slurry of mud and water to penetrate the bearing cavity. This mixture contaminated the grease, forming an abrasive paste that rapidly destroyed the precision surfaces of the rollers and raceways.
- High-Frequency Shock Loads from Uneven Terrain
- The Root Cause: When the tractor travels at speed over hard, uneven ground or crosses field berms, the wheel ends are subjected to enormous instantaneous shock loads.
- The Failure Mechanism: This impact force is transferred directly to the bearing cage. The standard stamped-steel cage would deform or even fracture under these peak loads, as stress was not distributed evenly. A damaged cage leads to roller misalignment and seizure, causing the bearing to fail catastrophically in a very short time.
- Lubrication Breakdown and Maintenance Complexity
- The Root Cause: The wheel end assembly is complex, making disassembly, re-lubrication, and preload adjustments a time-consuming task that demands highly skilled technicians.
- The Failure Mechanism: Due to the difficulty of service, the maintenance team tended to extend service intervals. This resulted in grease degradation from high temperatures and heavy loads. Contaminated grease was not replaced in time, losing its protective properties entirely.
The TFL Solution
We provided Agri-Solutions with a TFL enhanced wheel end solution based on the 32940-A Tapered Roller Bearing, featuring two key, practical improvements:
- Enhanced Multi-Lip Cassette Seal
- Technical Description: We replaced the original single-lip oil seal with an integrated cassette seal unit. This design incorporates three primary sealing lips and multiple auxiliary dust lips, creating a "labyrinth-like" barrier. It effectively withstands high-pressure water jets and immersion in mud, blocking solid and liquid contaminants layer by layer.
- Materials & Process: The sealing lips are made from a highly wear-resistant and durable Hydrogenated Nitrile Butadiene Rubber (HNBR), ensuring elasticity and longevity through a mature vulcanization process.
- Optimized, Reinforced Steel Cage
- Technical Description: To combat shock loads, we re-engineered the cage. Using Finite Element Analysis (FEA), we strategically thickened critical stress points and improved the roller pocket geometry. This allows the cage to guide the rollers more effectively and distribute impact forces evenly, preventing stress concentration.
- Materials & Process: The cage is manufactured from a high-quality, tougher low-carbon steel plate, with its resistance to deformation increased by over 30% through precision stamping and a surface hardening treatment.
Product Features
- Superior Contamination Resistance: Integrated multi-lip cassette seal provides next-level defense against mud and water.
- Enhanced Impact Durability: Reinforced steel cage easily handles the shocks and jolts of fieldwork.
- Simplified Maintenance: The bearing's outer ring features a grease groove and holes, allowing for re-lubrication without full disassembly of the wheel end.
Application effects
After adopting the TFL bearing solution, the customer's heavy-duty four-track tractors have been significantly improved with remarkable results:
- Extended Service Life► Before: A standard bearing would struggle to survive one season (1,500 hours) in muddy conditions before contamination caused noise and play. This forced a major wheel end overhaul every planting season, frustrating technicians and creating constant worry about in-field breakdowns.► Now: TFL's cassette seal blocks over 95% of contaminants, keeping the grease clean and the bearing running smoothly. The average service life has been extended to over 5,000 hours (more than 3 seasons), aligning perfectly with the tractor's major overhaul schedule and slashing the fleet's preventive maintenance workload by 60%.
- More Sturdy and Durable► Before: Driving over a field berm at speed could result in a loud bang from the wheel end as a standard cage buckled, seizing the bearing. The tractor would be stranded, and a service crew would spend half a day just recovering it, delaying work on an entire field.► Now: The reinforced cage absorbs significantly higher peak impact loads without issue. Under the same conditions, the bearing performs flawlessly. This has completely eliminated catastrophic failures due to impact, guaranteeing uptime during the critical money-making seasons.
Cost-Savings Breakdown
By providing customers with customized bearing solutions, TFL Bearing successfully helped them solve problems in tractor operation, achieved a comprehensive improvement in equipment performance, and created significant value for them.
| REDUCED SPARE PART COSTS | $1,200 |
| AVOIDED DOWNTIME LOSSES | $3,000 |
| ELIMINATED COLLATERAL DAMAGE COSTS | $800 |
| ANNUALIZED COST SAVINGS | $5,000 |
