TFL bearings help textile mills save $118,500 annually

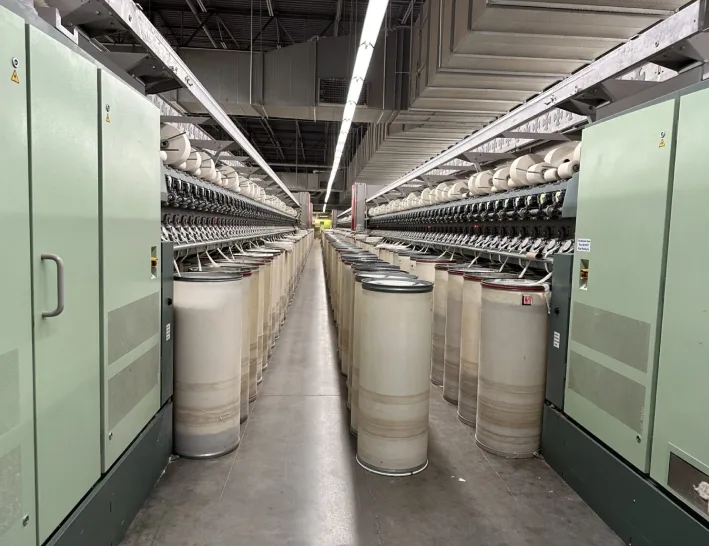

Open-End Spinning Machine
A leading enterprise renowned in the industry for its high-quality yarn production. This collaboration focuses on a critical asset in their production line: their Open-End Spinning Machines. The Rotor Cup Assembly in these machines serves as the “heart” of the entire line, responsible for twisting fiber bundles into yarn at ultra-high speeds. Its operational stability directly dictates the evenness and strength of the final product.
Key Facts
-
High-Speed Rotation: The rotor cups operate at a constant 15,000 RPM. Any minute bearing vibration is directly transferred to the yarn, causing imperfections (yarn defects) that downgrade the product quality.
-
High Temperature & Humidity: To maintain the required fiber moisture regain, the workshop temperature is consistently above 50°C (122°F) with a relative humidity of 80%. This environment can easily lead to grease emulsification and leakage, while also accelerating metal corrosion.
-
Contamination Ingress: The air is saturated with fine cotton linters and synthetic fiber fragments, which act as pervasive abrasive agents. Once these particles penetrate a bearing, they mix with the grease to form a sludge, drastically accelerating wear on the raceways and rolling elements. Statistically, 60% of premature bearing failures in textile mills are linked to contamination.
-
Variable & Shock Loads: The starting, stopping, and yarn-breakage recovery cycles of the spinning machine generate significant shock loads. This requires bearings that not only handle high speeds but also possess high rigidity and fatigue resistance to prevent raceway damage and cage failure.
The TFL Solution
The primary challenges for this application are the combination of "ultra-high speed" and "heavy dust contamination." TFL's High-Speed Roller Bearing, with its inherent low-vibration design, directly ensures high-quality yarn, while its superior thermal management capably handles the heat generated by high-speed friction. This made it the ideal foundation for our solution, which included three key enhancements:
-
Enhanced Dust-Proofing: Double-Lip Seal + V-Ring Shield
Technical Description: We integrated a special Nitrile Butadiene Rubber (NBR) double-lip contact seal on both sides. The inner lip provides a tight seal against the inner ring to prevent grease leakage, while the outer lip forms a primary barrier against external dust. This is supplemented by a non-contact V-ring metal shield, creating a labyrinth effect that blocks over 95% of fiber contaminants at the first line of defense.
-
Improved Durability: Optimized Heat Treatment & Reinforced Cage
Technical Description: The bearing rings are made from high-purity, high-carbon chromium steel and undergo an optimized bainite hardening process. This achieves the perfect balance of hardness and toughness, increasing impact resistance by 30%. The cage is constructed from a glass-fiber-reinforced phenolic resin, a material that is lightweight, heat-resistant, and self-lubricating, ensuring stable, flutter-free performance at high speeds.
-
Simplified Maintenance: Annular Groove & Lubrication Holes
Technical Description: A precision-machined annular groove and three lubrication holes were added to the outer ring. This allows maintenance staff to replenish specialized grease via a grease nipple on the bearing housing without any disassembly, drastically simplifying maintenance and ensuring the bearing is always optimally lubricated.
Product Features
-
High-Speed Roller Bearings
Optimized internal geometry, lightweight high-strength cage, high limiting speeds, low vibration, and excellent temperature control.
-
Heavy-Duty Roller Bearings
Reinforced rollers and raceways, providing superior radial and axial load capacity and excellent resistance to shock and fatigue.
-
Wide-Width Roller Bearings
Manufactured with extremely high precision and dimensional stability to minimize long-shaft deflection and ensure uniform tension across a wide web.
Application effects
-
Previously, the maintenance team was plagued by a persistent problem: standard bearings in the rotor cups would fail in under four months due to contamination, leading to harsh noises and eventual seizure. This meant frequent, unplanned downtime and, more critically, a consistently high rate of yarn defects caused by bearing vibration, which tarnished the company's reputation for quality.
-
The switch to TFL's customized high-speed roller bearings marked a turning point. The "double-barrier" seal design acted as an impenetrable shield, blocking over 95% of dust contamination. The plant manager reported that the machines now run noticeably smoother and quieter, with a tangible improvement in yarn quality consistency. The most dramatic result was the extension of the bearing's service life from a mere 4 months to over 18 months of continuous, trouble-free operation. The team was finally freed from the cycle of reactive "firefighting" and could focus on more valuable preventive maintenance tasks.
Cost-Savings Breakdown
| SPARE PART COST SAVINGS | $18,500 |
| INCREASED REVENUE FROM UPTIME | $75,000 |
| REDUCED SCRAP COSTS | $25,000 |
| ANNUALIZED COST SAVINGS | $118,500 |
