Why Choose Insulated Ball Bearings 6310M/C3VL0241 for Electrical Insulation

You use rotating machines every day, so electrical insulation is very important. It helps your machines work safely and well. Insulated ball bearings 6310m/c3vl0241 keep your motor safe from electrical damage. This damage can cause expensive stops and repairs. Stray electrical currents can hurt insulated bearings and make them fail. This happens a lot in motor systems. The TFL 6310M/C3VL0241 has a special coating. This coating stops electrical currents up to 3000 volts. It meets tough industry rules for insulation resistance. Electrically insulated bearings like these last longer. They are more reliable and cost less to fix in busy motor jobs.

Key Takeaways

• Insulated ball bearings 6310M/C3VL0241 keep motors safe. They stop bad electrical currents with a special aluminum oxide coating.
• These bearings last longer and help machines run more. They stop electrical damage like sparks, pitting, and rust.
• The bearings move smoothly with little friction. They work well at high speeds and with temperature changes. This makes them good for hard jobs.
• Using insulated bearings means less fixing is needed. It saves money on repairs and helps machines follow safety and environmental rules.
• Picking and putting in the right insulated bearing is important. It helps machines work better and last longer.

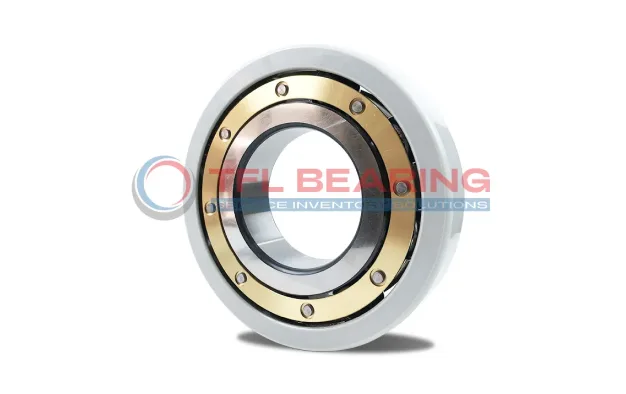

How Insulated Ball Bearings 6310M/C3VL0241 Work

Insulating Coating

Insulated ball bearings 6310m/c3vl0241 have a special coating on the outside ring. This coating is made with aluminum oxide. It stops electricity from going through the bearing. The coating is between 100 and 500 micrometers thick. This layer can handle up to 3000 volts before breaking down. Your machines stay safe even when there is a lot of voltage.

These insulated bearings keep their resistance steady, from 50 to 200 megaohms. High resistance keeps stray electricity away from important motor parts. The coating helps stop sparks and damage on the surface. You can see how these bearings compare to others in the table below:

Insulated bearings like these help motors, generators, and wind turbines work well. The insulation works great in hard jobs.

Electrical Protection

Insulated ball bearings 6310m/c3vl0241 give strong electrical protection. The coating blocks stray electricity that can hurt your motor. It stops fluting, pitting, and other damage inside. Using these bearings stops sparks and helps your equipment last longer.

Here’s what these insulated bearings do for you:

• The aluminum oxide coating on the outside ring acts like a shield. It keeps electricity from passing through the bearing.
• You get resistance from 50 to 200 megaohms. This protects your motor from sudden voltage jumps.
• The brass cage inside makes the bearing strong and lowers friction. Your motor can run up to 13,000 RPM without getting too hot.
• The C3 radial internal clearance lets the bearing handle hot or cold changes. This is good for motors in different temperatures.
• You can use these insulated deep groove ball bearings and insulated angular contact ball bearings in many high-voltage places.

Tip: If you pick TFL insulated bearings, you get good insulation and long life. These bearings help you save money and avoid machine stops.

Tests show insulated bearings protect against electrical damage. Even small electrical currents can melt and crack regular bearings. Insulated bearings stop this by blocking the current. This keeps your motor safe and working longer.

You can use TFL insulated bearings in electric motors, generators, wind turbines, conveyor belts, and even in planes and robots. These bearings work well in fast, heavy, and changing temperature jobs. When you choose an electrical insulating bearing like the 6310m/c3vl0241, you make a smart choice for your equipment’s safety and reliability.

Benefits of Insulated Bearings

Reliability and Durability

You want your machines to work well every day. Insulated bearings help your machines last longer in hard jobs. When you use TFL insulated bearings, your equipment is safe from electrical damage. The special coating on the bearing blocks stray electricity. This stops sparks and fluting inside the bearing. The bearing lasts longer because it does not wear out fast.

The brass cage inside TFL insulated bearings lowers friction. Your machines can run fast without getting too hot. You also stop galvanic corrosion, which happens when electricity breaks down metal parts. The strong insulation keeps your bearings safe, even with high voltage. These bearings work well in motors, generators, and wind turbines.

Note: High reliability means your machines stop less and you get more work done.

Maintenance Reduction

You do not have to fix your machines as much with insulated bearings. The insulated layer stops electrical arcing that can hurt the bearing. This means you do not need to change bearings often. TFL insulated bearings help you avoid expensive repairs and long stops.

Galvanic corrosion can make bearings break early. Insulated bearings stop this by blocking electricity. You also do not need as much maintenance or lubrication. TFL insulated bearings run smoothly, so you use less grease and oil. You save money and your machines last longer.

Here are some ways insulated bearings help with maintenance:

• Stop electrical damage and lower repair costs.
• Reduce how often you need to add grease.
• Prevent galvanic corrosion from damaging your machines.
• Make it easier to plan when to do maintenance.

Industry Compliance

You must follow safety and environmental rules at work. TFL insulated bearings meet strict rules like RoHS and REACH. These rules make sure the bearings do not have bad chemicals. You can use these bearings in many places, like factories and wind farms.

The insulation in TFL insulated bearings gives you peace of mind. You know your machines meet all the right rules. The high insulation keeps your machines safe and helps you pass checks. Galvanic corrosion will not be a problem with these bearings.

Tip: Always check if your bearings meet industry rules before using them. TFL insulated bearings make this simple.

Applications of Electrically Insulated Bearings

Industrial Uses

Insulated bearings are used in many industries. They help fix real problems in machines. Motors in factories need to last a long time. Electrically insulated bearings help motors run well and avoid damage from stray currents. You can find these bearings in electric motors, generators, wind turbines, conveyor systems, automotive alternators, aerospace equipment, and robotic arms. All these machines need protection from electrical problems.

• Electric motors use insulated bearings to stop galvanic corrosion. This helps the motor keep running without stopping.
• Wind turbines use these bearings for high speeds and changing weather. The insulation keeps the bearings safe from electrical arcing.
• Conveyor systems and robots need smooth and steady movement. Insulated bearings lower friction and help stop galvanic corrosion. This makes machines last longer.
• In CCTV systems with Pan-Tilt-Zoom, ball bearing slip rings keep electrical connections steady when turning. This shows how these bearings work in tricky setups.

There are many types and sizes to pick from. Some bearings are waterproof or can handle high heat. Others are made for fast or heavy jobs. You can find the right one for your needs.

Note: Using insulated bearings in motors is a great way to stop galvanic corrosion and help machines last longer.

High-Voltage Environments

Electrically insulated bearings are used in places with high voltage. Motors in these places face danger from electrical currents. The insulation in these bearings blocks the current and stops electrical discharge. This keeps your motor safe from wear and electrical damage.

Hybrid bearings with ceramic balls work well in high-frequency and high-voltage motors. The ceramic balls act as insulators. They stop electricity from going through the bearing. This lowers friction and helps stop galvanic corrosion. The bearings last longer and need fewer repairs.

Motors in high-voltage places, like traction motors and generators, need strong protection. Electrically insulated bearings give you that safety. The steel rings are tough and can handle both electrical and mechanical stress. You can trust these bearings for hard jobs with high speeds, heavy loads, and changing temperatures.

• Common uses are:
  • Electrical test equipment
  • Robotics
  • Indexing tables
  • Cable reels
  • Laboratory equipment

You can also change these bearings for speed, voltage, and size. This makes them good for many different jobs.

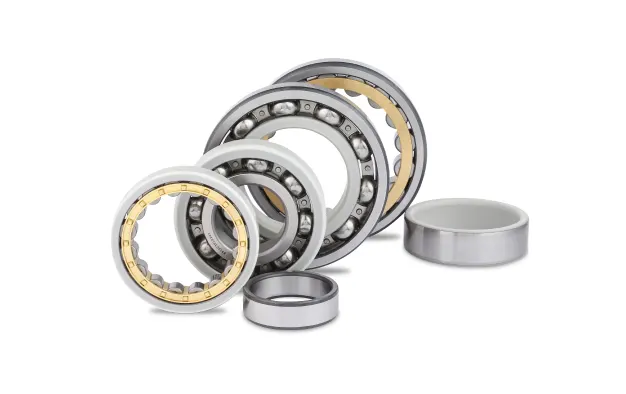

TFL Insulated Bearings

Insulation Methods

There are a few ways to keep machines safe from electricity. The most popular way is using TFL insulated bearings. These bearings have a special layer on the outside ring. This layer stops electricity from passing through. It keeps your machines safe from damage. The 6310M/C3VL0241 uses this kind of insulation. It gives strong protection and works in many machines.

Some people use shaft grounding rings instead. These rings move stray electricity away from the bearing. They help, but they do not fix every problem. Hybrid ceramic bearings are another choice. They use ceramic balls, not steel ones. Ceramic does not let electricity pass, so it insulates well. Each way has good points, but TFL insulated bearings are simple and work well.

You can pick from different types of TFL insulated bearings. There are deep groove ball bearings, cylindrical roller bearings, and thrust bearings. Each type is made for different jobs and machines. The insulated layer on TFL insulated bearings is easy to add to your machines.

Performance Comparison

TFL insulated bearings work better than most others. They have low friction and last a long time. Their simple design means less damage and fewer fixes. You save money because you do not change bearings often. Ball bearings like the 6310M/C3VL0241 fit most machines. They are cheap and simple to use.

Cylindrical roller bearings with insulation can handle misalignment well. Thrust bearings can hold heavy loads with little friction. Spring bearings stay stable when it gets hot or cold. Each type of TFL insulated bearing is best for certain jobs.

It is also important to think about how easy they are to use. TFL insulated bearings fit most machines without big changes. You do not need special tools or extra lessons. This makes them a smart pick for upgrades.

Modern systems, like ones with ResNet50, can find problems in deep groove ball bearings fast. This helps you plan repairs and stop sudden breakdowns. Quick fault finding keeps your machines safe and working.

Tip: TFL insulated bearings help you follow safety rules and keep machines running longer. You get strong protection, easy setup, and less machine downtime.

Selection and Installation Tips

Choosing the Right Bearing

You must pick the best bearing for your motor. First, check how well the insulation works. Make sure the insulation resistance and voltage resistance fit your needs. Measure your space to see what size bearing you need. The bearing must fit your equipment well. Think about how much weight the bearing will hold. Also, decide how long you want the bearing to last. Pick the right type for your job. Deep groove ball bearings are good for fast motors. Cylindrical roller bearings are better for heavy loads.

Here is a table to help you compare insulation methods and their benefits:

Tip: Always check how much care and grease the bearing needs before you choose.

Installation Best Practices

Installing your TFL insulated bearings the right way helps them last. Open the bearing package only when you are ready to use it. This keeps the bearing clean. Use the right tools like heaters or pullers. These tools help you avoid damage. Support the bearing rings all the way around. Make sure at least one ring fits tight. This stops the ring from moving and causing damage. If you need a tight fit, heat the inner ring or cool the bearing with dry ice. Keep the bearing dry so it does not rust.

• Clean every part before you start.
• Check the size and use the right tools.
• Push only on the ring you are putting in place.
• Wear safety gear and keep your area tidy.

Note: Most bearing problems happen because they were not put in right, not because the bearing is bad.

Maintenance Guidelines

You can keep your TFL insulated bearings working well with regular checks. Add grease or oil as the maker says. Use the right kind and the right amount. Keep out dust, dirt, and water with good seals. Watch the temperature and listen for odd sounds. If the motor gets hot or noisy, check the bearing soon.

Make a plan to check your bearings often. Big motors can work up to 60,000 hours if you take care of them. Less than 1% of bearings break early if you install and care for them right. Most problems come from bad alignment, not enough grease, or dirt.

• Use tools to line up the shaft and stop uneven loads.
• Look at the seals and change them if they are broken.
• Check the bearings while the machine is running and after.
• Write down all the care and repairs you do.

Tip: Good care helps your TFL insulated bearings last longer and keeps your motor safe.

You want your machines to be safe and last a long time. Insulated ball bearings 6310m/c3vl0241 help protect against electricity. They make your equipment work well, even in hard jobs. These bearings can handle fast speeds and heavy things. You can use them in many factories and other places. If you want your machines to work better, ask a supplier for help or look at ways to upgrade.

FAQ

What makes the 6310M/C3VL0241 bearing different from regular bearings?

The 6310M/C3VL0241 has a special insulating coating. This coating blocks electricity from passing through the bearing. You get better protection for your machines and less risk of electrical damage.

Can you use insulated bearings in any electric motor?

Yes, you can use insulated bearings in most electric motors. Always check the size and voltage needs of your motor. These bearings work well in motors, generators, and other high-voltage machines.

How do you know when to replace an insulated bearing?

Listen for noise or feel for vibration. If your machine gets hot or stops running smoothly, check the bearing. Regular checks help you spot problems early.

Tip: Write down when you check or replace bearings. This helps you keep track and plan ahead.

Do insulated bearings need special care?

You do not need special tools or grease. Clean the area, use the right amount of grease, and keep dirt away. Follow the maker’s instructions for best results.
