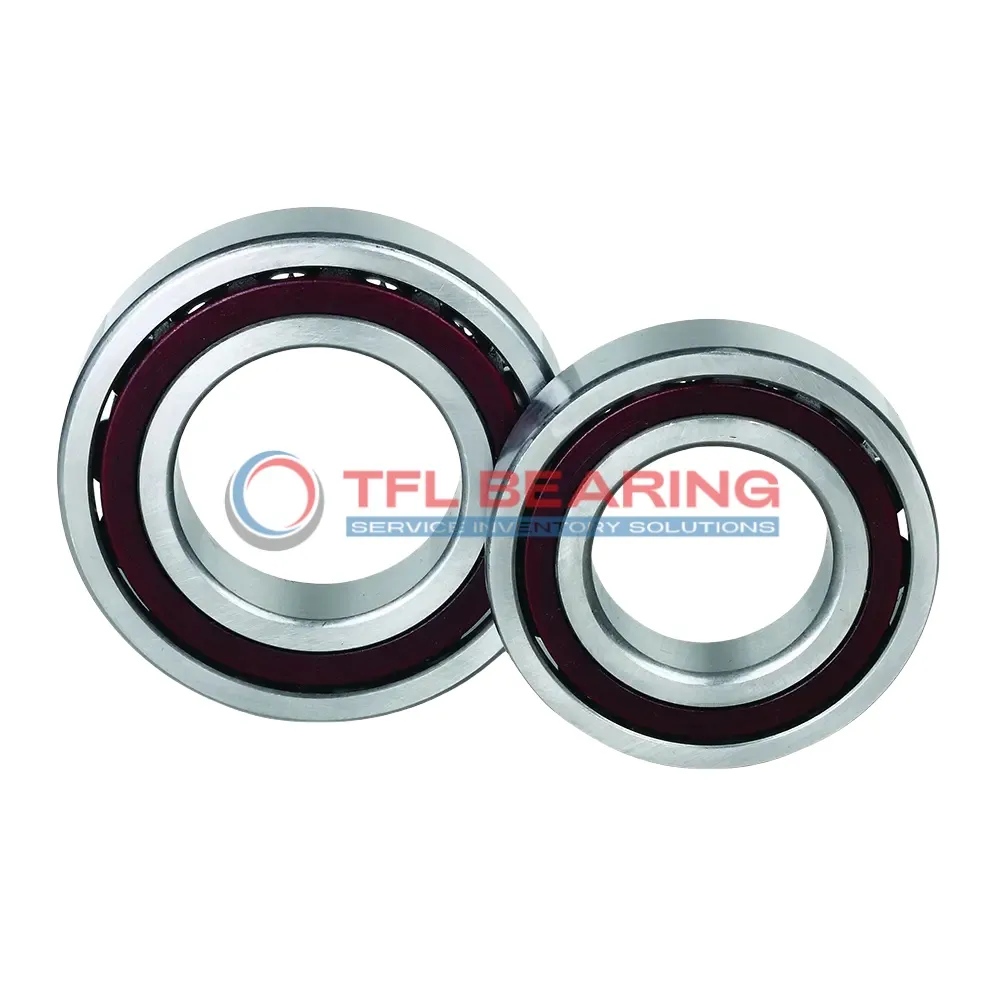

The S71930 ACD/HCP4ADGB is a super precision angular contact ball bearing, measuring 150mm by 210mm by 56mm. Made from chrome steel with ceramic balls, it offers high durability and smooth operation. Its 25° contact angle efficiently handles both radial and axial loads.
This sealed bearing comes pre-greased and can reach speeds up to 11,000 RPM. The phenolic cage ensures quiet performance, while the P4A tolerance class guarantees exceptional accuracy. It works in temperatures from -30°C to 110°C.
The universal matching design allows flexible arrangements like back-to-back or face-to-face mounting. With a dynamic radial load capacity of 40,050 lbf, it’s built for demanding applications. Ideal for high-precision machinery like CNC spindles or medical equipment.
Weighing 4.2kg, this bearing comes as a matched pair for balanced performance. It’s interchangeable with SKF bearings, making replacements straightforward. The sealed design keeps lubrication in and contaminants out.
"*" indicates required fields
Performance Features of S71930 ACD/HCP4ADGB Bearing
S71930 ACD/HCP4ADGB Bearing is crafted with chrome steel rings and ceramic balls, ensuring high precision and durability.
Its 25° contact angle allows for efficient handling of combined radial and axial loads.
The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 40050 lbf, it suits demanding applications.
S71930 ACD/HCP4ADGB Bearing operates smoothly at speeds up to 11,000 rpm.
Its sealed design and grease lubrication minimise maintenance needs.
Universal matching capability offers flexibility in mounting configurations.
The P4A tolerance class ensures consistent precision in high-speed operations.
Super Precision Angular Contact Ball Bearings S71930 ACD/HCP4ADGB are commonly used in high-speed machine spindles, where their 25° contact angle ensures accurate radial and axial load distribution. The ceramic balls reduce friction, making them ideal for precision grinding applications.
In aerospace components, S71930 ACD/HCP4ADGB Bearings provide reliable performance in gearbox systems, thanks to their universal matching design. The sealed construction also helps maintain lubrication in demanding flight conditions.
For robotics, S71930 ACD/HCP4ADGB Bearings offer smooth motion control in articulated arms, where light preload reduces vibration. Their phenolic cage adds durability in continuous operation scenarios.
Medical imaging devices benefit from S71930 ACD/HCP4ADGB Bearings’ P4A tolerance class, ensuring minimal noise during scans. The grease lubrication extends service life in sensitive environments.
In automotive testing equipment, S71930 ACD/HCP4ADGB Bearings handle high rotational speeds with stability. Their chrome steel rings withstand rigorous performance evaluations.
