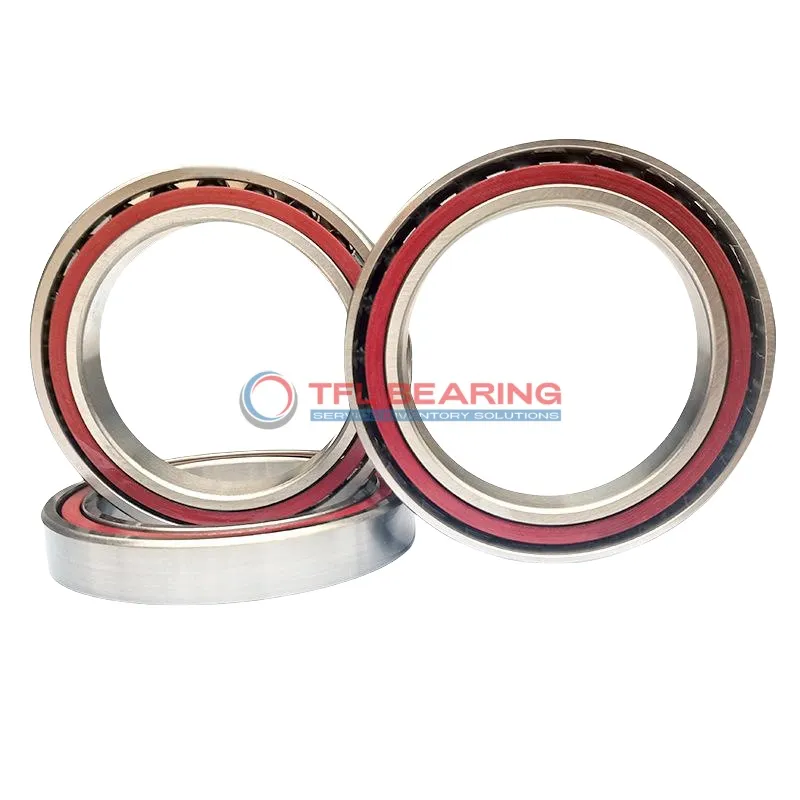

The S71912 CB/HCP4ADGA is a super precision angular contact ball bearing measuring 60mm by 85mm by 26mm, crafted from chrome steel with ceramic balls for enhanced performance. It handles radial loads up to 3780 lbf and reaches speeds of 32,500 RPM, making it suitable for high-speed applications.
Its sealed design and grease lubrication ensure low maintenance, while the phenolic cage offers durability. The bearing comes in a matched set of two, allowing universal mounting in back-to-back, face-to-face, or tandem configurations.
With a 15° contact angle and P4A tolerance class, it delivers precise operation in demanding conditions. Ideal for machine tools or spindle drives where accuracy and speed are crucial.
Weighing 0.38kg, it’s lightweight yet robust, and operates smoothly in temperatures from -30°C to 110°C. Compliant with industry standards, it’s interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Why Choose S71912 CB/HCP4ADGA Bearing for Precision Tasks?
S71912 CB/HCP4ADGA Bearing features a 15° contact angle and P4A tolerance class, ensuring high precision in angular contact applications.
The ceramic balls and phenolic cage reduce friction, enhancing smooth operation at speeds up to 32,500 rpm.
Its universal matching design allows flexible arrangements like back-to-back or face-to-face, adapting to various load requirements.
The sealed construction and grease lubrication minimise maintenance while maintaining performance.
With a dynamic radial load capacity of 3780 lbf, S71912 CB/HCP4ADGA Bearing handles demanding conditions reliably.
The chrome steel rings and ceramic balls provide durability, even in high-speed or temperature-varying environments.
Industrial Uses of S71912 CB/HCP4ADGA Bearing
S71912 CB/HCP4ADGA Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls and phenolic cage reduce friction, making it ideal for continuous operation.
How Does S71912 CB/HCP4ADGA Bearing Improve Performance?
In robotics, S71912 CB/HCP4ADGA Bearing enhances motion control with its extra light preload and universal matching, allowing smooth articulation in robotic arms. The sealed design keeps contaminants out, extending service life.
Perfect Fit for Automation: S71912 CB/HCP4ADGA Bearing
S71912 CB/HCP4ADGA Bearing works well in automated production lines, handling both radial and axial loads efficiently. Its P4A tolerance class ensures consistent performance in demanding environments.
Medical vs Industrial: Where S71912 CB/HCP4ADGA Bearing Excels
In medical imaging devices, S71912 CB/HCP4ADGA Bearing’s grease lubrication and ceramic balls provide quiet, reliable operation. For industrial pumps, its high-speed capability and durability make it a trusted choice.
