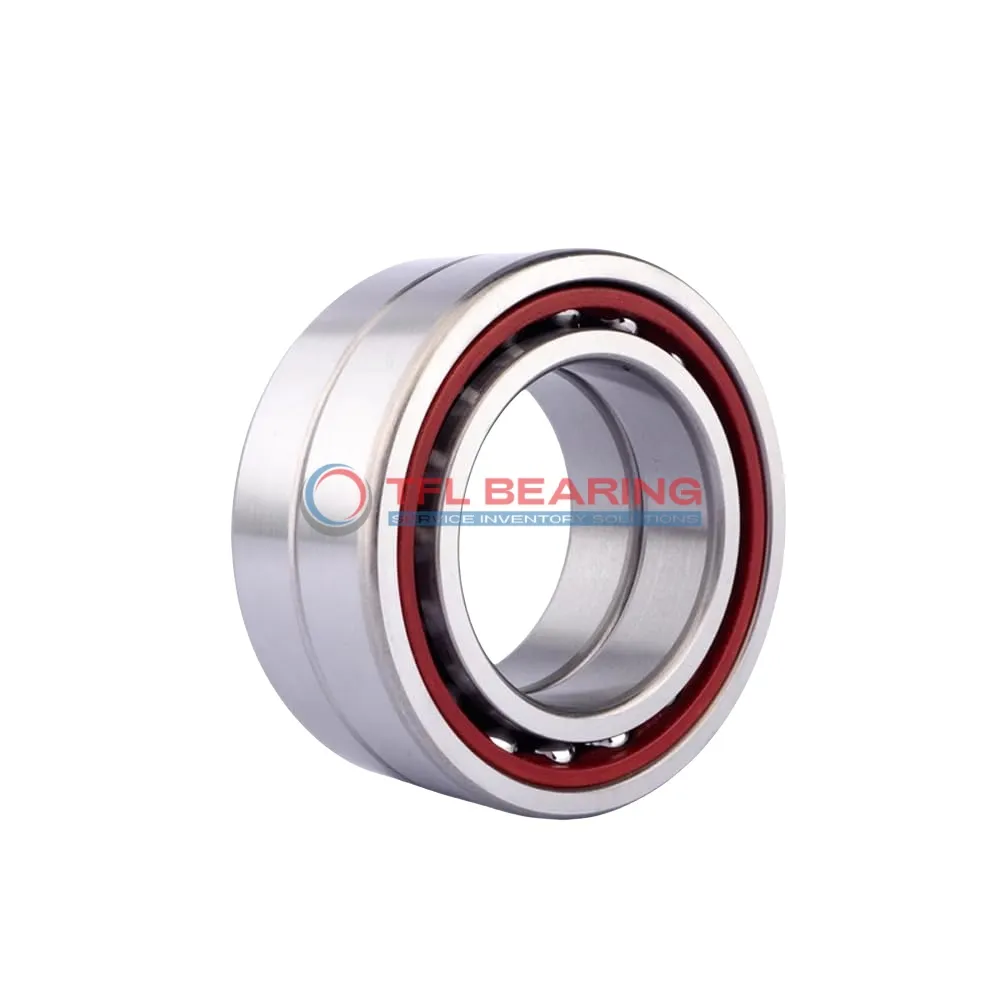

The S71909 CD/HCP4ADGA is a super precision angular contact ball bearing with a 45mm bore and 68mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.
This sealed bearing handles dynamic radial loads up to 4770 lbf and spins at speeds up to 46,000 RPM. Its phenolic cage and extra-light preload ensure quiet, efficient performance.
The universal matching design allows flexible arrangements like back-to-back or face-to-face setups. Ideal for high-speed applications like machine tool spindles or precision instruments.
Weighing 0.24kg, it operates in temperatures from -30°C to 110°C and comes pre-lubricated with grease for easy maintenance. Compliant with P4A tolerance standards for exceptional accuracy.
"*" indicates required fields
Performance Features of S71909 CD/HCP4ADGA Bearing
S71909 CD/HCP4ADGA Bearing is crafted with chrome steel rings and ceramic balls, ensuring high precision and durability.
Its 15° contact angle and universal matching design provide excellent load distribution and stability.
The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 4770 lbf, it handles demanding applications with ease.
S71909 CD/HCP4ADGA Bearing operates smoothly at speeds up to 46,000 rpm, thanks to its grease lubrication.
Its sealed design protects against contaminants, making it suitable for various environments.
The extra light preload ensures minimal friction, extending the bearing’s service life.
Its P4A tolerance class guarantees consistent performance in precision tasks.
Industrial Uses of S71909 CD/HCP4ADGA Bearing
S71909 CD/HCP4ADGA Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls and phenolic cage reduce friction, making it suitable for continuous operation.
Where Is S71909 CD/HCP4ADGA Bearing Used?
In robotics, S71909 CD/HCP4ADGA Bearing supports articulated arms, providing smooth movement and high positional accuracy. Its universal matching feature allows flexible mounting in tight spaces.
Built for Heavy-Duty Use: S71909 CD/HCP4ADGA Bearing
S71909 CD/HCP4ADGA Bearing handles radial and axial loads in industrial pumps, where its sealed design protects against contaminants. The extra light preload ensures minimal vibration during high-speed runs.
Medical vs Industrial: Where S71909 CD/HCP4ADGA Bearing Excels
S71909 CD/HCP4ADGA Bearing is ideal for medical imaging devices, offering quiet operation and reliability. In industrial settings, it excels in CNC machinery due to its high-speed capabilities and durability.
Automotive vs Aerospace: Applications of S71909 CD/HCP4ADGA Bearing
In automotive systems, S71909 CD/HCP4ADGA Bearing enhances performance in electric vehicle motors. For aerospace, its lightweight construction and precision make it suitable for flight control mechanisms.
