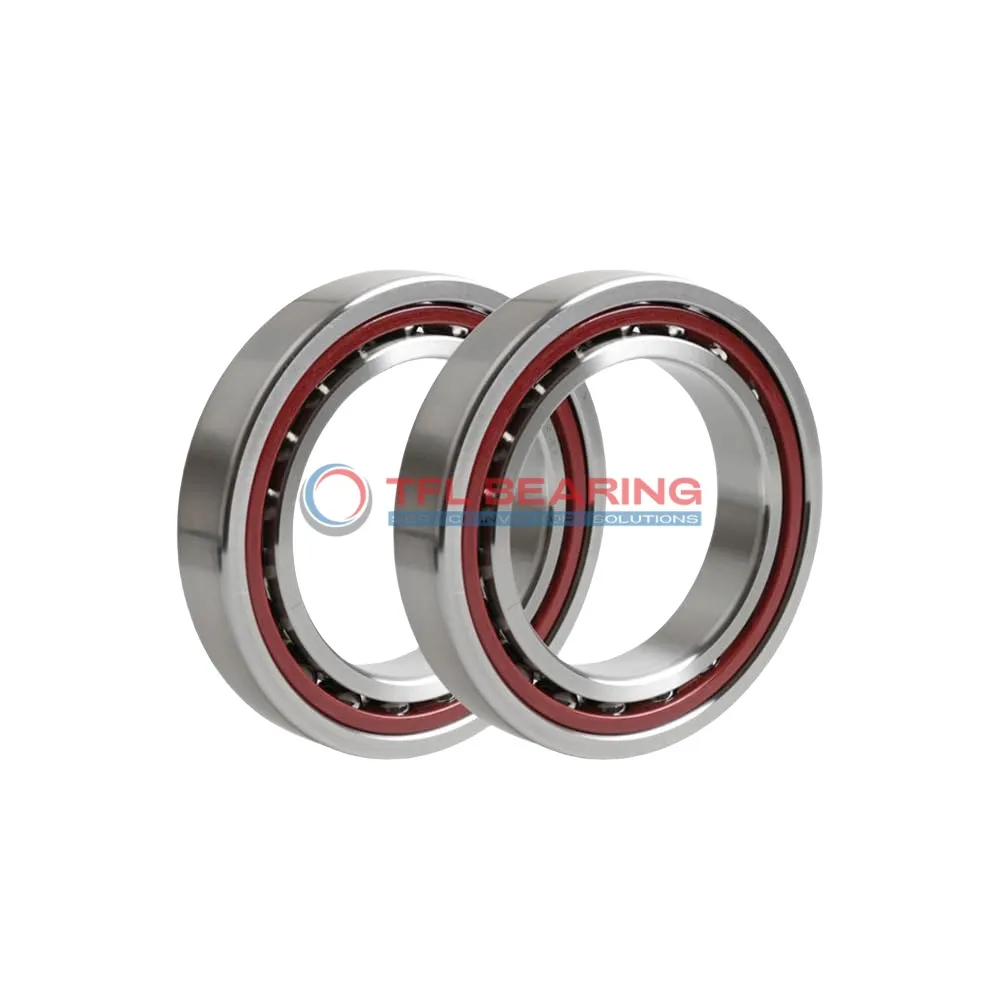

The 71910 CB/HCP4ADGA is a super precision angular contact ball bearing with a 50mm bore and 72mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.
This bearing handles radial loads up to 2812 lbf and reaches speeds of 46,000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures stability and longevity.
The open design allows for easy lubrication, while the P4A tolerance class guarantees precise performance. It comes in a matched set of two, suitable for back-to-back or face-to-face arrangements.
Ideal for precision machinery like spindles or CNC equipment, it operates in temperatures from -30°C to 110°C. Weighing just 0.25kg, it’s lightweight yet robust for demanding tasks.
"*" indicates required fields
Performance Features of 71910 CB/HCP4ADGA Bearing
71910 CB/HCP4ADGA Bearing is crafted with chrome steel rings and ceramic balls, offering high precision and durability.
The 15° contact angle ensures optimal performance for angular contact loads.
Its phenolic cage maintains ball alignment, reducing friction and enhancing longevity.
With a dynamic radial load capacity of 2812 lbf, it handles demanding applications with ease.
The bearing operates smoothly at speeds up to 46,000 rpm, thanks to its extra light preload design.
It performs reliably in temperatures ranging from -30°C to 110°C.
Universal matching allows flexible arrangement options, including back-to-back and face-to-face configurations.
This makes 71910 CB/HCP4ADGA Bearing versatile for various precision engineering needs.
Common Applications of 71910 CB/HCP4ADGA Bearing
71910 CB/HCP4ADGA Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures smooth operation. The ceramic balls reduce friction, making it ideal for applications requiring high rotational accuracy.
In robotics, 71910 CB/HCP4ADGA Bearing supports articulated arms, providing stability and durability. Its universal matching feature allows for flexible configurations in complex robotic systems.
For aerospace components, 71910 CB/HCP4ADGA Bearing offers reliable performance in navigation systems and actuators. The phenolic cage enhances its resistance to wear, even in demanding conditions.
Medical imaging devices benefit from 71910 CB/HCP4ADGA Bearing’s low friction and high precision. The chrome steel rings ensure long-lasting performance in critical healthcare equipment.
In automation systems, 71910 CB/HCP4ADGA Bearing is a trusted choice for conveyor belts and assembly lines. Its extra light preload helps maintain efficiency in continuous operation environments.
