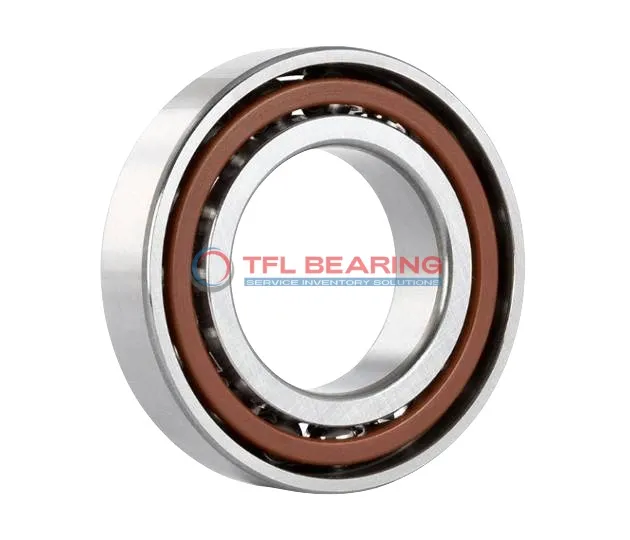

The 7011 CD/HCP4ADGB is a super precision angular contact ball bearing with a 55mm bore and 90mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.
This bearing handles radial loads up to 14332 lbf and spins at speeds up to 34000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures durability and reduces friction.
Designed for universal matching, it can be arranged back-to-back, face-to-face, or tandem. The open seal type allows for easy lubrication and maintenance.
Ideal for precision machinery like spindles or CNC equipment, it operates in temperatures from -30°C to 110°C. Weighing 0.63kg, it’s a reliable choice for demanding industrial uses.
"*" indicates required fields
Performance Features of 7011 CD/HCP4ADGB Bearing
7011 CD/HCP4ADGB Bearing is designed with a 15° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and ceramic balls ensure high precision and durability in demanding applications.
The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 14332 lbf, it excels in high-speed operations up to 34,000 rpm.
Why Choose 7011 CD/HCP4ADGB Bearing for Precision Tasks?
7011 CD/HCP4ADGB Bearing offers universal matching, allowing flexible arrangements like back-to-back or face-to-face.
Its P4A tolerance class ensures exceptional accuracy for precision machinery.
The ceramic balls and phenolic cage reduce heat generation, maintaining stability at high speeds.
With a static radial load of 14738 lbf, it provides reliable performance in critical applications.
Engineered for Precision: 7011 CD/HCP4ADGB Bearing
7011 CD/HCP4ADGB Bearing’s lightweight phenolic cage minimises inertia, improving high-speed efficiency.
Its lubricated design ensures smooth operation, reducing maintenance needs.
The bearing operates in temperatures from -30°C to 110°C, suitable for varied environments.
With 18 ceramic balls, it delivers consistent performance and extended service life.
Steel vs Ceramic Bearings: Strengths of 7011 CD/HCP4ADGB Bearing
7011 CD/HCP4ADGB Bearing combines chrome steel rings with ceramic balls for superior performance.
This mix provides excellent wear resistance and reduced friction compared to all-steel designs.
The ceramic balls also lower heat generation, enhancing speed capabilities.
Its 36 mm width and precise tolerances ensure easy integration into existing systems.
Ideal for Precision: 7011 CD/HCP4ADGB Bearing
The 7011 CD/HCP4ADGB Bearing excels in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction for smoother operation. Its universal matching design allows flexible arrangements, making it adaptable to various setups.
In robotics, 7011 CD/HCP4ADGB Bearing ensures precise movement in joints and arms, thanks to its P4A tolerance class. The light preload further enhances accuracy, which is crucial for automated tasks.
For medical imaging devices, 7011 CD/HCP4ADGB Bearing’s chrome steel rings provide durability under constant use. The open seal design simplifies maintenance, ensuring long-term reliability in critical applications.
Automotive enthusiasts appreciate 7011 CD/HCP4ADGB Bearing in performance gearboxes, where its angular contact design handles combined loads effectively. The metric dimensions make it a seamless fit for European and Asian models.
In aerospace applications, 7011 CD/HCP4ADGB Bearing’s temperature stability (-30°C to 110°C) ensures consistent performance. Its high-speed capability (34,000 rpm) makes it suitable for turbine and rotor systems.
