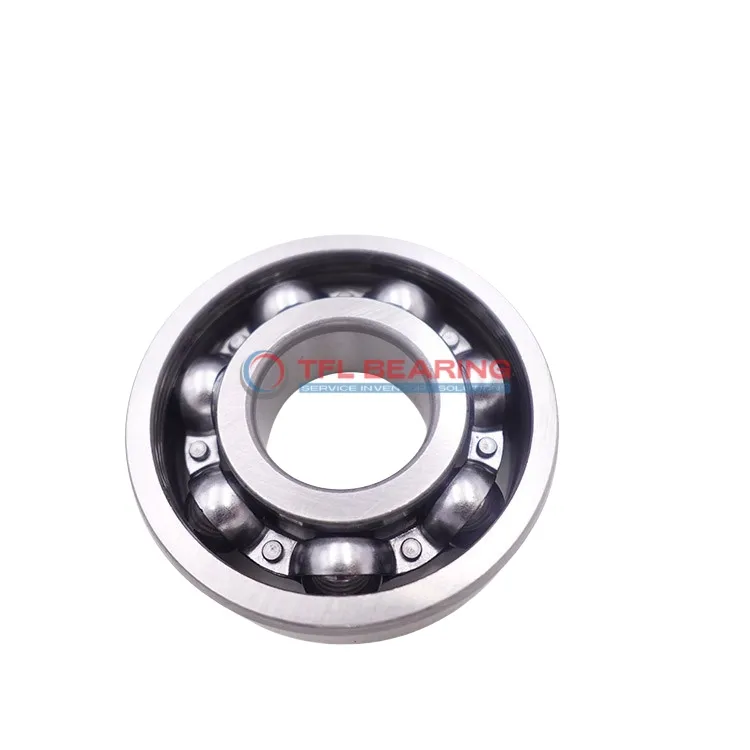

The 6416/W64 is a single-row deep groove ball bearing with an 80mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 36644 lbf and operates smoothly at speeds up to 3400 RPM.
Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial load support is needed.
Weighing 8000g, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 6416/W64 Bearing
6416/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 36644 lbf, making it suitable for demanding applications.
The solid oil lubrication ensures consistent performance, reducing the need for frequent maintenance.
With a maximum speed of 3,400 rpm, it balances durability and efficiency in operation.
6416/W64 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy inspection and maintenance, saving time and effort.
Industrial Uses of 6416/W64 Bearing
The 6416/W64 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its deep groove design handles radial loads efficiently. Its solid oil lubrication ensures long service life even in demanding conditions.
Where Is 6416/W64 Bearing Used?
You’ll often find 6416/W64 Bearing in automotive applications such as electric motors and gearboxes, thanks to its reliable performance under high radial loads. The chrome steel construction also makes it resistant to wear and tear.
Built for Heavy-Duty Use: 6416/W64 Bearing
This bearing excels in construction equipment like pumps and compressors, where its robust design handles continuous operation. The ABEC 1 tolerance ensures smooth performance without unnecessary precision costs.
Automotive vs Industrial: Applications of 6416/W64 Bearing
In automotive settings, 6416/W64 Bearing supports wheel hubs and transmissions, while in industrial settings, it’s ideal for machinery requiring consistent radial load capacity. Its wide temperature range suits diverse environments.
Perfect Fit for Automation: 6416/W64 Bearing
The 6416/W64 Bearing works well in robotic arms and automated assembly lines, where its open design allows for easy maintenance. The metric sizing ensures compatibility with standard European and Asian equipment.
