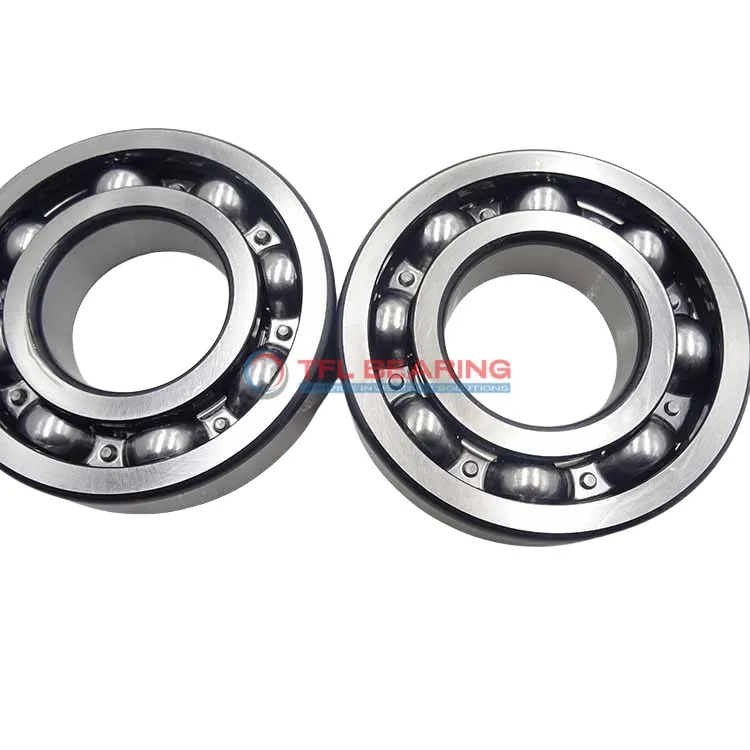

The 6336 is a single-row deep groove ball bearing with a 180mm bore and 380mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 78908 lbf and operates smoothly at speeds up to 2200 RPM.
Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.
This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.
Weighing 36.6kg, it’s built for durability and long-term use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.
"*" indicates required fields
Performance Features of 6336 Bearing
6336 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 78908 lbf, ensuring reliable performance in heavy-duty applications.
The single-row deep groove design enhances load distribution, reducing stress on the bearing components.
With a maximum speed of 2,200 rpm, it maintains efficiency while handling substantial loads.
6336 Bearing operates smoothly in temperatures ranging from -30° to 120°C, adapting to various working conditions.
Its precision P6 tolerance class ensures consistent performance and reduced vibration.
The open seal type allows for easy maintenance and inspection, simplifying upkeep.
Weighing 36.6 kg, it is designed for robust applications where durability is key.
Industrial Uses of 6336 Bearing
6336 Bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its robust design handles significant radial loads. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
What Makes 6336 Bearing a Preferred Choice?
With its chrome steel construction, 6336 Bearing offers reliable performance in high-temperature environments up to 120°C. Its P6 tolerance class ensures precision, making it suitable for applications requiring minimal vibration.
Built for Heavy-Duty Use: 6336 Bearing
In conveyor systems, 6336 Bearing provides smooth operation under continuous radial loads. The large bore diameter of 180 mm makes it ideal for heavy-duty shafts in mining and construction equipment.
Automotive vs Aerospace: Applications of 6336 Bearing
While 6336 Bearing is found in automotive gearboxes for its load capacity, it also suits aerospace applications where precision and durability are key. Its metric sizing ensures compatibility with international standards.
Perfect Fit for Automation: 6336 Bearing
6336 Bearing works well in automated production lines, supporting robotic arms and assembly systems. The static radial load capacity of 91048 lbf ensures stability in repetitive motion tasks.
