Single Row Deep Groove Ball Bearings 6321 M/C3VL0241
Single Row Deep Groove Ball Bearings 6321 M/C3VL0241

Single Row Deep Groove Ball Bearings 6321 M/C3VL0241

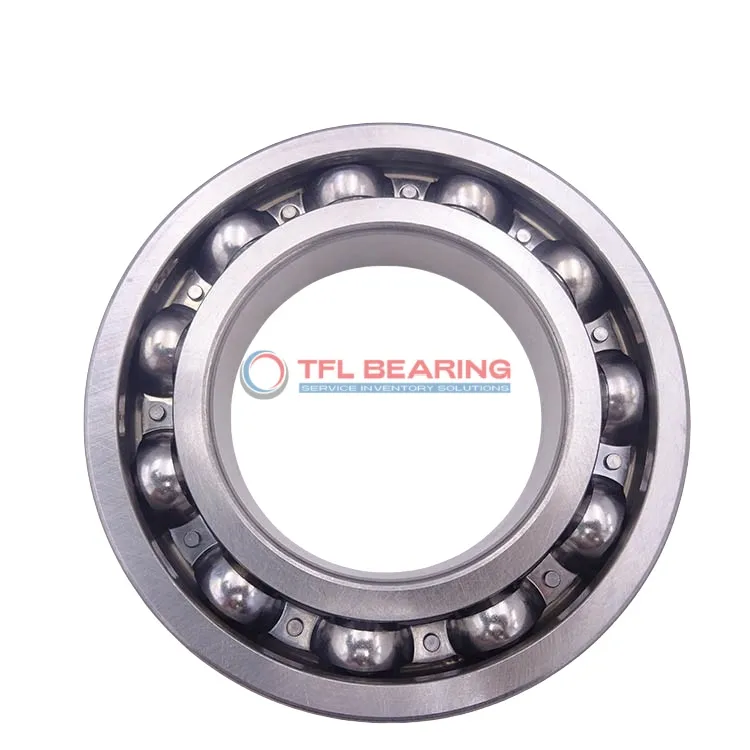

The 6321 M/C3VL0241 is a single-row deep groove ball bearing with a 105mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 41365 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or pumps where radial loads are common.

Weighing 8090g, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6321 M/C3VL0241
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 105 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 49 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 41365 lbf
  • Static Radial Load 34396 lbf
  • Max Speed 2600 rpm
  • Weight 8090 g
  • price($) 696.555

Features

Performance Features of 6321 M/C3VL0241 Bearing

6321 M/C3VL0241 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 41365 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, reducing friction and wear.
With a C3 radial clearance, it accommodates thermal expansion in various operating conditions.

6321 M/C3VL0241 Bearing operates efficiently within a temperature range of -30° to 120°C.
Its open design allows for easy lubrication, enhancing performance and longevity.

The ABEC 1 tolerance class ensures reliable operation for general industrial use.
At 2,600 rpm maximum speed, it balances performance and durability.

Application

Industrial Uses of 6321 M/C3VL0241 Bearing
This bearing is commonly used in heavy machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 6321 M/C3VL0241 Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. The C3 clearance ensures smooth performance even under varying temperatures and loads.

For automation systems, 6321 M/C3VL0241 Bearing provides reliable support in conveyor belts and robotic arms. Its machined metal cage offers added durability, making it suitable for continuous operation in industrial settings.

What Makes 6321 M/C3VL0241 Bearing a Preferred Choice?
Its metric sizing and compatibility with SKF models make it a versatile option for European and Asian equipment. The ABEC 1 tolerance ensures consistent performance without unnecessary precision costs.

Built for Heavy-Duty Use: 6321 M/C3VL0241 Bearing
The high dynamic radial load capacity makes it ideal for construction equipment like cranes and bulldozers. Operating smoothly from -30°C to 120°C, it adapts well to harsh environments.
