Single Row Deep Groove Ball Bearings 6228 MA/C3
Single Row Deep Groove Ball Bearings 6228 MA/C3

Single Row Deep Groove Ball Bearings 6228 MA/C3

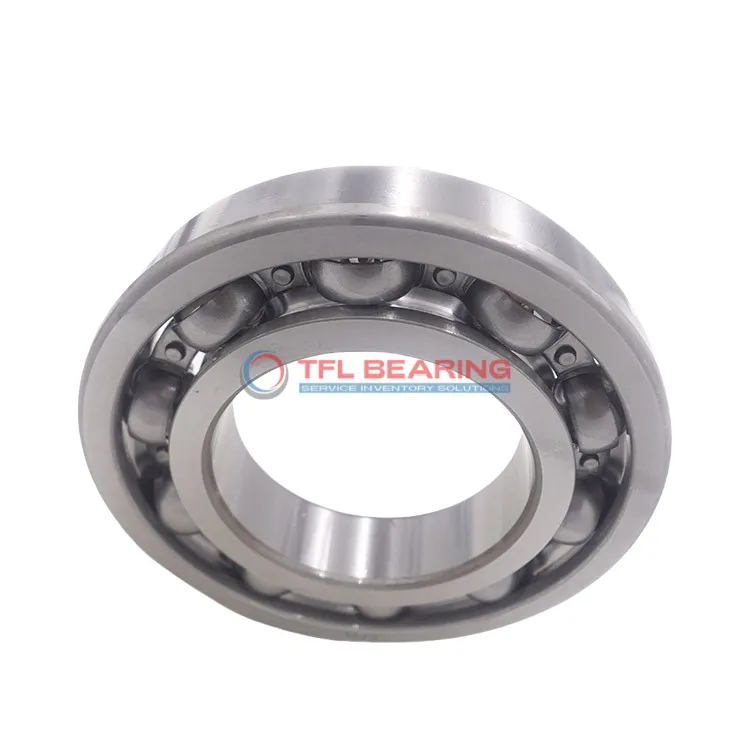

The 6228 MA/C3 is a single-row deep groove ball bearing with a 140mm bore and 250mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 37093 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial motors or machinery where radial loads are prevalent.

Weighing 7770g, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety and environmental responsibility.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6228 MA/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 42 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 37093 lbf
  • Static Radial Load 33721 lbf
  • Max Speed 3400 rpm
  • Weight 7770 g
  • price($) 210.168

Features

Performance Features of 6228 MA/C3 Bearing

6228 MA/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.

Its dynamic radial load capacity reaches 37093 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures smooth operation and reduces wear, enhancing longevity.

With a maximum speed of 3,400 rpm, it delivers reliable performance in various conditions.

Application

Common Applications of 6228 MA/C3 Bearing
In industrial settings, 6228 MA/C3 Bearing is commonly used in heavy machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

Where Is 6228 MA/C3 Bearing Used?
You’ll often find 6228 MA/C3 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its C3 clearance ensures reliable performance even under varying thermal conditions.

Built for Heavy-Duty Use: 6228 MA/C3 Bearing
This bearing excels in construction equipment, where its machined metal cage provides stability under high loads. The wide temperature range makes it suitable for both indoor and outdoor machinery.

Light-Duty vs Heavy-Duty: Best Uses for 6228 MA/C3 Bearing
For light-duty tasks like conveyor systems, 6228 MA/C3 Bearing offers smooth operation with minimal maintenance. In heavy-duty scenarios like mining equipment, its dynamic load capacity ensures long-term reliability.

Perfect Fit for Automation: 6228 MA/C3 Bearing
In robotic arms and automated assembly lines, 6228 MA/C3 Bearing’s precision and low friction reduce wear. The metric dimensions make it easy to integrate into European and Asian machinery designs.
