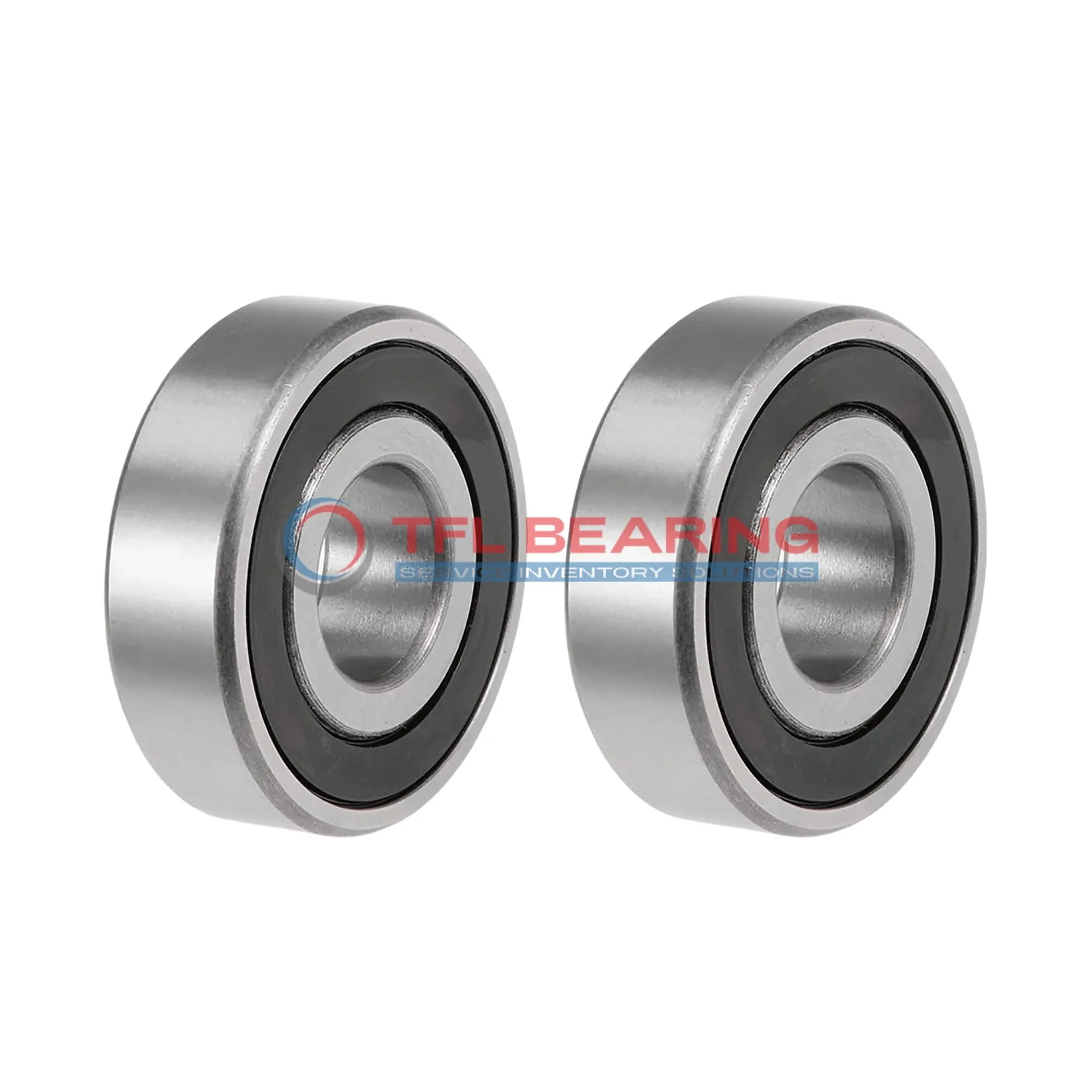

Single Row Deep Groove Ball Bearings 6217-2RS1/W64
Single Row Deep Groove Ball Bearings 6217-2RS1/W64

Single Row Deep Groove Ball Bearings 6217-2RS1/W64

The 6217-2RS1/W64 is a single-row deep groove ball bearing with an 85mm bore and 150mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 18884 lbf and runs smoothly at speeds up to 4300 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a long-lasting choice.

This bearing suits radial load applications like electric motors or pumps, especially where contamination is a concern. It performs reliably in temperatures from -30°C to 120°C.

Weighing 1740g, it’s robust for industrial use. Compliant with RoHS and REACH standards, it’s a safe and interchangeable option with SKF bearings.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6217-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18884 lbf
  • Static Radial Load 13916 lbf
  • Max Speed 4300 rpm
  • Weight 1740 g

Features

Performance Features of 6217-2RS1/W64 Bearing

6217-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 18,884 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs, making it suitable for long-term use.
With a maximum speed of 4,300 rpm, it balances efficiency and durability.

6217-2RS1/W64 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its robust construction ensures a long service life, even under continuous radial loads.

Application

Industrial Uses of 6217-2RS1/W64 Bearing
6217-2RS1/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures long service life even in demanding environments.

Where Is 6217-2RS1/W64 Bearing Used?
You’ll often find 6217-2RS1/W64 Bearing in automotive applications such as wheel hubs and alternators, thanks to its reliable radial load handling. Its chrome steel construction makes it durable under high-speed conditions.

Perfect Fit for Automation: 6217-2RS1/W64 Bearing
In automated systems, 6217-2RS1/W64 Bearing works well in conveyor belts and robotic arms, where smooth operation is key. The ABEC 1 tolerance ensures consistent performance without unnecessary precision costs.

Medical vs Industrial: Where 6217-2RS1/W64 Bearing Excels
While 6217-2RS1/W64 Bearing suits industrial gearboxes, it’s also handy in medical devices like centrifuges due to its low maintenance needs. The temperature range of -30° to 120°C adds versatility.

Key Fields for 6217-2RS1/W64 Bearing
For household appliances like washing machines, 6217-2RS1/W64 Bearing offers quiet and efficient performance. The sealed design prevents grease leakage, keeping things clean over time.
