Single Row Deep Groove Ball Bearings 61840
Single Row Deep Groove Ball Bearings 61840

Single Row Deep Groove Ball Bearings 61840

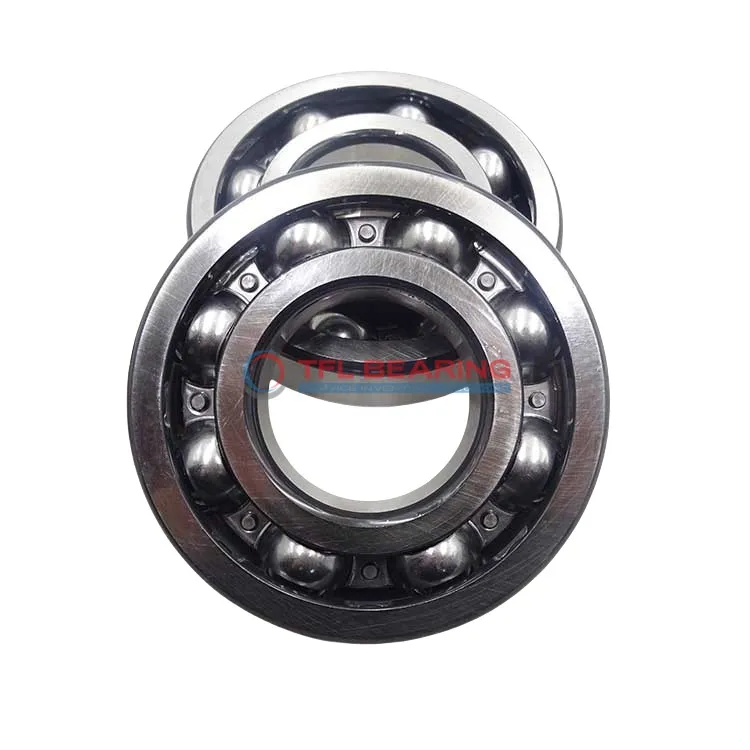

The 61840 is a single-row deep groove ball bearing with a 200mm bore and 250mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17108 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for machinery with radial loads, such as electric motors or pumps.

Weighing 2.34kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 61840
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 24 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 17108 lbf
  • Static Radial Load 22931 lbf
  • Max Speed 3200 rpm
  • Weight 2.34 kg

Features

Performance Features of 61840 Bearing

61840 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load rating of 17108 lbf ensures reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 3,200 rpm, it balances efficiency and durability.

61840 Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its P6 tolerance class provides precise performance for demanding tasks.

The open design simplifies maintenance while the CN radial clearance ensures smooth operation.
This bearing is ideal for applications requiring high radial load capacity and precision.

Application

Industrial Uses of 61840 Bearing
61840 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 61840 Bearing Used?
You’ll find 61840 Bearing in automotive applications such as electric motors and gearboxes, where its high load capacity and smooth operation are key. Its metric sizing makes it a versatile choice for various vehicle designs.

Perfect Fit for Automation: 61840 Bearing
In robotic arms and automated production lines, 61840 Bearing offers reliable performance with its stainless steel cage and precise tolerances. It’s a solid pick for high-speed operations.

Medical vs Industrial: Where 61840 Bearing Excels
While 61840 Bearing suits industrial gear like pumps, it’s also handy in medical devices requiring quiet, consistent movement. The temperature range makes it adaptable to different settings.

Consumer Electronics and 61840 Bearing
For home appliances like washing machines, 61840 Bearing provides long-lasting performance. Its open design simplifies maintenance, and the radial load capacity handles everyday use well.
